Cam action indexing plunger with stop

03099-20

Cam action indexing plunger with stop

Products
- Product overview
  - Flexible standard component system
    - Spring plungers Indexing plungers Stops Centring/positioning components Ball lock pins T-slot nuts
      - Indexing plungers
        Cam action indexing plunger with stop

Item description/product images

Show/filter all items

DescriptionMaterial:Steel grade 5.8.Version:Black oxidised.
Pin hardened and ground.Note:Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.
A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted.
Selecting which side the stop is on defines the rotation direction of the plunger.Drawing reference:

Form A: grip uncoated without nut
Form C: grip powder-coated without nut
Form B: grip uncoated with nut
Form D: grip powder-coated with nut

1) stop left
2) stop right

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-20 Cam action indexing plunger with stop

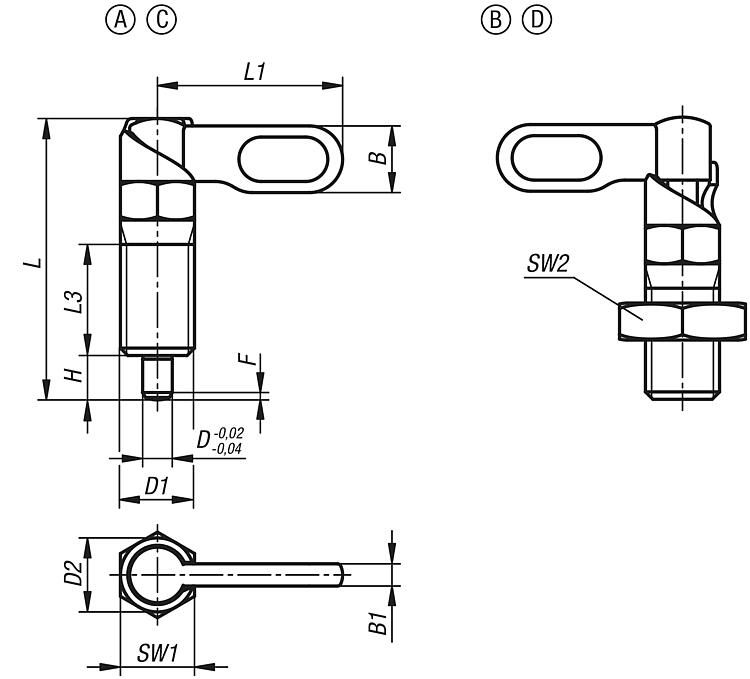

Drawings (total overview)

Cam action indexing plunger with stop

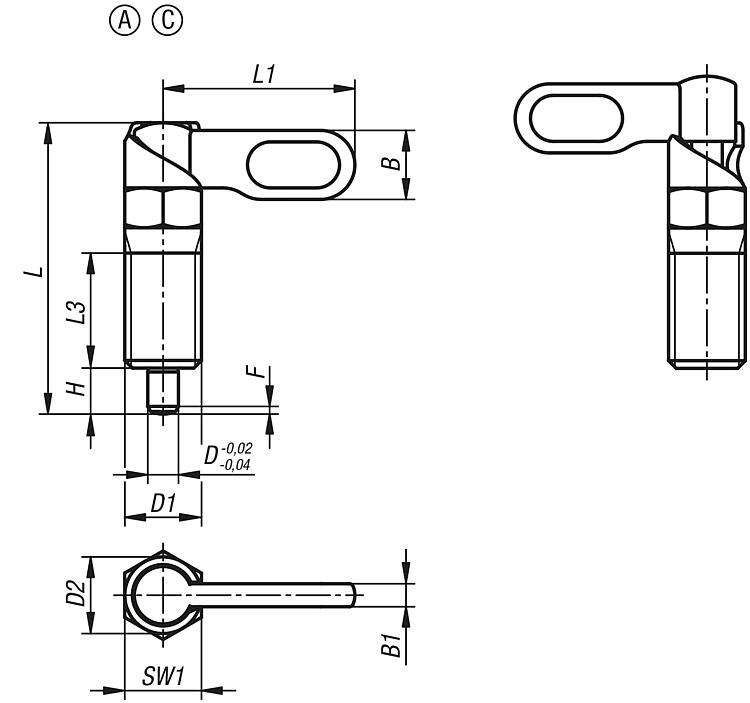

Cam action indexing plunger with stop, Form A and C

More information

Drawings

Cam action indexing plunger with stop, Form A and C

Item selection/filter

	A C	left right	4 5 6 8 10 12	M10 M12 M16 M20x1,5	10 12 16 20	38 47,8 60,4 70	25 30 40 50	15 19 26 30	9 10,8 14,4 18	3 3,6 4,8 6	6 8 10 12	10 12 16 20	1 1,3 1,8 2,3 2,8 3	8 15 20	14 15 35 60				Reset
Order No.	Form	Version 2	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-20-1040410	A	left	4	M10	10	38	25	15	9	3	6	10	1	8	14			on request
03099-20-1040510	A	left	5	M10	10	38	25	15	9	3	6	10	1,3	8	14			on request
03099-20-1040610	A	left	6	M10	10	38	25	15	9	3	6	10	1,8	8	14			on request
03099-20-1040512	A	left	5	M12	12	47,8	30	19	10,8	3,6	8	12	1,3	8	15			on request
03099-20-1040612	A	left	6	M12	12	47,8	30	19	10,8	3,6	8	12	1,8	8	15			on request
03099-20-1040812	A	left	8	M12	12	47,8	30	19	10,8	3,6	8	12	2,3	8	15			on request
03099-20-1040616	A	left	6	M16	16	60,4	40	26	14,4	4,8	10	16	1,8	15	35			on request
03099-20-1040816	A	left	8	M16	16	60,4	40	26	14,4	4,8	10	16	2,3	15	35			on request
03099-20-1041016	A	left	10	M16	16	60,4	40	26	14,4	4,8	10	16	2,8	15	35			on request
03099-20-10408201	A	left	8	M20x1,5	20	70	50	30	18	6	12	20	2,3	20	60			on request
03099-20-10410201	A	left	10	M20x1,5	20	70	50	30	18	6	12	20	2,8	20	60			on request
03099-20-10412201	A	left	12	M20x1,5	20	70	50	30	18	6	12	20	3	20	60			on request
03099-20-1060410	C	left	4	M10	10	38	25	15	9	3	6	10	1	8	14			on request
03099-20-1060510	C	left	5	M10	10	38	25	15	9	3	6	10	1,3	8	14			on request
03099-20-1060610	C	left	6	M10	10	38	25	15	9	3	6	10	1,8	8	14			on request
03099-20-1060512	C	left	5	M12	12	47,8	30	19	10,8	3,6	8	12	1,3	8	15			on request
03099-20-1060612	C	left	6	M12	12	47,8	30	19	10,8	3,6	8	12	1,8	8	15			on request
03099-20-1060812	C	left	8	M12	12	47,8	30	19	10,8	3,6	8	12	2,3	8	15			on request
03099-20-1060616	C	left	6	M16	16	60,4	40	26	14,4	4,8	10	16	1,8	15	35			on request
03099-20-1060816	C	left	8	M16	16	60,4	40	26	14,4	4,8	10	16	2,3	15	35			on request
03099-20-1061016	C	left	10	M16	16	60,4	40	26	14,4	4,8	10	16	2,8	15	35			on request
03099-20-10608201	C	left	8	M20x1,5	20	70	50	30	18	6	12	20	2,3	20	60			on request
03099-20-10610201	C	left	10	M20x1,5	20	70	50	30	18	6	12	20	2,8	20	60			on request
03099-20-10612201	C	left	12	M20x1,5	20	70	50	30	18	6	12	20	3	20	60			on request
03099-20-2040410	A	right	4	M10	10	38	25	15	9	3	6	10	1	8	14			on request
03099-20-2040510	A	right	5	M10	10	38	25	15	9	3	6	10	1,3	8	14			on request
03099-20-2040610	A	right	6	M10	10	38	25	15	9	3	6	10	1,8	8	14			on request
03099-20-2040512	A	right	5	M12	12	47,8	30	19	10,8	3,6	8	12	1,3	8	15			on request
03099-20-2040612	A	right	6	M12	12	47,8	30	19	10,8	3,6	8	12	1,8	8	15			on request
03099-20-2040812	A	right	8	M12	12	47,8	30	19	10,8	3,6	8	12	2,3	8	15			on request
03099-20-2040616	A	right	6	M16	16	60,4	40	26	14,4	4,8	10	16	1,8	15	35			on request
03099-20-2040816	A	right	8	M16	16	60,4	40	26	14,4	4,8	10	16	2,3	15	35			on request
03099-20-2041016	A	right	10	M16	16	60,4	40	26	14,4	4,8	10	16	2,8	15	35			on request
03099-20-20408201	A	right	8	M20x1,5	20	70	50	30	18	6	12	20	2,3	20	60			on request
03099-20-20410201	A	right	10	M20x1,5	20	70	50	30	18	6	12	20	2,8	20	60			on request
03099-20-20412201	A	right	12	M20x1,5	20	70	50	30	18	6	12	20	3	20	60			on request
03099-20-2060410	C	right	4	M10	10	38	25	15	9	3	6	10	1	8	14			on request
03099-20-2060510	C	right	5	M10	10	38	25	15	9	3	6	10	1,3	8	14			on request
03099-20-2060610	C	right	6	M10	10	38	25	15	9	3	6	10	1,8	8	14			on request
03099-20-2060512	C	right	5	M12	12	47,8	30	19	10,8	3,6	8	12	1,3	8	15			on request
03099-20-2060612	C	right	6	M12	12	47,8	30	19	10,8	3,6	8	12	1,8	8	15			on request
03099-20-2060812	C	right	8	M12	12	47,8	30	19	10,8	3,6	8	12	2,3	8	15			on request
03099-20-2060616	C	right	6	M16	16	60,4	40	26	14,4	4,8	10	16	1,8	15	35			on request
03099-20-2060816	C	right	8	M16	16	60,4	40	26	14,4	4,8	10	16	2,3	15	35			on request
03099-20-2061016	C	right	10	M16	16	60,4	40	26	14,4	4,8	10	16	2,8	15	35			on request
03099-20-20608201	C	right	8	M20x1,5	20	70	50	30	18	6	12	20	2,3	20	60			on request
03099-20-20610201	C	right	10	M20x1,5	20	70	50	30	18	6	12	20	2,8	20	60			on request
03099-20-20612201	C	right	12	M20x1,5	20	70	50	30	18	6	12	20	3	20	60			on request

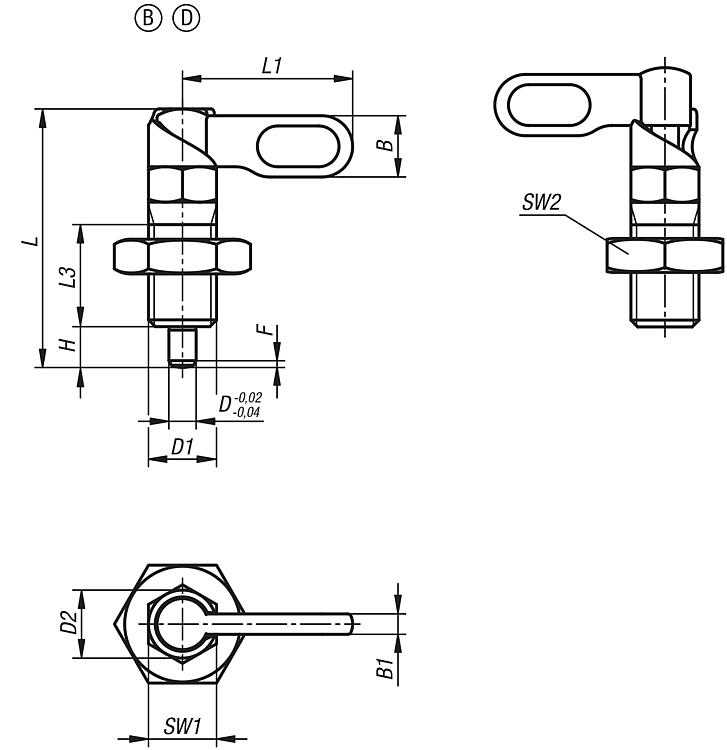

Cam action indexing plunger with stop, Form B and D

More information

Drawings

Cam action indexing plunger with stop, Form B and D

Item selection/filter

	B D	left right	4 5 6 8 10 12	M10 M12 M16 M20x1,5	10 12 16 20	38 47,8 60,4 70	25 30 40 50	15 19 26 30	9 10,8 14,4 18	3 3,6 4,8 6	6 8 10 12	10 12 16 20	17 19 24 30	1 1,3 1,8 2,3 2,8 3	8 15 20	14 15 35 60				Reset
Order No.	Form	Version 2	D	D1	D2	L	L1	L3	B	B1	H	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03099-20-1050410	B	left	4	M10	10	38	25	15	9	3	6	10	17	1	8	14			on request
03099-20-1050510	B	left	5	M10	10	38	25	15	9	3	6	10	17	1,3	8	14			on request
03099-20-1050610	B	left	6	M10	10	38	25	15	9	3	6	10	17	1,8	8	14			on request
03099-20-1050512	B	left	5	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,3	8	15			on request
03099-20-1050612	B	left	6	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,8	8	15			on request
03099-20-1050812	B	left	8	M12	12	47,8	30	19	10,8	3,6	8	12	19	2,3	8	15			on request
03099-20-1050616	B	left	6	M16	16	60,4	40	26	14,4	4,8	10	16	24	1,8	15	35			on request
03099-20-1050816	B	left	8	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,3	15	35			on request
03099-20-1051016	B	left	10	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,8	15	35			on request
03099-20-10508201	B	left	8	M20x1,5	20	70	50	30	18	6	12	20	30	2,3	20	60			on request
03099-20-10510201	B	left	10	M20x1,5	20	70	50	30	18	6	12	20	30	2,8	20	60			on request
03099-20-10512201	B	left	12	M20x1,5	20	70	50	30	18	6	12	20	30	3	20	60			on request
03099-20-1070410	D	left	4	M10	10	38	25	15	9	3	6	10	17	1	8	14			on request
03099-20-1070510	D	left	5	M10	10	38	25	15	9	3	6	10	17	1,3	8	14			on request
03099-20-1070610	D	left	6	M10	10	38	25	15	9	3	6	10	17	1,8	8	14			on request
03099-20-1070512	D	left	5	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,3	8	15			on request
03099-20-1070612	D	left	6	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,8	8	15			on request
03099-20-1070812	D	left	8	M12	12	47,8	30	19	10,8	3,6	8	12	19	2,3	8	15			on request
03099-20-1070616	D	left	6	M16	16	60,4	40	26	14,4	4,8	10	16	24	1,8	15	35			on request
03099-20-1070816	D	left	8	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,3	15	35			on request
03099-20-1071016	D	left	10	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,8	15	35			on request
03099-20-10708201	D	left	8	M20x1,5	20	70	50	30	18	6	12	20	30	2,3	20	60			on request
03099-20-10710201	D	left	10	M20x1,5	20	70	50	30	18	6	12	20	30	2,8	20	60			on request
03099-20-10712201	D	left	12	M20x1,5	20	70	50	30	18	6	12	20	30	3	20	60			on request
03099-20-2050410	B	right	4	M10	10	38	25	15	9	3	6	10	17	1	8	14			on request
03099-20-2050510	B	right	5	M10	10	38	25	15	9	3	6	10	17	1,3	8	14			on request
03099-20-2050610	B	right	6	M10	10	38	25	15	9	3	6	10	17	1,8	8	14			on request
03099-20-2050512	B	right	5	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,3	8	15			on request
03099-20-2050612	B	right	6	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,8	8	15			on request
03099-20-2050812	B	right	8	M12	12	47,8	30	19	10,8	3,6	8	12	19	2,3	8	15			on request
03099-20-2050616	B	right	6	M16	16	60,4	40	26	14,4	4,8	10	16	24	1,8	15	35			on request
03099-20-2050816	B	right	8	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,3	15	35			on request
03099-20-2051016	B	right	10	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,8	15	35			on request
03099-20-20508201	B	right	8	M20x1,5	20	70	50	30	18	6	12	20	30	2,3	20	60			on request
03099-20-20510201	B	right	10	M20x1,5	20	70	50	30	18	6	12	20	30	2,8	20	60			on request
03099-20-20512201	B	right	12	M20x1,5	20	70	50	30	18	6	12	20	30	3	20	60			on request
03099-20-2070410	D	right	4	M10	10	38	25	15	9	3	6	10	17	1	8	14			on request
03099-20-2070510	D	right	5	M10	10	38	25	15	9	3	6	10	17	1,3	8	14			on request
03099-20-2070610	D	right	6	M10	10	38	25	15	9	3	6	10	17	1,8	8	14			on request
03099-20-2070512	D	right	5	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,3	8	15			on request
03099-20-2070612	D	right	6	M12	12	47,8	30	19	10,8	3,6	8	12	19	1,8	8	15			on request
03099-20-2070812	D	right	8	M12	12	47,8	30	19	10,8	3,6	8	12	19	2,3	8	15			on request
03099-20-2070616	D	right	6	M16	16	60,4	40	26	14,4	4,8	10	16	24	1,8	15	35			on request
03099-20-2070816	D	right	8	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,3	15	35			on request
03099-20-2071016	D	right	10	M16	16	60,4	40	26	14,4	4,8	10	16	24	2,8	15	35			on request
03099-20-20708201	D	right	8	M20x1,5	20	70	50	30	18	6	12	20	30	2,3	20	60			on request
03099-20-20710201	D	right	10	M20x1,5	20	70	50	30	18	6	12	20	30	2,8	20	60			on request
03099-20-20712201	D	right	12	M20x1,5	20	70	50	30	18	6	12	20	30	3	20	60			on request
