        Lateral spring plungers without thrust pin

Item description/product images

Show/filter all items

DescriptionMaterial:Sleeve aluminium.
Receiving washer steel.
Spring steel.Version:Sleeve blue electro zinc-plated.
Washer, hardened and burnished.Note:The thrust pin can be made to suit the required circumstances and screwed into the tapped hole in the locating washer.
The required lateral thrust (F) can be achieved through the stroke (S) and length (L1).

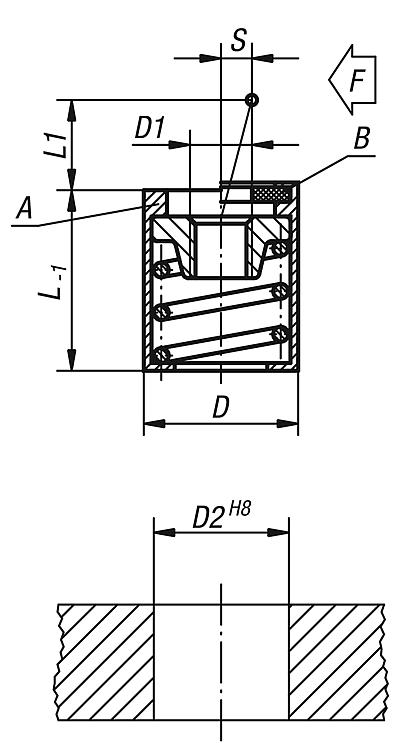

Form B has a seal to keep swarf and dirt out.Drawing reference:

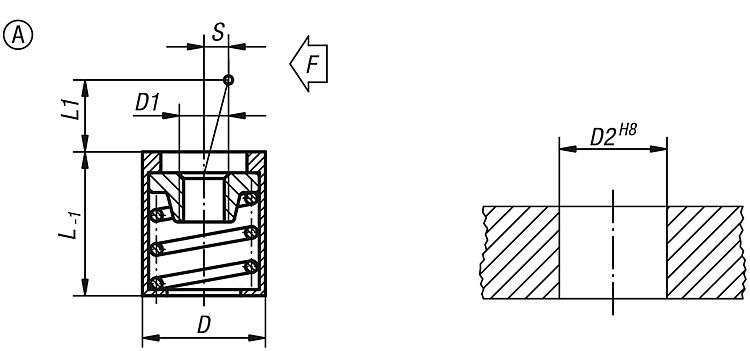

Form A: without seal

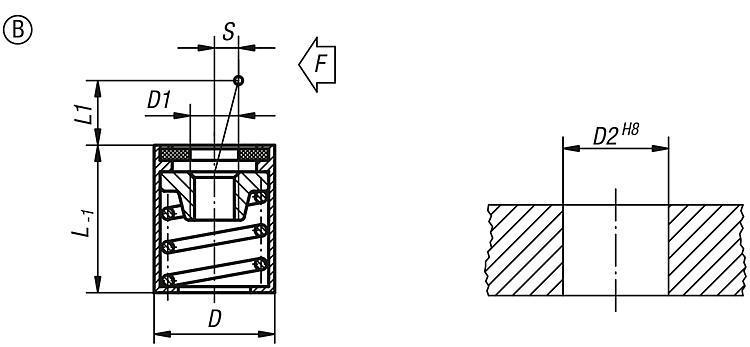

Form B: with seal

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03332 Lateral spring plungers without thrust pin

139 kB

Drawings (total overview)

Lateral spring plungers without thrust pin, Form A, without seal

More information

Drawings

Lateral spring plungers without thrust pin, Form A, without seal

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S	F ca.N	Price
03332-31054	A	10	M4	10	12	4	1,6	20	on request
03332-31056	A	10	M4	10	12	4	1,6	50	on request
03332-31058	A	10	M4	10	12	4	1,6	100	on request
03332-31064	A	10	M4	10	12	7,5	2	40	on request
03332-31066	A	10	M4	10	12	7,5	2	75	on request
03332-31068	A	10	M4	10	12	7,5	2	100	on request
03332-31104	A	16	M6	16	18	11,5	3,2	100	on request
03332-31106	A	16	M6	16	18	11,5	3,2	150	on request
03332-31108	A	16	M6	16	18	11,5	3,2	200	on request

Lateral spring plungers without thrust pin, Form B, with seal

More information

Drawings

Lateral spring plungers without thrust pin, Form B, with seal

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S	F ca.N	Price
03332-32054	B	10	M4	10	12	4	1,6	20	on request
03332-32056	B	10	M4	10	12	4	1,6	50	on request
03332-32058	B	10	M4	10	12	4	1,6	100	on request
03332-32064	B	10	M4	10	12	7,5	2	40	on request
03332-32066	B	10	M4	10	12	7,5	2	75	on request
03332-32068	B	10	M4	10	12	7,5	2	100	on request
03332-32104	B	16	M6	16	18	11,5	3,2	100	on request
03332-32106	B	16	M6	16	18	11,5	3,2	150	on request
03332-32108	B	16	M6	16	18	11,5	3,2	200	on request
