        Lateral spring plungers, steel, with plastic, steel or stainless steel ball

Item description/product images

Show/filter all items

DescriptionMaterial:Body mild steel.
Ball steel or stainless steel hardened or POM.
Spring stainless steel or plastic.Version:Body black oxidised.

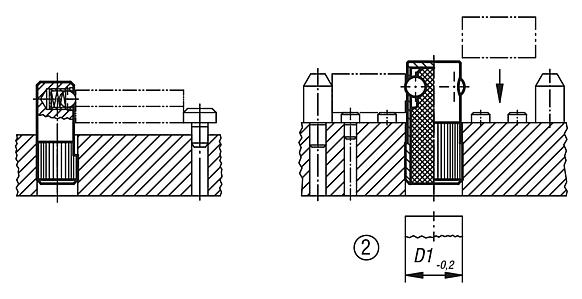

Ball bright.Note:The lateral spring plunger must be pressed into the hole to at least depth L3. These plungers are for positioning and holding small parts in fixtures. If mechanical machining of the workpiece is to be carried out, other clamps may be necessary. When the fixture is not in use it should be ensured that plastic springs are not under stress.

Spring force refers to a mean value.Drawing reference:

1) knurl
2) light holding

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03340 Lateral spring plungers

263 kB

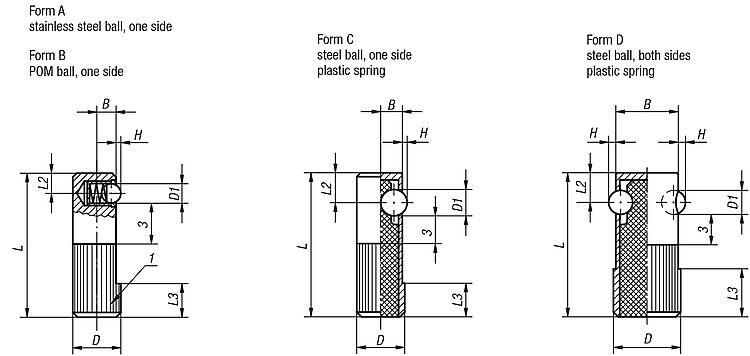

Drawings (total overview)

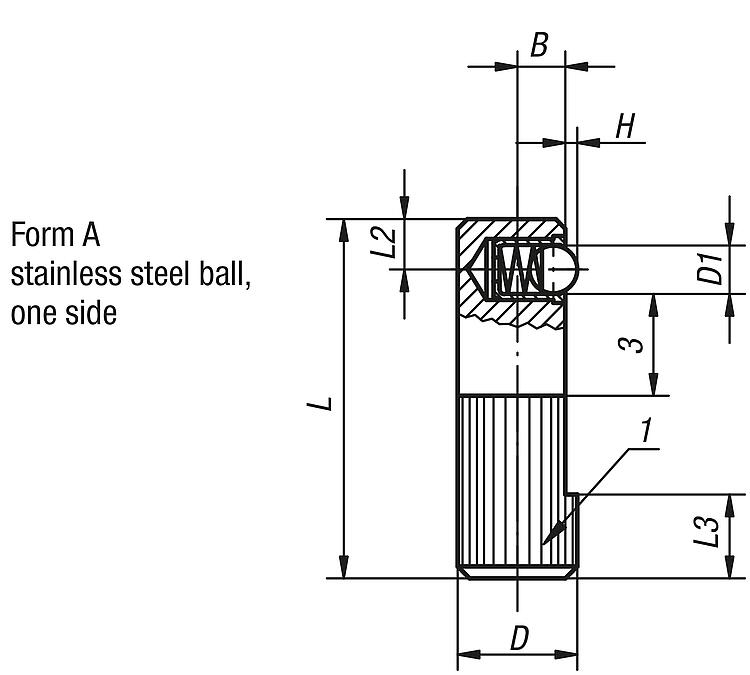

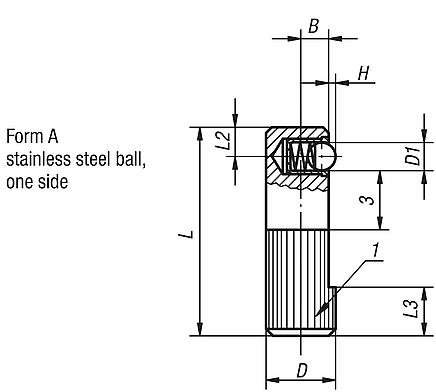

Lateral spring plungers, Form A

More information

Drawings

Item selection/filter

	A	8 10 12 14	3 4 5 6,5	0,7 1,0 1,5 1,8	25 30 35 40	3,6 4,2 4,8 5,8	6 7 9 10	3,2 4 5 5,4	8 10 12 14	2,5 4,5 6,5 8	6,5 9 13 18				Reset
Order No.	Form	D	D1	H	L	L2	L3	B	Receiving hole H8	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03340-008	A	8	3	0,7	25	3,6	6	3,2	8	2,5	6,5			on request
03340-010	A	10	4	1,0	30	4,2	7	4	10	4,5	9			on request
03340-012	A	12	5	1,5	35	4,8	9	5	12	6,5	13			on request
03340-014	A	14	6,5	1,8	40	5,8	10	5,4	14	8	18			on request

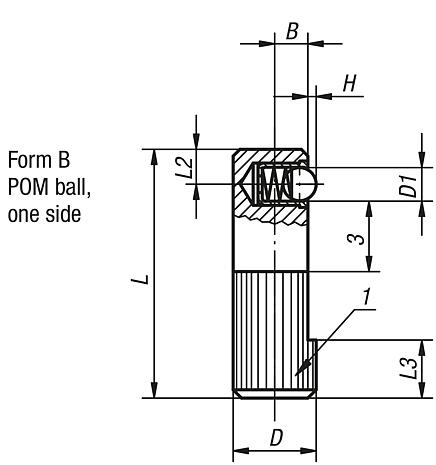

Lateral spring plungers, Form B

More information

Drawings

Item selection/filter

	B	8 10 12 14	3 4 5 6,5	0,7 1,0 1,5 1,8	25 30 35 40	3,6 4,2 4,8 5,8	6 7 9 10	3,2 4 5 5,4	8 10 12 14	2,5 4,5 6,5 8	6,5 9 13 18				Reset
Order No.	Form	D	D1	H	L	L2	L3	B	Receiving hole H8	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03340-108	B	8	3	0,7	25	3,6	6	3,2	8	2,5	6,5			on request
03340-110	B	10	4	1,0	30	4,2	7	4	10	4,5	9			on request
03340-112	B	12	5	1,5	35	4,8	9	5	12	6,5	13			on request
03340-114	B	14	6,5	1,8	40	5,8	10	5,4	14	8	18			on request

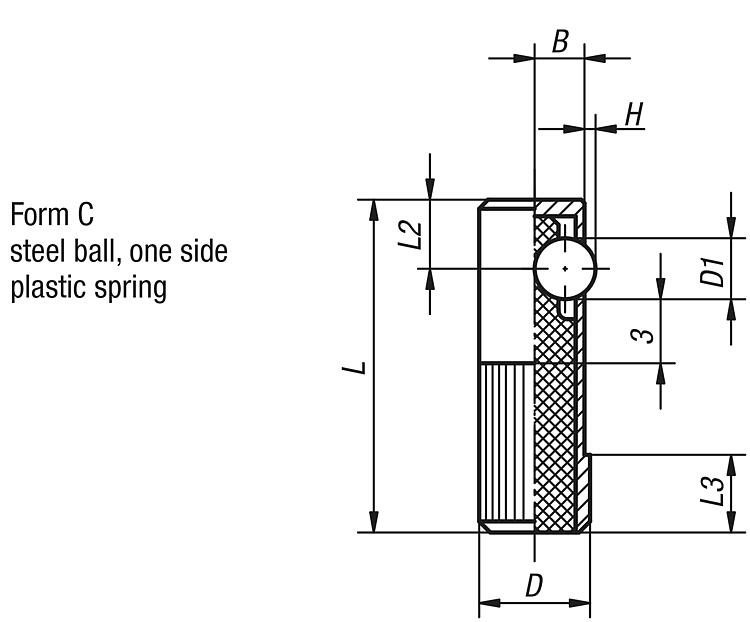

Lateral spring plungers, Form C

More information

Drawings

Item selection/filter

	C	10 12 14	5,5 6,5 8	1 1,5 2	30 35 40	7 8 9	8 9 10	4,5 5,5 6,5	10 12 14	60 80 120	170 260 480				Reset
Order No.	Form	D	D1	H	L	L2	L3	B	Receiving hole H8	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03340-410	C	10	5,5	1	30	7	8	4,5	10	60	170			on request
03340-412	C	12	6,5	1,5	35	8	9	5,5	12	80	260			on request
03340-414	C	14	8	2	40	9	10	6,5	14	120	480			on request

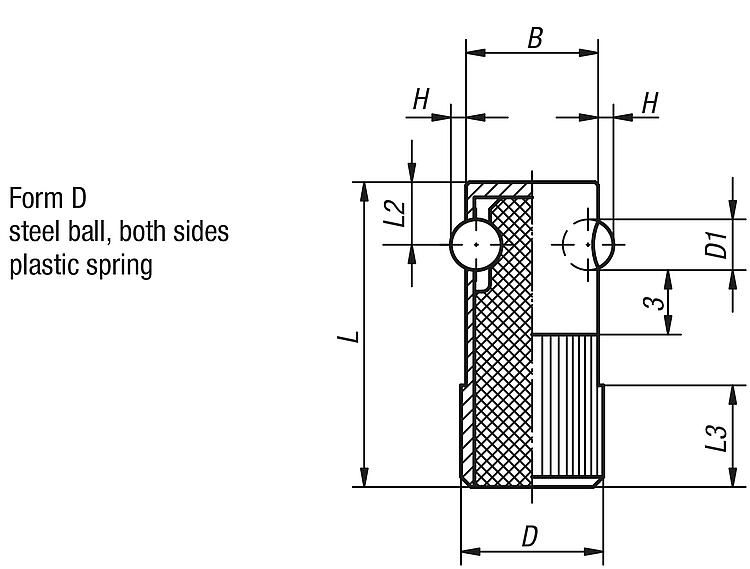

Lateral spring plungers, Form D

More information

Drawings

Item selection/filter

	D	16 18 22	5,5 6,5 8	1,5 1,8 2,5	35 40 45	7 8 9	11 12 15	15 17 21	16 18 22	110 120 130	220 330 540				Reset
Order No.	Form	D	D1	H	L	L2	L3	B	Receiving hole H8	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03340-616	D	16	5,5	1,5	35	7	11	15	16	110	220			on request
03340-618	D	18	6,5	1,8	40	8	12	17	18	120	330			on request
03340-622	D	22	8	2,5	45	9	15	21	22	130	540			on request
