        Push-Pull spring plungers with rotation lock

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Threaded sleeve trivalent blue passivated.
Screw case hardened and black oxidised.
Spring strength - standard or intensified.Note:The push-pull spring plungers, also called two-way spring plungers are used to engage, position or clamp various components. The hexagonal tapped pin which cannot rotate can be used for traction or thrust.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03339 Push-Pull spring plungers with rotation lock

161 kB

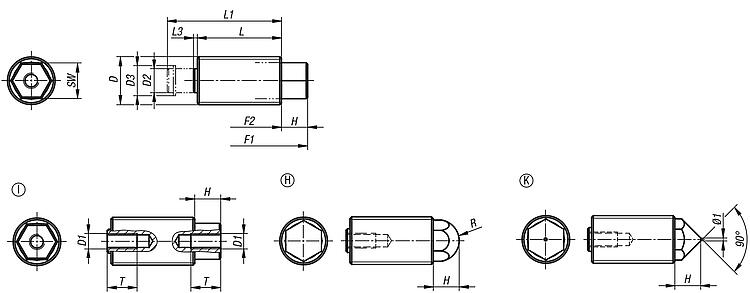

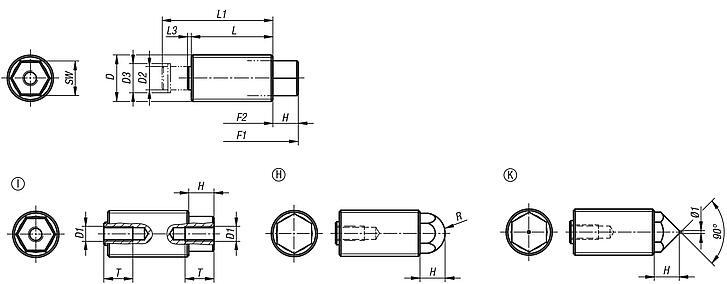

Drawings (total overview)

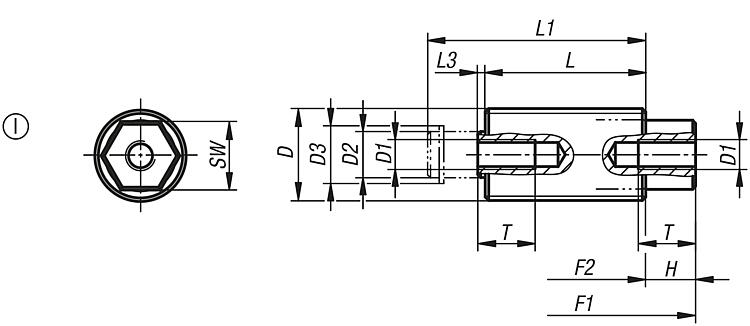

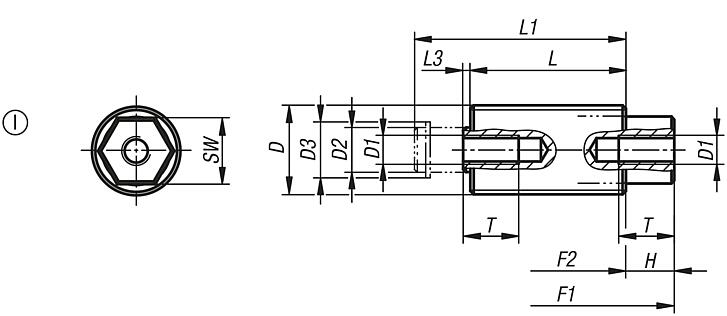

Push-Pull spring plungers with rotation lock, Form I

More information

Drawings

Push-Pull spring plungers with rotation lock, Form I

Item selection/filter

Order No.	Form	Spring strength	D	SW	D1	D2	D3	F1 N	F2 N	H	L	L1	L3	T min.	Price
03339-1112	I	standard	M12X1,5	8	M4	5,5	6,78	16	38	6,12	20	27,5	1,38	8	on request
03339-1116	I	standard	M16x1,5	11	M5	8	10	25	71	8,7	28	38	1,3	10	on request
03339-1120	I	standard	M20X1,5	14	M6	10	12,2	40	140	10,3	34	47	2,7	12	on request
03339-1212	I	intensified	M12X1,5	8	M4	5,5	6,78	20	60	6,12	20	27,5	1,38	8	on request
03339-1216	I	intensified	M16x1,5	11	M5	8	10	35	103	8,7	28	38	1,3	10	on request
03339-1220	I	intensified	M20X1,5	14	M6	10	12,2	60	175	10,3	34	47	2,7	12	on request

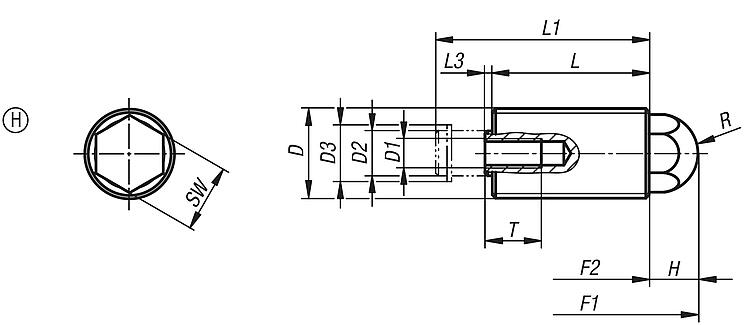

Push-Pull spring plungers with rotation lock Form H

More information

Drawings

Push-Pull spring plungers with rotation lock Form H

Item selection/filter

Order No.	Form	Spring strength	D	D1	D2	D3	F1 N	F2 N	H	L	L1	L3	R	SW	T min.	Price
03339-2112	H	standard	M12X1,5	M4	5,5	6,78	16	38	6,12	20	27,5	1,38	5,5	8	8	on request
03339-2116	H	standard	M16x1,5	M5	8	10	25	71	8,7	28	38	1,3	7	11	10	on request
03339-2120	H	standard	M20X1,5	M6	10	12,2	40	140	10,3	34	47	2,7	9	14	12	on request
03339-2212	H	intensified	M12X1,5	M4	5,5	6,78	20	60	6,12	20	27,5	1,38	5,5	8	8	on request
03339-2216	H	intensified	M16x1,5	M5	8	10	35	103	8,7	28	38	1,3	7	11	10	on request
03339-2220	H	intensified	M20X1,5	M6	10	12,2	60	175	10,3	34	47	2,7	9	14	12	on request

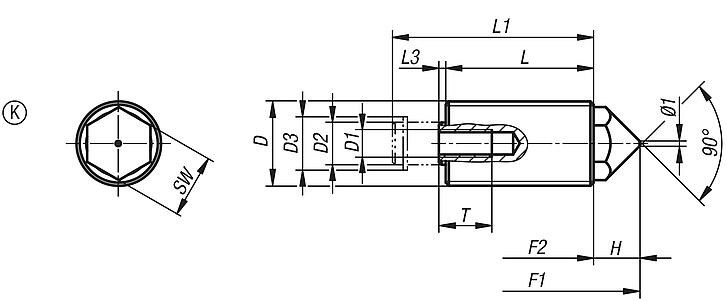

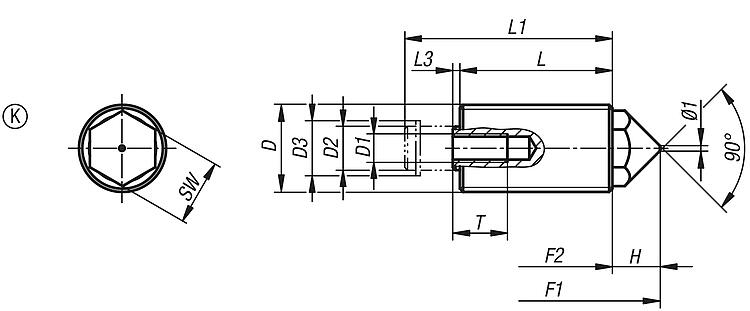

Push-Pull spring plungers with rotation lock Form K

More information

Drawings

Push-Pull spring plungers with rotation lock Form K

Item selection/filter

Order No.	Form	Spring strength	D	SW	D1	D2	D3	F1 N	F2 N	H	L	L1	L3	T min.	Price
03339-3112	K	standard	M12X1,5	8	M4	5,5	6,78	16	38	6,12	20	27,5	1,38	8	on request
03339-3116	K	standard	M16x1,5	11	M5	8	10	25	71	8,7	28	38	1,3	10	on request
03339-3120	K	standard	M20X1,5	14	M6	10	12,2	40	140	10,3	34	47	2,7	12	on request
03339-3212	K	intensified	M12X1,5	8	M4	5,5	6,78	20	60	6,12	20	27,5	1,38	8	on request
03339-3216	K	intensified	M16x1,5	11	M5	8	10	35	103	8,7	28	38	1,3	10	on request
03339-3220	K	intensified	M20X1,5	14	M6	10	12,2	60	175	10,3	34	47	2,7	12	on request
