        Push-Pull spring plungers

Item description/product images

DescriptionMaterial:Steel.Version:Sleeve blue electro zinc-plated.
Spring pins black oxidised.Note:The tapped hole in both ends of the spring pin allow various inserts to be attached e.g. prisms, thrust pins, self-aligning pads, knobs, grips etc.Assembly:LOCTITE threadlocker 97990-243.... is recommended for gluing the threaded sleeve in position.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03338 Push-Pull spring plungers

279 kB

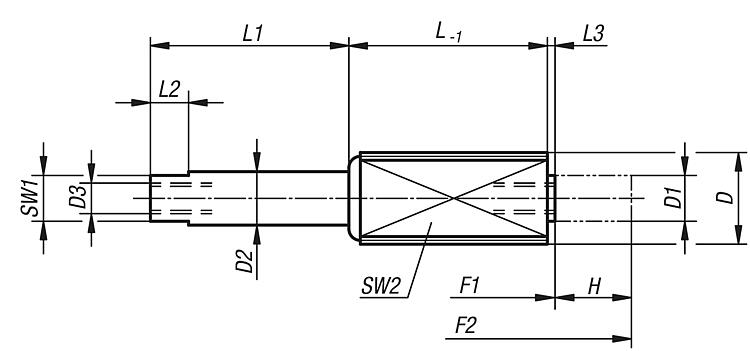

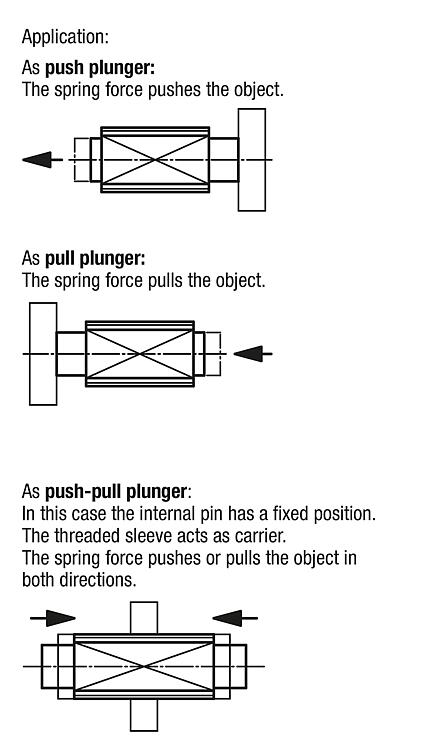

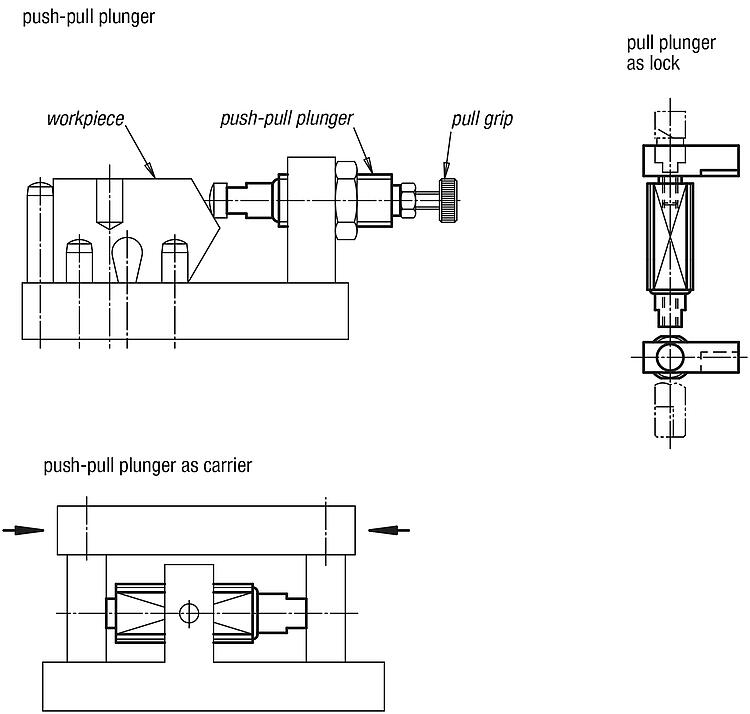

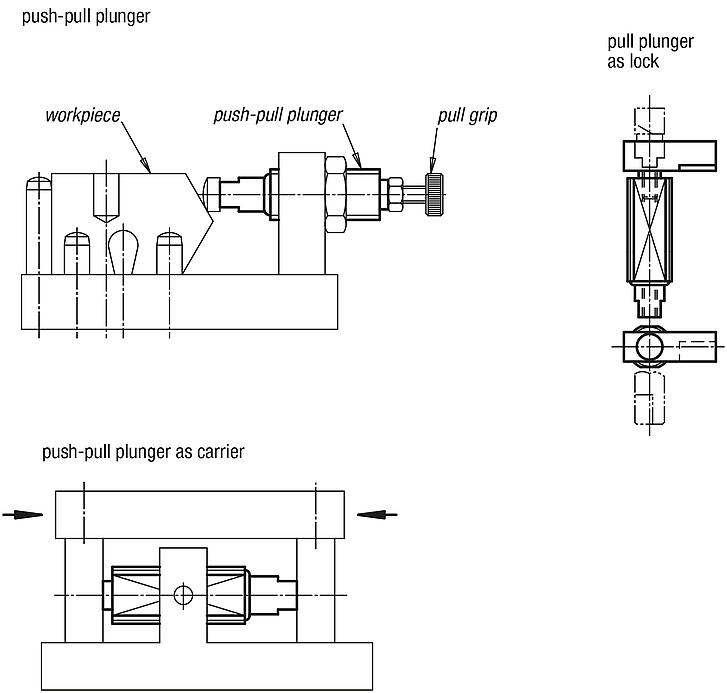

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	H	L	L1	L2	L3	SW1	SW2 square	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03338-1202004	M12	6	7	M4x8	3,5	11	4,5	5	1	6	10	5	20	on request
03338-1202006	M12	6	7	M4x8	6	18,5	7	5	1	6	10	5	20	on request
03338-1202010	M12	6	7	M4x8	10	26	11	5	1	6	10	5	20	on request
03338-1206003	M12	6	7	M4x8	3	11	4,5	5	1	6	10	12	40	on request
03338-1206005	M12	6	7	M4x8	5	18,5	7	5	1	6	10	12	40	on request
03338-1206008	M12	6	7	M4x8	8	26	11	5	1	6	10	12	40	on request
03338-1212503	M12	6	7	M4x8	3	11	4,5	5	1	6	10	20	100	on request
03338-1212505	M12	6	7	M4x8	5	18,5	7	5	1	6	10	20	100	on request
03338-1212508	M12	6	7	M4x8	8	26	11	5	1	6	10	20	100	on request
03338-1815004	M18x1,5	10	11	M6x12	4	17	6	6	2,5	9	16	50	150	on request
03338-1815007	M18x1,5	10	11	M6x12	7	29,5	11,5	6	2,5	9	16	50	150	on request
03338-1815013	M18x1,5	10	11	M6x12	12,5	45,5	16	6	2,5	9	16	50	150	on request
