DescriptionMaterial:Steel.Version:Tempered, black oxidised.
Riser faces ground.Note:Also called multi-fixture clamps and stops.
Cost-effective custom made clamping fixtures can be produced using the adjustable riser cam clamps together with the matching riser stops.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| for
screws

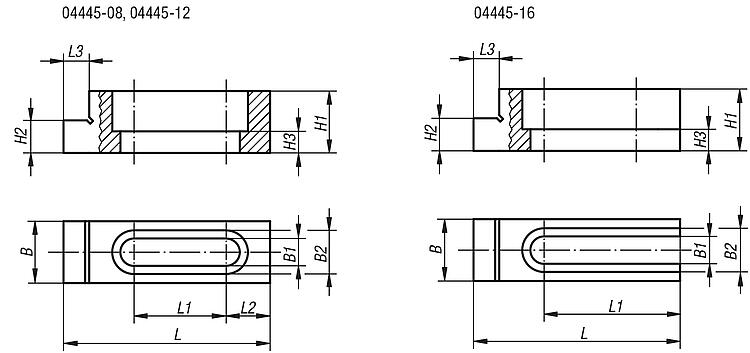

| L | L1 | L2 | L3 | B | B1 | B2 | H1 | H2 | H3 | Long
hole | CAD | Acc. | Price | Order |
|---|
| 04445-08 | M8 | 63,5 | 28,3 | 13,5 | 7,9 | 19 | 8,4 | 13,4 | 19 | 11,684 -0,013 | 6,6 | closed |  | | on request | | | 04445-12 | M12 | 95,2 | 42,7 | 12,7 | 7,9 | 28,5 | 13,4 | 19,8 | 22 | 12,192 -0,013 | 6,9 | closed | | | on request | | | 04445-16 | M16 | 107 | 46,2 | - | 9,5 | 38 | 17 | 24,8 | 50,7 | 35,001 -0,013 | 21,3 | open | | | on request | |
