Side clamps with rest pad
 04485

Side clamps with rest pad

 go back

Item description/product images
DescriptionMaterial:Housing and arm carbon steel.
Jaw tool steel.Version:Housing tempered and black oxidised.
Arm black oxidised.

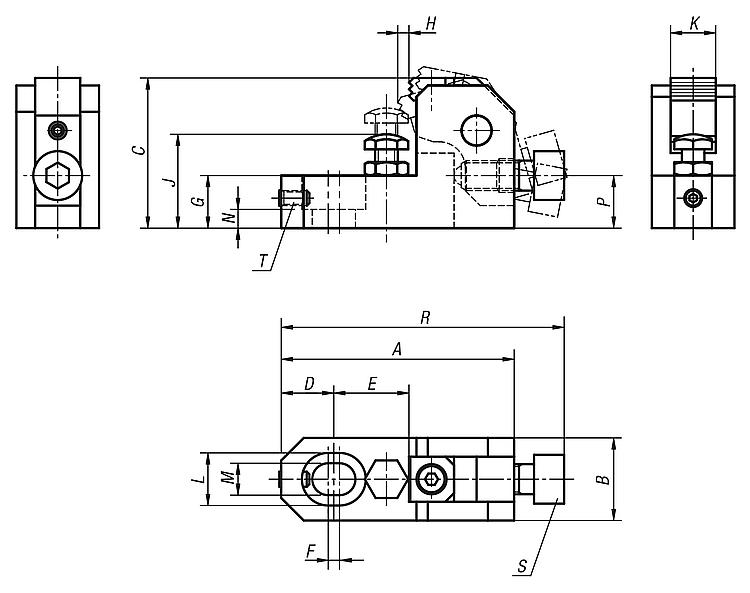

Jaw tempered and black oxidised.Drawing reference:
T) grub screw
S) ball pressure screw
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 04485 Side clamps with rest pad 288 kB

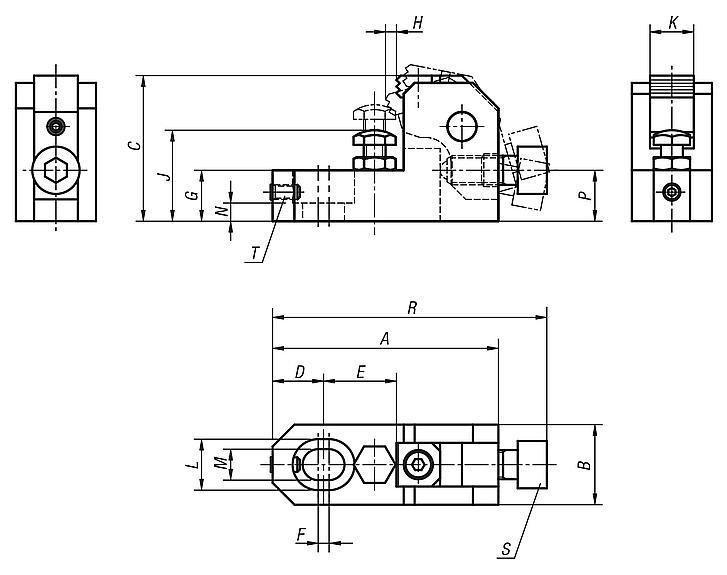

Drawings

Side clamps with rest pad

Item selection/filter
Order No.

ABCD

EFGHJKLMNPRSTF=Retaining
force N		Tightening
torque
Nm		CADAcc.PriceOrder
04485-025086222401420314325-3212148,551475,5M8x20M4x8600015 on request
04485-0321078255018254183,732-401617,511717,595M10x25M5x101000030 on request
04485-0401293326021305214,540-48202013821113M12x30M6x121700065 on request
04485-0481612438802840627648-632526171028151M16x40M8x1625000130 on request
