DescriptionMaterial:Body ductile iron (SG iron) Jaw QT steel hardened.Version:Painted black. Jaw bright.Note:The workpiece is clamped between side clamps and the side stops, simultaneously producing a positive down force. Side clamps and stops are secured with DIN 912 cylinder screws. A secure clamping is ensured when side clamps and side stops are used together.

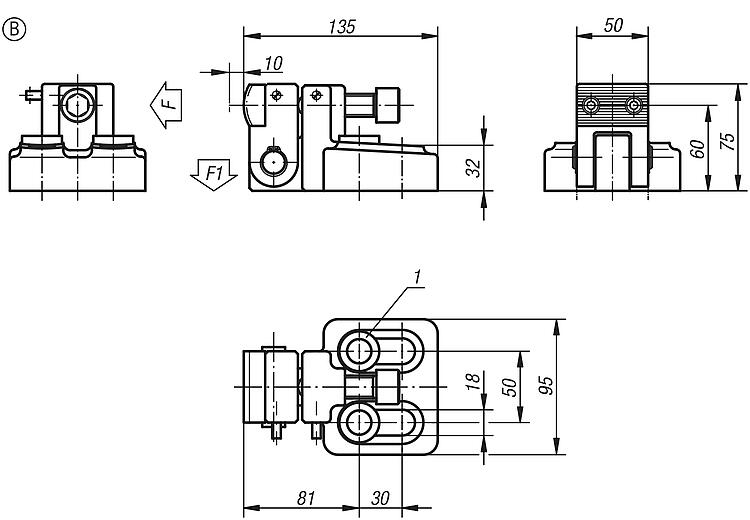

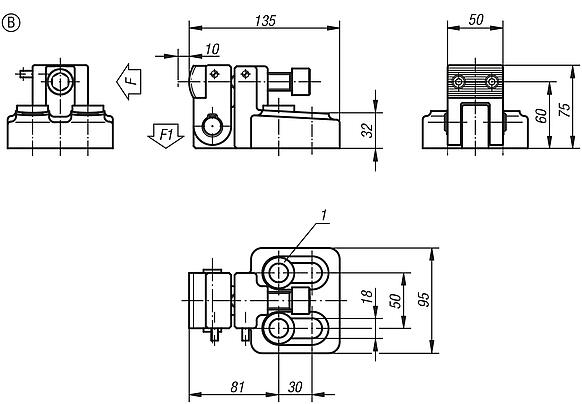

Form B: 2 conical seats and 2 spherical washers for M12 and M16 are supplied.Drawing reference:
1) spherical washer set for M12 and M16 2) workpiece
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
