        Hook clamps with collar

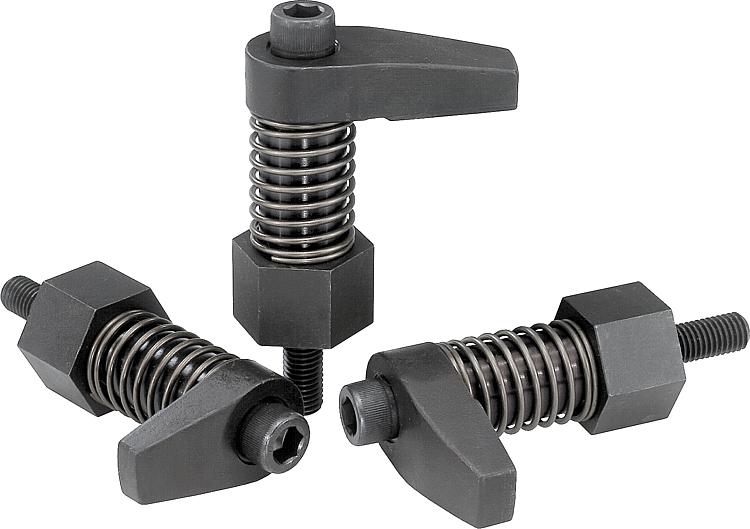

Item description/product images

DescriptionMaterial:Hook clamps and hook clamp holders carbon steel, tempered.Version:Black oxidised.Note:Hook clamps with collars can be screwed directly into grid holes etc. with or without counterbore.
For suitable height adjustment elements see risers 04378.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04373 Hook clamps with collar

202 kB

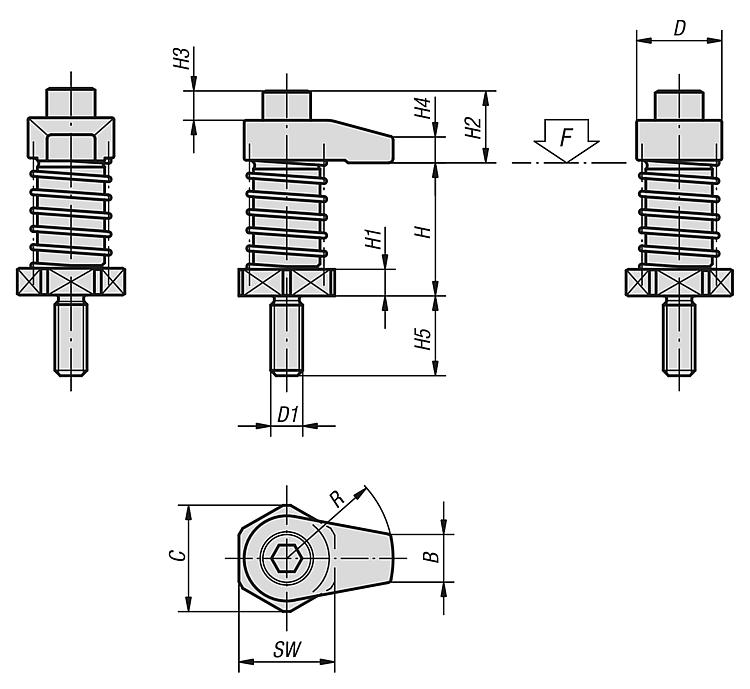

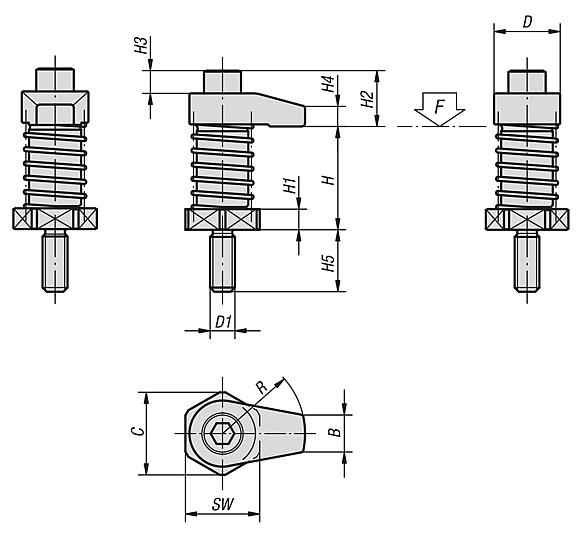

Drawings

Item selection/filter

Order No.	D	D1	H clamping range	H1	H2	H3	H4	H5	B	C	R	SW	Tightening torque max. Nm	F max. kN	Price
04373-08020	22	M8	35-45	6	14	2	7	19	10	25	20	22	20	7,9	on request
04373-08025	22	M8	35-45	6	14	2	7	19	10	25	25	22	20	7,3	on request
04373-08030	22	M8	35-45	6	14	2	7	19	10	25	30	22	20	6,7	on request
04373-08120	22	M8	45-55	16	14	2	7	19	10	25	20	22	20	7,9	on request
04373-08125	22	M8	45-55	16	14	2	7	19	10	25	25	22	20	7,3	on request
04373-08130	22	M8	45-55	16	14	2	7	19	10	25	30	22	20	6,7	on request
04373-12040	32	M12	50-65	10	27	11	10	30	18	40	40	36	45	13,5	on request
04373-12050	32	M12	50-65	10	29	11	12	30	18	40	50	36	45	12,6	on request
04373-12060	32	M12	50-65	10	29	11	12	30	18	40	60	36	45	11,7	on request
04373-12140	32	M12	65-80	25	27	11	10	30	18	40	40	36	45	13,5	on request
04373-12150	32	M12	65-80	25	29	11	12	30	18	40	50	36	45	12,6	on request
04373-12160	32	M12	65-80	25	29	11	12	30	18	40	60	36	45	11,7	on request
04373-16040	36	M16	50-65	10	36	15	15	30	22	40	40	36	60	13,4	on request
04373-16050	36	M16	50-65	10	36	15	15	30	22	40	50	36	60	12,4	on request
04373-16060	36	M16	50-65	10	36	15	15	30	22	40	60	36	60	12	on request
04373-16140	36	M16	65-80	25	36	15	15	30	22	40	40	36	60	13,4	on request
04373-16150	36	M16	65-80	25	36	15	15	30	22	40	50	36	60	12,4	on request
04373-16160	36	M16	65-80	25	36	15	15	30	22	40	60	36	60	12	on request
