        Hook clamp holders

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:Hook clamp holders are for holding and raising hook clamps.Accessory:Hook clamps 04372.
Extensions for jack screws 04378.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04375 Hook clamp holders

241 kB

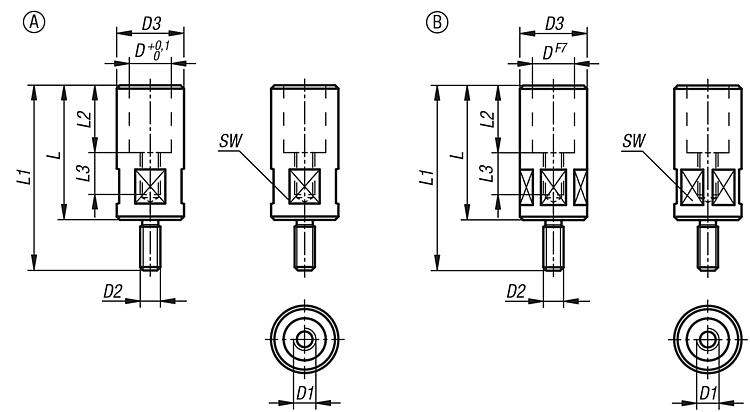

Drawings (total overview)

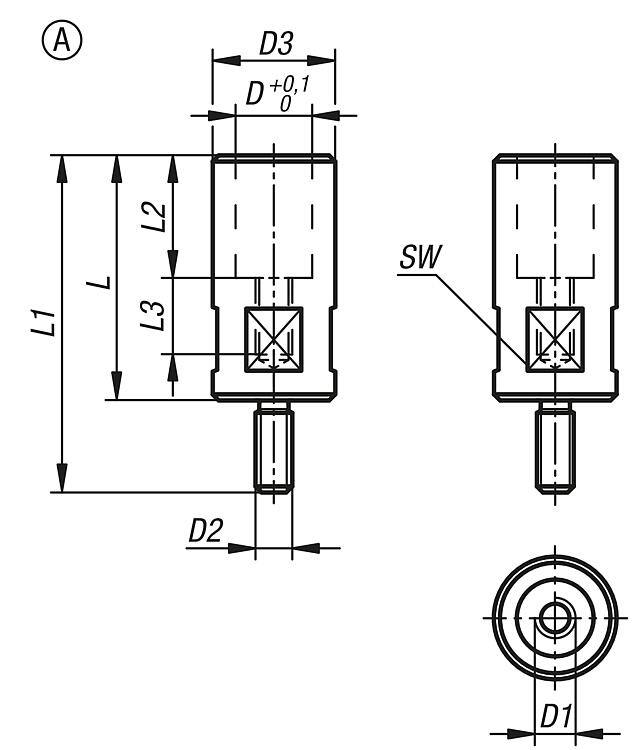

Hook clamp holders, Form A, with square

More information

Drawings

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	D3	L	L1	L2	L3	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
04375-04035	A	with square	10	M4	M6	14	35	46	16	13	12	2,7			on request
04375-06040	A	with square	12	M6	M8	16	40	54	19	14	13	7			on request

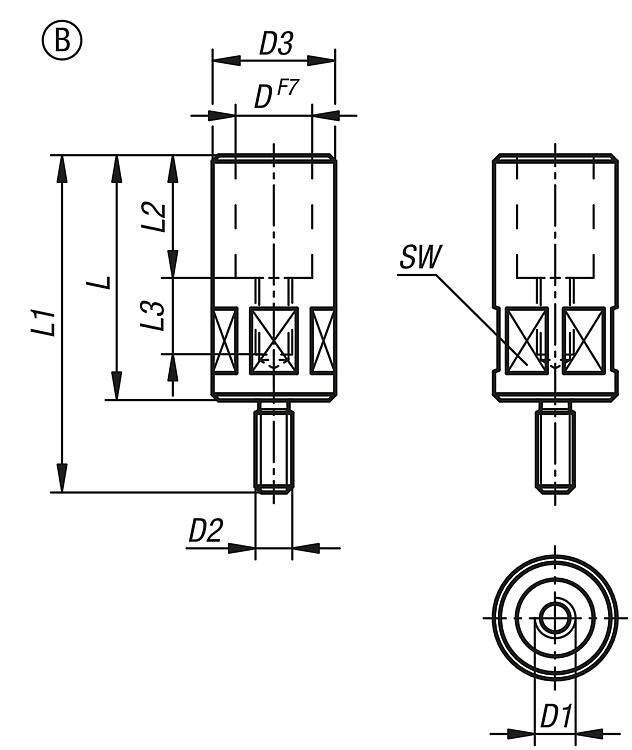

Hook clamp holders, Form B, with hexagon

More information

Drawings

Hook clamp holders, Form B, with hexagon

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	D3	L	L1	L2	L3	SW	Tightening torque max. Nm	Price
04375-08055	B	with hexagon	18	M8	M8	24	55	74	25	20	22	29,4	on request
04375-10063	B	with hexagon	20	M10	M12	32	63	93	30	21	30	39,2	on request
04375-10080	B	with hexagon	20	M10	M12	32	80	110	30	23	30	39,2	on request
04375-12080	B	with hexagon	25	M12	M12	40	80	110	40	25	36	49	on request
04375-12100	B	with hexagon	25	M12	M12	40	100	130	40	28	36	49	on request
04375-16080	B	with hexagon	32	M16	M16	50	80	110	40	25	46	78,4	on request
04375-16100	B	with hexagon	32	M16	M16	50	100	130	40	28	46	78,4	on request
