04395-11Clamping screw with clamping ring for flexible clamping bolt |
go back |
|
|
DescriptionMaterial:Screw steel.
Clamping ring brass.Version:Screw black oxidised.

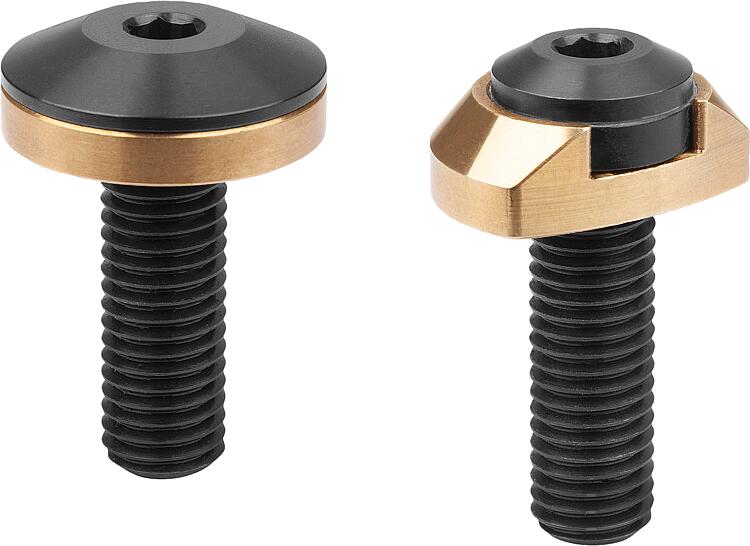

Clamping ring bright.Note:The clamping screw with clamping ring is screwed into the clamping bolt from above. They clamp the workpiece securely and effectively. A soft, replaceable brass clamping ring prevents damage or scratches to the workpiece.
Form A: Standard screw with minimised interference contour due to very flat screw head.
Form B: Bearing screw for large series production. The flattened clamping ring enables quick workpiece removal.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

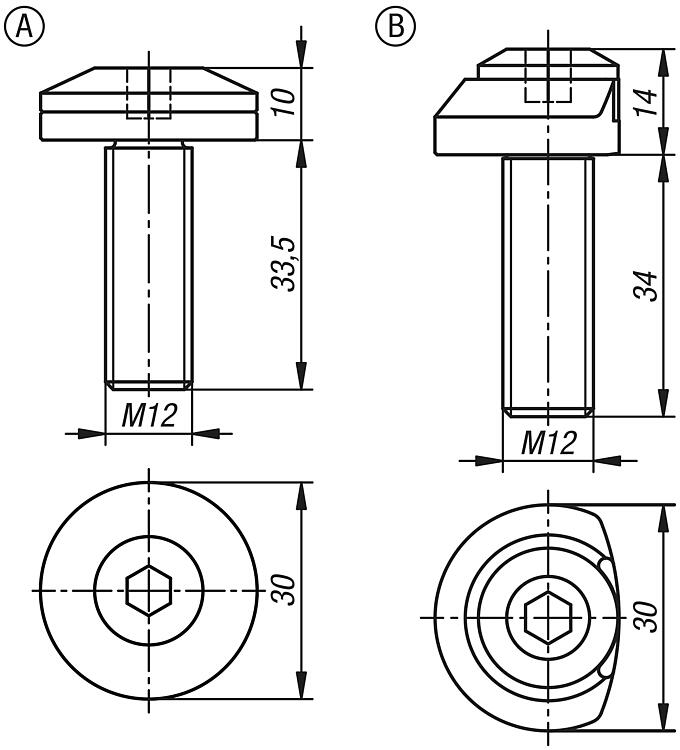

Drawings (total overview) |

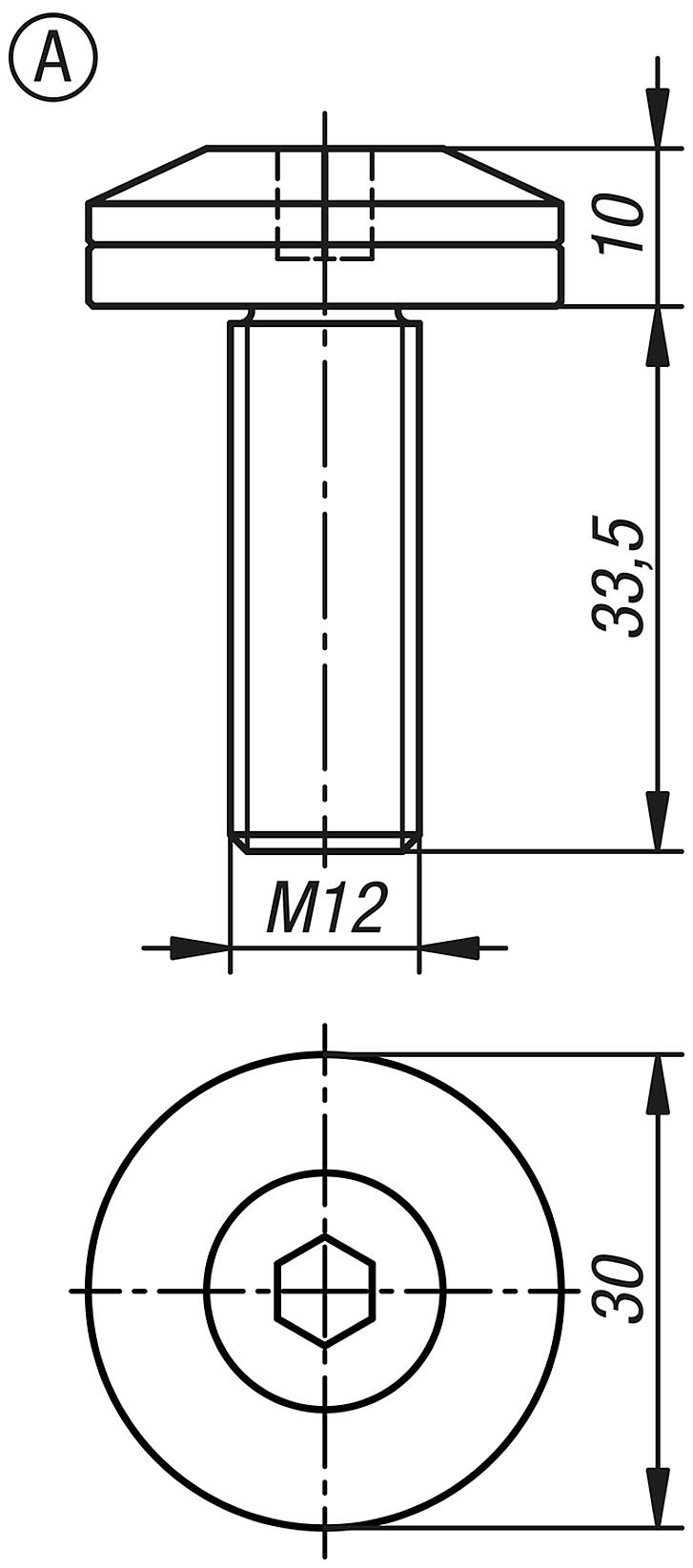

Clamping screw with clamping ring for flexible clamping bolt, Form A |
More information |
Order No.
| Form | Form definition | CAD | Acc. | Price | Order |
|---|
| 04395-11-1 | A | standard |  | | on request | |
|

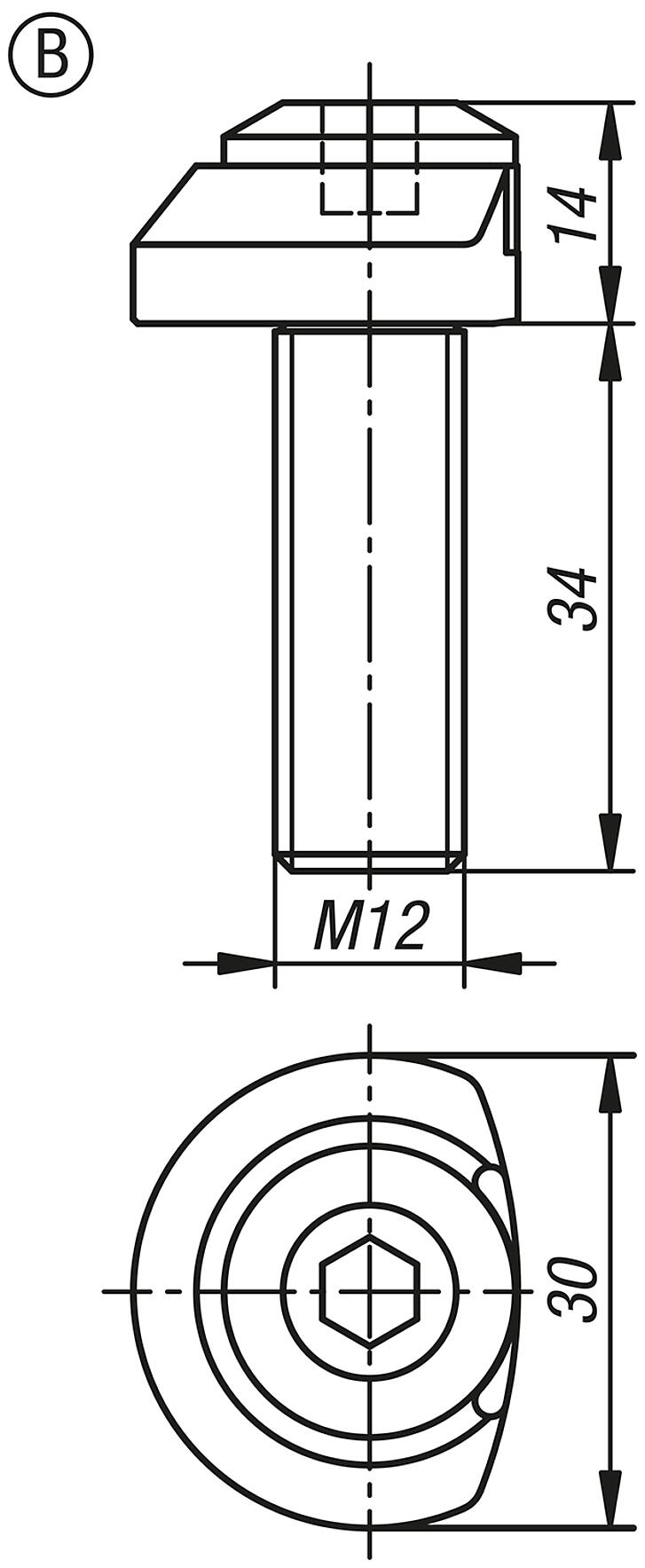

Clamping screw with clamping ring for flexible clamping bolt, Form B |
More information |
Order No.
| Form | Form definition | CAD | Acc. | Price | Order |
|---|
| 04395-11-2 | B | flattened | | | on request | |
|
