Item description/product images |
|
|
DescriptionMaterial:Neoprene with steel insertVersion:Black, oil-resistant.
Insert trivalent passivated.Note:The neoprene thrust pad with order No. 05888-45 is supplied without steel insert or thread.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

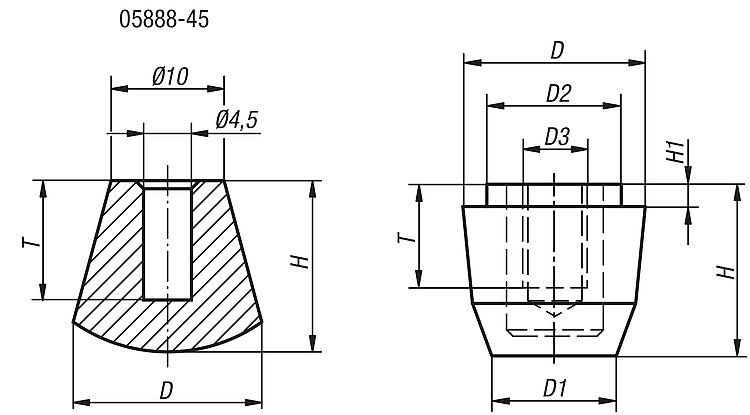

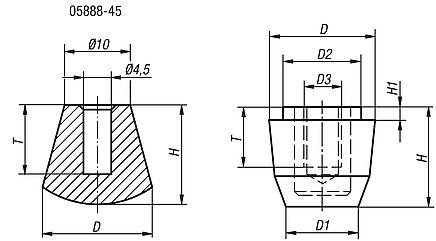

| D | D1 | D2 | D3 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| 05888-45 | 12 | - | - | - | 10 | - | 7 |  | | on request | | | 05888-06 | 15 | 10,3 | 10,8 | M6 | 14,4 | 2 | 5,5 | | | on request | | | 05888-08 | 19,5 | 13,5 | 15 | M8 | 18 | 2,5 | 9 | | | on request | | | 05888-10 | 23 | 16 | 17 | M10 | 21 | 3 | 8 | | | on request | | | 05888-12 | 25,5 | 18,5 | 21 | M12 | 23,7 | 3 | 10,8 | | | on request | |
