        Tension levers, safety, internal thread

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.

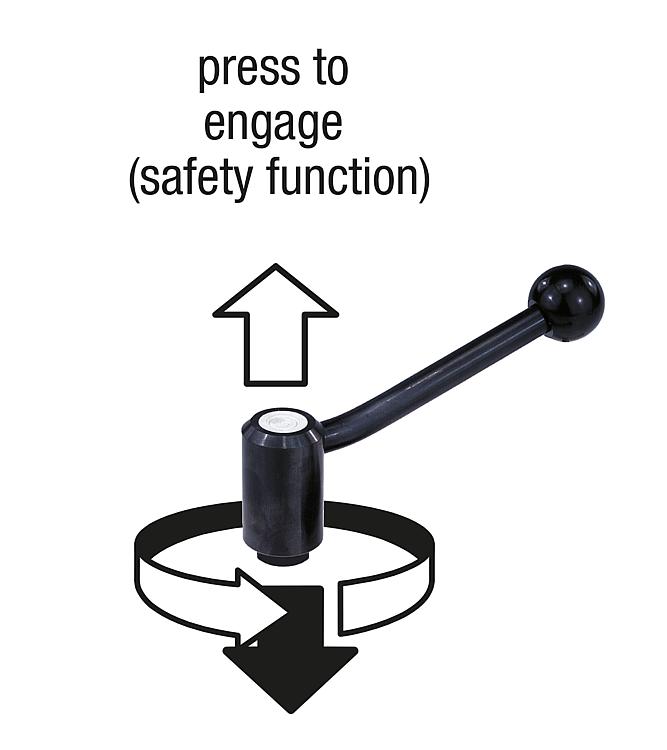

Ball knob black plastic.Version:Powder-coated with fine texture, black.Type of operation:Press the handle down until the teeth are fully engaged. The object can now be clamped or released. Spring pressure pushes the handle up disengaging the teeth and thereby restoring the safety function (handle can be rotated without engaging).On request:Special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06382 Tension levers safety internal thread

199 kB

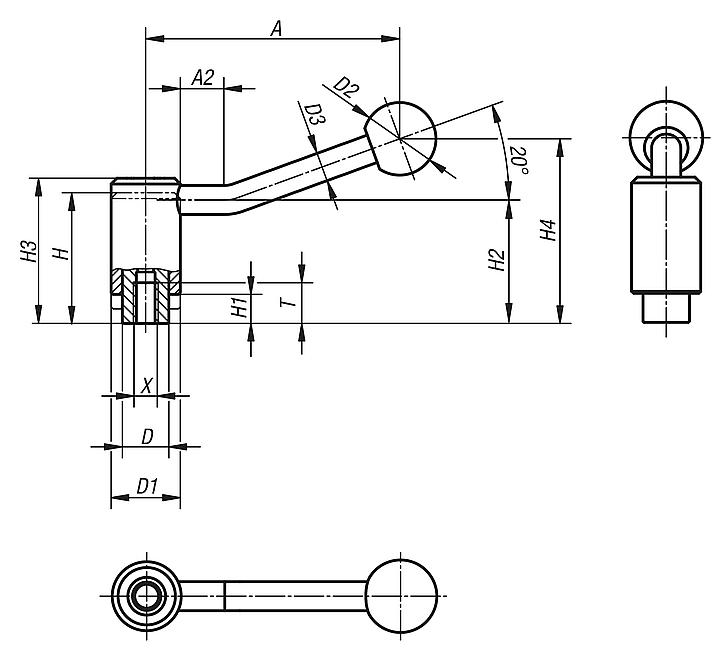

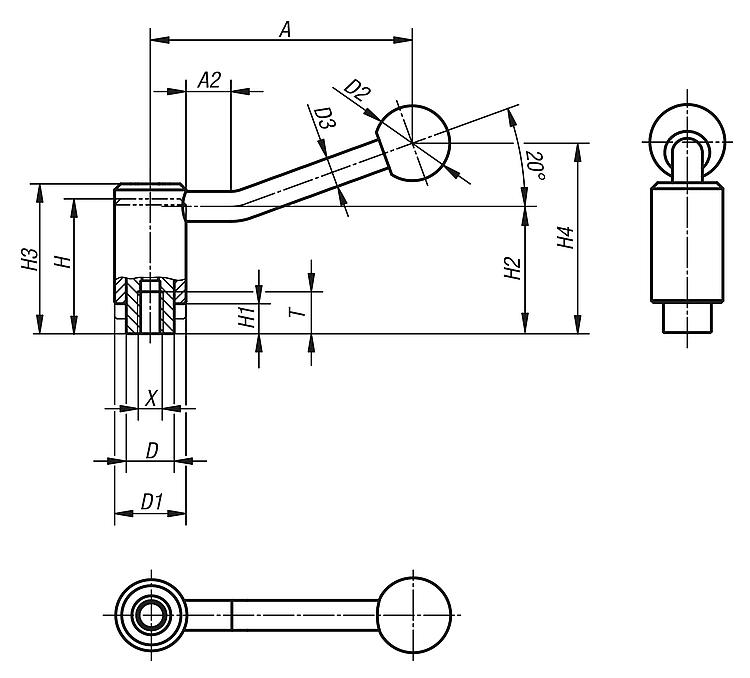

Drawings

Item selection/filter

Order No.	X	T	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
06382-1108	M8	14	88	15	16	24	25	10	44,5	9,5	49,3	49,5	63,5	22	on request
06382-1110	M10	14	88	15	16	24	25	10	44,5	9,5	49,3	49,5	63,5	22	on request
06382-1210	M10	17	106	15	19	28	32	12	51	10,5	56,3	56,5	74	24	on request
06382-1212	M12	17	106	15	19	28	32	12	51	10,5	56,3	56,5	74	24	on request
06382-1312	M12	23	128,5	15	23	33	32	13	57,5	12,5	64,5	64,5	87,5	26	on request
06382-1316	M16	23	128,5	15	23	33	32	13	57,5	12,5	64,5	64,5	87,5	26	on request
