        Tension levers, flat, internal thread

Item description/product images

Show/filter all items

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06390 Tension levers flat internal thread

206 kB

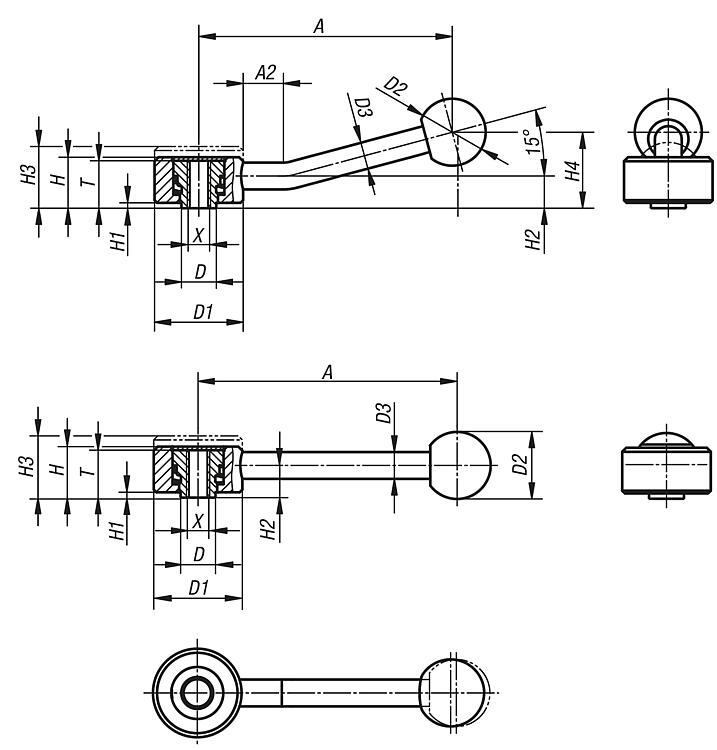

Drawings (total overview)

Tension levers, flat, internal thread, 0°

More information

Drawings

Tension levers, flat, internal thread, 0°

Item selection/filter

Order No.	Form	X	T	A	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	Price
06390-1061	0°	M6	18	102	13,5	33	25	10	19	2	12	23	26	on request
06390-1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26	on request
06390-2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30	on request
06390-2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30	on request
06390-3121	0°	M12	27	148	23	45	37	14	28	2	17	33	36	on request
06390-3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36	on request

Tension levers, flat, internal thread, 15°

More information

Drawings

Tension levers, flat, internal thread, 15°

Item selection/filter

Order No.	Form	X	T	A	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
06390-1062	15°	M6	18	100	15	13,5	33	25	10	19	2	12	23	29	26	on request
06390-1082	15°	M8	18	100	15	13,5	33	25	10	19	2	12	23	29	26	on request
06390-2102	15°	M10	21	127	15	19	41	30	12	22	2	13,5	26	38	30	on request
06390-2122	15°	M12	21	127	15	19	41	30	12	22	2	13,5	26	38	30	on request
06390-3122	15°	M12	27	145	15	23	45	37	14	28	2	17	33	48	36	on request
06390-3162	15°	M16	27	145	15	23	45	37	14	28	2	17	33	48	36	on request
