        Tension levers flat, external thread, stainless steel

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06401 Tension levers flat external thread, stainless steel

228 kB

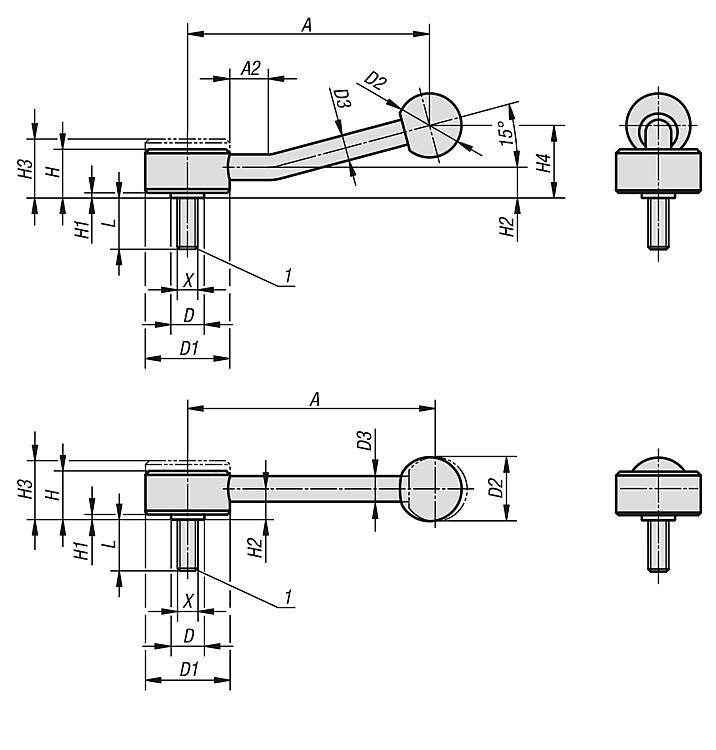

Drawings (total overview)

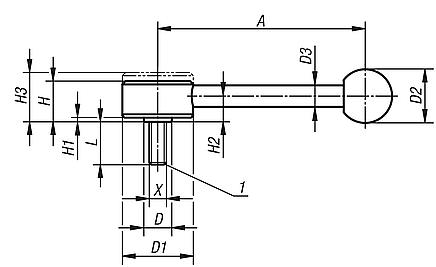

Tension levers flat external thread, stainless steel, 0°

More information

Drawings

Tension levers flat external thread, stainless steel, 0°

Item selection/filter

Order No.	Form	X	A=Handle length	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	L	Price
06401-1081X30	0°	M8	102	13,5	33	25	10	19	2	12	23	26	30	on request
06401-1081X40	0°	M8	102	13,5	33	25	10	19	2	12	23	26	40	on request
06401-1081X50	0°	M8	102	13,5	33	25	10	19	2	12	23	26	50	on request
06401-2101X30	0°	M10	131	19	41	30	12	22	2	13,5	26	30	30	on request
06401-2101X40	0°	M10	131	19	41	30	12	22	2	13,5	26	30	40	on request
06401-2101X50	0°	M10	131	19	41	30	12	22	2	13,5	26	30	50	on request
06401-2101X60	0°	M10	131	19	41	30	12	22	2	13,5	26	30	60	on request
06401-2121X30	0°	M12	131	19	41	30	12	22	2	13,5	26	30	30	on request
06401-2121X40	0°	M12	131	19	41	30	12	22	2	13,5	26	30	40	on request
06401-2121X50	0°	M12	131	19	41	30	12	22	2	13,5	26	30	50	on request
06401-2121X60	0°	M12	131	19	41	30	12	22	2	13,5	26	30	60	on request
06401-3161X40	0°	M16	148	23	45	37	14	28	2	17	33	36	40	on request
06401-3161X50	0°	M16	148	23	45	37	14	28	2	17	33	36	50	on request
06401-3161X60	0°	M16	148	23	45	37	14	28	2	17	33	36	60	on request

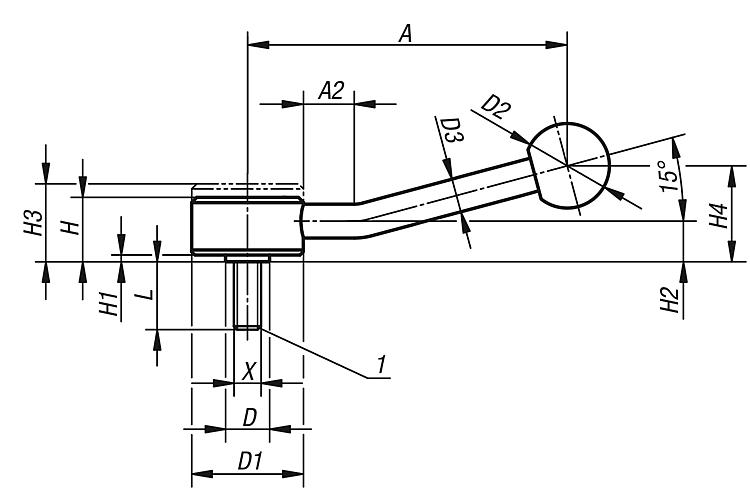

Tension levers flat external thread, stainless steel, 15°

More information

Drawings

Tension levers flat external thread, stainless steel, 15°

Item selection/filter

Order No.	Form	X	A=Handle length	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	L	Price
06401-1082X30	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	30	on request
06401-1082X40	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	40	on request
06401-1082X50	15°	M8	100	15	13,5	33	25	10	19	2	12	23	29	26	50	on request
06401-2102X30	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	30	on request
06401-2102X40	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	40	on request
06401-2102X50	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	50	on request
06401-2102X60	15°	M10	127	15	19	41	30	12	22	2	13,5	26	38	30	60	on request
06401-2122X30	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	30	on request
06401-2122X40	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	40	on request
06401-2122X50	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	50	on request
06401-2122X60	15°	M12	127	15	19	41	30	12	22	2	13,5	26	38	30	60	on request
06401-3162X40	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	40	on request
06401-3162X50	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	50	on request
06401-3162X60	15°	M16	145	15	23	45	37	14	28	2	17	33	48	36	60	on request
