Ball handles DIN 6337

06420

Ball handles DIN 6337

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Clamping and tension levers
        Ball handles DIN 6337

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.
Ball knob thermoset.Version:Black oxidised, ball knob black.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06420 Ball handles DIN 6337

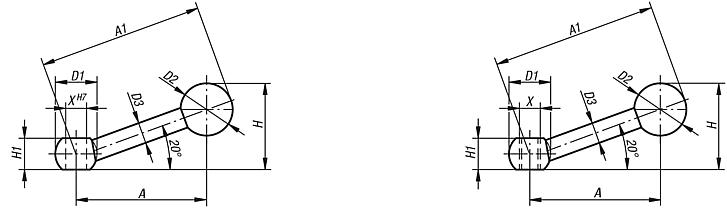

Drawings (total overview)

Ball handles DIN 6337

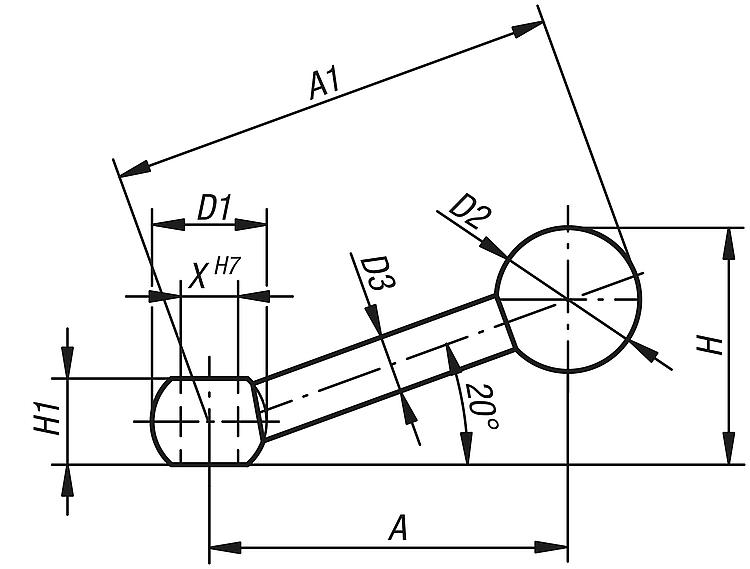

Ball handles DIN 6337 with locating hole

More information

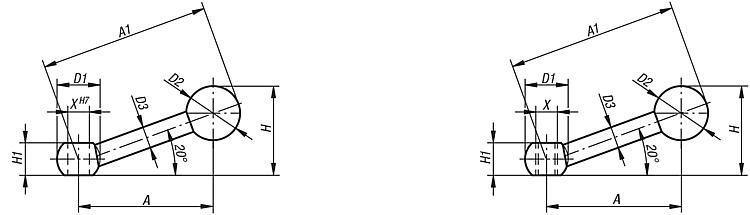

Drawings

Ball handles DIN 6337 with locating hole

Item selection/filter

Order No.	Kind of fastening	X	A=Handle length	A1	D1	D2	D3	H	H1	CAD	Acc.	Price	Order
06420-108	reamed hole	8	50	63	16	20	8	33	12			on request
06420-110	reamed hole	10	66	80	20	20	9	40	14,5			on request
06420-112	reamed hole	12	82,5	100	25	25	11	50	18,5			on request
06420-116	reamed hole	16	103	125	32	32	15	63	24			on request

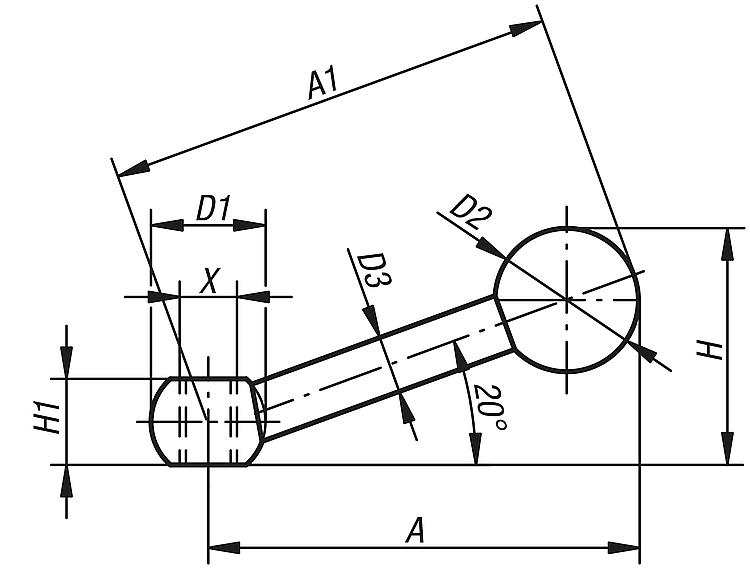

Ball handles DIN 6337 with internal thread

More information

Drawings

Ball handles DIN 6337 with internal thread

Item selection/filter

Order No.	Kind of fastening	X	A=Handle length	A1	D1	D2	D3	H	H1	CAD	Acc.	Price	Order
06420-208	internal thread	M8	50	63	16	20	8	33	12			on request
06420-210	internal thread	M10	66	80	20	20	9	40	14,5			on request
06420-212	internal thread	M12	82,5	100	25	25	11	50	18,5			on request
06420-216	internal thread	M16	103	125	32	32	15	63	24			on request
