        Clamping levers, die-cast zinc with internal thread and clamping force intensifier, threaded insert black oxidised steel

Item description/product images

Show/filter all items

DescriptionProduct description:By using clamping levers with integrated clamping force intensifier, the clamping force can be increased by up to 75% compared to standard clamping levers.

Furthermore, this product can also be used by persons with limited hand strength (e.g. in rehabilitation) to achieve comparable clamping forces with less effort. Less effort is also needed to loosen the clamping lever.

The increase in clamping force is achieved by the integral needle roller thrust bearing, which generates very low surface friction on a rigid contact surface during clamping. The hardened thrust washers are designed for high clamping forces and the bearing with its high load rating guarantees a long service life.

The clamped component is permanently protected by the large, stationary contact surface. A washer is no longer required.Material:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle plastic-coated or high-gloss trivalent passivated
Steel parts, black oxidised.
Axial needle bearing with hardened and ground thrust washer.Type of operation:In the default position, the handle is engaged with the threaded insert through a toothed ring. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.Application:Machine, equipment and plant construction, rehabilitation sector.Assembly:The screw-in depth must be at least 2 x the thread diameter and the thread should be lubricated lightly during installation.Advantages:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring.On request:Other colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06450-10 Clamping levers, die-cast zinc with internal thread and clamping force intensifier, threaded insert black oxidised steel

270 kB

Drawings (total overview)

Clamping levers, zinc with internal thread and clamping force intensifier, satin finish

More information

Drawings

Clamping levers, zinc with internal thread and clamping force intensifier, satin finish

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	D2	H	H2	H3	H4	A	A1	B	T	T1	Price
06450-10-2081	jet black RAL 9005	satin finish	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-3101	jet black RAL 9005	satin finish	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-4101	jet black RAL 9005	satin finish	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-5121	jet black RAL 9005	satin finish	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request

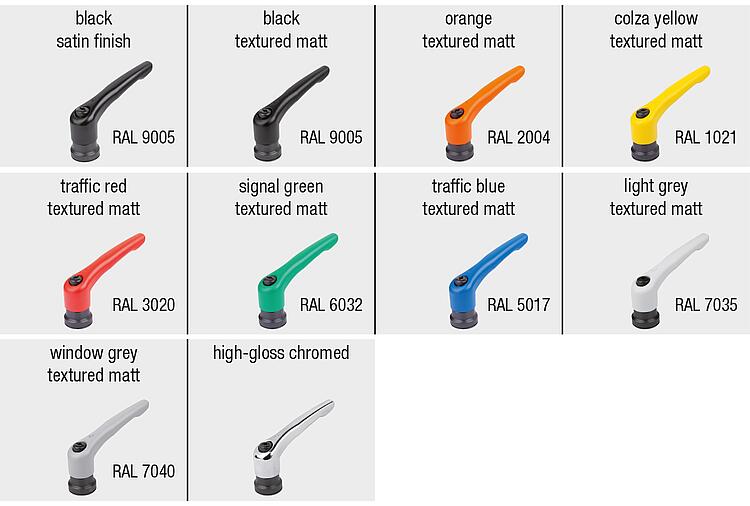

Clamping levers, zinc with internal thread and clamping force intensifier, matt textured

More information

Drawings

Clamping levers, zinc with internal thread and clamping force intensifier, matt textured

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	D2	H	H2	H3	H4	A	A1	B	T	T1	Price
06450-10-208181	jet black RAL 9005	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208182	orange RAL 2004	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208183	colza yellow RAL 1021	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208184	traffic red RAL 3020	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208185	signal green RAL 6032	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208186	traffic blue RAL 5017	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208187	light grey RAL 7035	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-208188	window grey RAL 7040	textured matt	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-310181	jet black RAL 9005	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310182	orange RAL 2004	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310183	colza yellow RAL 1021	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310184	traffic red RAL 3020	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310185	signal green RAL 6032	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310186	traffic blue RAL 5017	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310187	light grey RAL 7035	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-310188	window grey RAL 7040	textured matt	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-410181	jet black RAL 9005	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410182	orange RAL 2004	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410183	colza yellow RAL 1021	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410184	traffic red RAL 3020	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410185	signal green RAL 6032	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410186	traffic blue RAL 5017	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410187	light grey RAL 7035	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-410188	window grey RAL 7040	textured matt	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-512181	jet black RAL 9005	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512182	orange RAL 2004	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512183	colza yellow RAL 1021	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512184	traffic red RAL 3020	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512185	signal green RAL 6032	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512186	traffic blue RAL 5017	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512187	light grey RAL 7035	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
06450-10-512188	window grey RAL 7040	textured matt	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request

Clamping levers, zinc with internal thread and clamping force intensifier, high-gloss chromed

More information

Drawings

Clamping levers, zinc with internal thread and clamping force intensifier, high-gloss chromed

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	D2	H	H2	H3	H4	A	A1	B	T	T1	Price
06450-10-2086	silver	high-gloss chromed	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	on request
06450-10-3106	silver	high-gloss chromed	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	on request
06450-10-4106	silver	high-gloss chromed	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	on request
06450-10-5126	silver	high-gloss chromed	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	on request
