        Clamping levers, plastic with internal thread and push button, threaded insert black oxidised steel

Item description/product images

DescriptionMaterial:Handle fibreglass reinforced plastic, toothed ring die-cast zinc.
Steel parts grade 5.8.
Push button plastic (POM).Version:Steel parts black oxidised.Note:∆ Enter the desired lever colour here.
The standard colours are:
Black grey clamping lever, traffic red push button.
Orange clamping lever, black grey push button.
Traffic red clamping lever, black grey push button.On request:Other threads and special versions.
Dimension “H1” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06600 Clamping levers, plastic with internal thread and push button, threaded insert black oxidised steel

359 kB

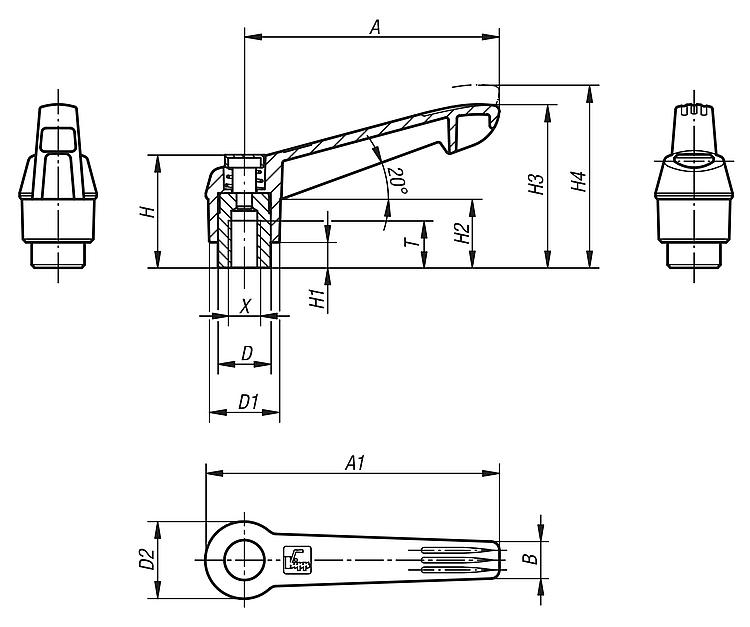

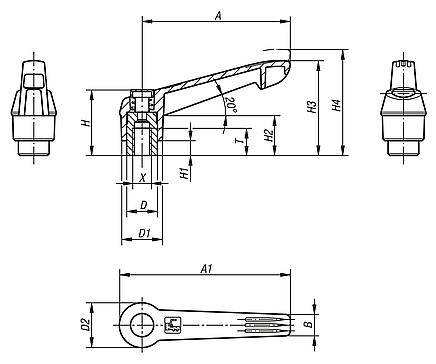

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	Main colour	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06600-71104	black grey RAL 7021	1	M4	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-72104	orange RAL 2004	1	M4	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-73104	traffic red RAL 3020	1	M4	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-71105	black grey RAL 7021	1	M5	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-72105	orange RAL 2004	1	M5	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-73105	traffic red RAL 3020	1	M5	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-71106	black grey RAL 7021	1	M6	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-72106	orange RAL 2004	1	M6	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-73106	traffic red RAL 3020	1	M6	9	10	13	14,5	25,5	4	15	30	33,5	40	47	7,5	16	on request
06600-71206	black grey RAL 7021	2	M6	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-72206	orange RAL 2004	2	M6	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-73206	traffic red RAL 3020	2	M6	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-71208	black grey RAL 7021	2	M8	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-72208	orange RAL 2004	2	M8	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-73208	traffic red RAL 3020	2	M8	12	13,5	18	19,5	29,5	6,5	17,5	41,5	45,5	65	75	9,5	20	on request
06600-71308	black grey RAL 7021	3	M8	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-72308	orange RAL 2004	3	M8	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-73308	traffic red RAL 3020	3	M8	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-71310	black grey RAL 7021	3	M10	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-72310	orange RAL 2004	3	M10	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-73310	traffic red RAL 3020	3	M10	14	16	21,5	23	38,5	10	24	53,5	58	80	91,5	11	22	on request
06600-71410	black grey RAL 7021	4	M10	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-72410	orange RAL 2004	4	M10	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-73410	traffic red RAL 3020	4	M10	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-71412	black grey RAL 7021	4	M12	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-72412	orange RAL 2004	4	M12	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-73412	traffic red RAL 3020	4	M12	17	19	25,5	27,5	44,6	10	26	61	66	95	109	13	24	on request
06600-71512	black grey RAL 7021	5	M12	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
06600-72512	orange RAL 2004	5	M12	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
06600-73512	traffic red RAL 3020	5	M12	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
06600-71516	black grey RAL 7021	5	M16	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
06600-72516	orange RAL 2004	5	M16	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
06600-73516	traffic red RAL 3020	5	M16	23	23	30	32,5	50,6	12	33	72	77	110	126	15,5	26	on request
