        Clamping levers, die-cast zinc with external thread, threaded insert black oxidised steel

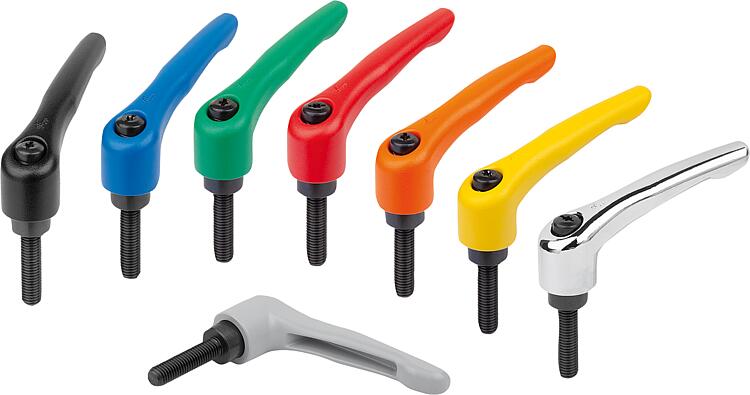

Item description/product images

DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated or high-gloss chromed.
Steel parts black oxidised.Note:Where L ≥ 60 mm the thread length is always 60 mm.
On request:Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06460 Clamping levers, die-cast zinc with external thread, threaded insert black oxidised steel

608 kB

Drawings (total overview)

Clamping levers with external thread, satin finish

More information

Drawings

Clamping levers with external thread, satin finish

Item selection/filter

	jet black RAL 9005	satin finish	9 0 1 2 3 4 5	M3 M4 M5 M6 M8 M10 M12 M16	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	6 10 15 20 25 30 35 40 45 50 55 60 70 80 90				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06460-9031X6	jet black RAL 9005	satin finish	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-9031X10	jet black RAL 9005	satin finish	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9031X15	jet black RAL 9005	satin finish	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9031X20	jet black RAL 9005	satin finish	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9041X10	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9041X15	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9041X20	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9041X25	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-9041X30	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-9041X35	jet black RAL 9005	satin finish	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-9051X10	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9051X15	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9051X20	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9051X25	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-9051X30	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-9051X35	jet black RAL 9005	satin finish	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-0031X6	jet black RAL 9005	satin finish	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-0031X10	jet black RAL 9005	satin finish	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0031X15	jet black RAL 9005	satin finish	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0031X20	jet black RAL 9005	satin finish	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0041X10	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0041X15	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0041X20	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0041X25	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-0041X30	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-0041X35	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-0041X40	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-0041X45	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-0041X50	jet black RAL 9005	satin finish	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-0051X10	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0051X15	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0051X20	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0051X25	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-0051X30	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-0051X35	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-0051X40	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-0051X45	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-0051X50	jet black RAL 9005	satin finish	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-1051X10	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-1051X15	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-1051X20	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-1051X25	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-1051X30	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-1051X35	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-1051X40	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-1051X45	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-1051X50	jet black RAL 9005	satin finish	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-1061X10	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-1061X15	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-1061X20	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-1061X25	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-1061X30	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-1061X35	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-1061X40	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-1061X45	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-1061X50	jet black RAL 9005	satin finish	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-2061X15	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2061X20	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2061X25	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2061X30	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2061X35	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2061X40	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2061X45	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2061X50	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2061X55	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2061X60	jet black RAL 9005	satin finish	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-2081X15	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2081X20	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2081X25	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2081X30	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2081X35	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2081X40	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2081X45	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2081X50	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2081X55	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2081X60	jet black RAL 9005	satin finish	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-2101X15	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2101X20	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2101X25	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2101X30	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2101X35	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2101X40	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2101X45	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2101X50	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2101X55	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2101X60	jet black RAL 9005	satin finish	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-3081X15	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-3081X20	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-3081X25	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-3081X30	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-3081X35	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-3081X40	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-3081X45	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-3081X50	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-3081X55	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-3081X60	jet black RAL 9005	satin finish	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-3101X15	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-3101X20	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-3101X25	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-3101X30	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-3101X35	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-3101X40	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-3101X45	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-3101X50	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-3101X55	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-3101X60	jet black RAL 9005	satin finish	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-4101X20	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-4101X25	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-4101X30	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-4101X35	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-4101X40	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-4101X45	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-4101X50	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-4101X55	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-4101X60	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-4101X70	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-4101X80	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-4101X90	jet black RAL 9005	satin finish	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-4121X20	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-4121X25	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-4121X30	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-4121X35	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-4121X40	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-4121X45	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-4121X50	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-4121X55	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-4121X60	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-4121X70	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-4121X80	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-4121X90	jet black RAL 9005	satin finish	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-5121X25	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-5121X30	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-5121X35	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-5121X40	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-5121X45	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-5121X50	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-5121X55	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-5121X60	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-5121X70	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-5121X80	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-5121X90	jet black RAL 9005	satin finish	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-5161X25	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-5161X30	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-5161X35	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-5161X40	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-5161X45	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-5161X50	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-5161X55	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-5161X60	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-5161X70	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-5161X80	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-5161X90	jet black RAL 9005	satin finish	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request

Clamping levers with external thread, textured matt finish

More information

Drawings

Clamping levers with external thread, textured matt finish

Item selection/filter

	jet black RAL 9005 orange RAL 2004 colza yellow RAL 1021 traffic red RAL 3020 signal green RAL 6032 traffic blue RAL 5017 light grey RAL 7035 window grey RAL 7040	textured matt	9 0 1 2 3 4 5	M3 M4 M5 M6 M8 M10 M12 M16	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	6 10 15 20 25 30 35 40 45 50 55 60 70 80 90				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06460-903181X6	jet black RAL 9005	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903181X10	jet black RAL 9005	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903181X15	jet black RAL 9005	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903181X20	jet black RAL 9005	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903182X6	orange RAL 2004	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903182X10	orange RAL 2004	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903182X15	orange RAL 2004	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903182X20	orange RAL 2004	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903183X6	colza yellow RAL 1021	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903183X10	colza yellow RAL 1021	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903183X15	colza yellow RAL 1021	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903183X20	colza yellow RAL 1021	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903184X6	traffic red RAL 3020	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903184X10	traffic red RAL 3020	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903184X15	traffic red RAL 3020	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903184X20	traffic red RAL 3020	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903185X6	signal green RAL 6032	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903185X10	signal green RAL 6032	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903185X15	signal green RAL 6032	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903185X20	signal green RAL 6032	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903186X6	traffic blue RAL 5017	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903186X10	traffic blue RAL 5017	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903186X15	traffic blue RAL 5017	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903186X20	traffic blue RAL 5017	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903187X6	light grey RAL 7035	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903187X10	light grey RAL 7035	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903187X15	light grey RAL 7035	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903187X20	light grey RAL 7035	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-903188X6	window grey RAL 7040	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903188X10	window grey RAL 7040	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903188X15	window grey RAL 7040	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903188X20	window grey RAL 7040	textured matt	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904181X10	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904181X15	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904181X20	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904181X25	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904181X30	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904181X35	jet black RAL 9005	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904182X10	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904182X15	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904182X20	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904182X25	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904182X30	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904182X35	orange RAL 2004	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904183X10	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904183X15	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904183X20	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904183X25	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904183X30	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904183X35	colza yellow RAL 1021	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904184X10	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904184X15	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904184X20	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904184X25	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904184X30	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904184X35	traffic red RAL 3020	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904185X10	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904185X15	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904185X20	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904185X25	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904185X30	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904185X35	signal green RAL 6032	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904186X10	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904186X15	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904186X20	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904186X25	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904186X30	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904186X35	traffic blue RAL 5017	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904187X10	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904187X15	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904187X20	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904187X25	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904187X30	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904187X35	light grey RAL 7035	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-904188X10	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904188X15	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904188X20	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904188X25	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904188X30	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904188X35	window grey RAL 7040	textured matt	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905181X10	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905181X15	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905181X20	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905181X25	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905181X30	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905181X35	jet black RAL 9005	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905182X10	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905182X15	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905182X20	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905182X25	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905182X30	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905182X35	orange RAL 2004	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905183X10	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905183X15	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905183X20	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905183X25	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905183X30	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905183X35	colza yellow RAL 1021	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905184X10	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905184X15	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905184X20	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905184X25	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905184X30	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905184X35	traffic red RAL 3020	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905185X10	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905185X15	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905185X20	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905185X25	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905185X30	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905185X35	signal green RAL 6032	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905186X10	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905186X15	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905186X20	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905186X25	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905186X30	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905186X35	traffic blue RAL 5017	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905187X10	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905187X15	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905187X20	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905187X25	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905187X30	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905187X35	light grey RAL 7035	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905188X10	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905188X15	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905188X20	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905188X25	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905188X30	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905188X35	window grey RAL 7040	textured matt	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-003181X6	jet black RAL 9005	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003181X10	jet black RAL 9005	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003181X15	jet black RAL 9005	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003181X20	jet black RAL 9005	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003182X6	orange RAL 2004	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003182X10	orange RAL 2004	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003182X15	orange RAL 2004	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003182X20	orange RAL 2004	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003183X6	colza yellow RAL 1021	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003183X10	colza yellow RAL 1021	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003183X15	colza yellow RAL 1021	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003183X20	colza yellow RAL 1021	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003184X6	traffic red RAL 3020	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003184X10	traffic red RAL 3020	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003184X15	traffic red RAL 3020	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003184X20	traffic red RAL 3020	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003185X6	signal green RAL 6032	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003185X10	signal green RAL 6032	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003185X15	signal green RAL 6032	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003185X20	signal green RAL 6032	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003186X6	traffic blue RAL 5017	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003186X10	traffic blue RAL 5017	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003186X15	traffic blue RAL 5017	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003186X20	traffic blue RAL 5017	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003187X6	light grey RAL 7035	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003187X10	light grey RAL 7035	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003187X15	light grey RAL 7035	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003187X20	light grey RAL 7035	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-003188X6	window grey RAL 7040	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003188X10	window grey RAL 7040	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003188X15	window grey RAL 7040	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003188X20	window grey RAL 7040	textured matt	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004181X10	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004181X15	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004181X20	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004181X25	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004181X30	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004181X35	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004181X40	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004181X45	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004181X50	jet black RAL 9005	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004182X10	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004182X15	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004182X20	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004182X25	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004182X30	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004182X35	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004182X40	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004182X45	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004182X50	orange RAL 2004	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004183X10	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004183X15	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004183X20	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004183X25	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004183X30	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004183X35	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004183X40	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004183X45	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004183X50	colza yellow RAL 1021	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004184X10	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004184X15	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004184X20	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004184X25	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004184X30	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004184X35	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004184X40	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004184X45	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004184X50	traffic red RAL 3020	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004185X10	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004185X15	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004185X20	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004185X25	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004185X30	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004185X35	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004185X40	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004185X45	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004185X50	signal green RAL 6032	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004186X10	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004186X15	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004186X20	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004186X25	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004186X30	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004186X35	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004186X40	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004186X45	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004186X50	traffic blue RAL 5017	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004187X10	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004187X15	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004187X20	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004187X25	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004187X30	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004187X35	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004187X40	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004187X45	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004187X50	light grey RAL 7035	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-004188X10	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004188X15	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004188X20	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004188X25	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004188X30	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004188X35	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004188X40	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004188X45	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004188X50	window grey RAL 7040	textured matt	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005181X10	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005181X15	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005181X20	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005181X25	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005181X30	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005181X35	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005181X40	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005181X45	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005181X50	jet black RAL 9005	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005182X10	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005182X15	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005182X20	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005182X25	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005182X30	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005182X35	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005182X40	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005182X45	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005182X50	orange RAL 2004	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005183X10	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005183X15	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005183X20	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005183X25	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005183X30	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005183X35	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005183X40	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005183X45	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005183X50	colza yellow RAL 1021	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005184X10	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005184X15	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005184X20	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005184X25	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005184X30	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005184X35	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005184X40	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005184X45	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005184X50	traffic red RAL 3020	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005185X10	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005185X15	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005185X20	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005185X25	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005185X30	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005185X35	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005185X40	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005185X45	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005185X50	signal green RAL 6032	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005186X10	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005186X15	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005186X20	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005186X25	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005186X30	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005186X35	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005186X40	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005186X45	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005186X50	traffic blue RAL 5017	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005187X10	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005187X15	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005187X20	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005187X25	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005187X30	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005187X35	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005187X40	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005187X45	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005187X50	light grey RAL 7035	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005188X10	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005188X15	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005188X20	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005188X25	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005188X30	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005188X35	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005188X40	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005188X45	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005188X50	window grey RAL 7040	textured matt	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-105181X10	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105181X15	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105181X20	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105181X25	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105181X30	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105181X35	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105181X40	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105181X45	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105181X50	jet black RAL 9005	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105182X10	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105182X15	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105182X20	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105182X25	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105182X30	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105182X35	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105182X40	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105182X45	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105182X50	orange RAL 2004	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105183X10	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105183X15	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105183X20	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105183X25	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105183X30	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105183X35	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105183X40	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105183X45	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105183X50	colza yellow RAL 1021	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105184X10	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105184X15	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105184X20	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105184X25	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105184X30	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105184X35	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105184X40	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105184X45	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105184X50	traffic red RAL 3020	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105185X10	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105185X15	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105185X20	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105185X25	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105185X30	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105185X35	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105185X40	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105185X45	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105185X50	signal green RAL 6032	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105186X10	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105186X15	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105186X20	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105186X25	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105186X30	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105186X35	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105186X40	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105186X45	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105186X50	traffic blue RAL 5017	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105187X10	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105187X15	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105187X20	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105187X25	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105187X30	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105187X35	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105187X40	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105187X45	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105187X50	light grey RAL 7035	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-105188X10	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105188X15	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105188X20	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105188X25	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105188X30	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105188X35	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105188X40	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105188X45	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105188X50	window grey RAL 7040	textured matt	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106181X10	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106181X15	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106181X20	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106181X25	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106181X30	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106181X35	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106181X40	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106181X45	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106181X50	jet black RAL 9005	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106182X10	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106182X15	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106182X20	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106182X25	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106182X30	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106182X35	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106182X40	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106182X45	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106182X50	orange RAL 2004	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106183X10	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106183X15	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106183X20	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106183X25	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106183X30	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106183X35	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106183X40	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106183X45	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106183X50	colza yellow RAL 1021	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106184X10	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106184X15	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106184X20	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106184X25	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106184X30	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106184X35	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106184X40	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106184X45	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106184X50	traffic red RAL 3020	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106185X10	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106185X15	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106185X20	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106185X25	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106185X30	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106185X35	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106185X40	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106185X45	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106185X50	signal green RAL 6032	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106186X10	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106186X15	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106186X20	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106186X25	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106186X30	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106186X35	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106186X40	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106186X45	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106186X50	traffic blue RAL 5017	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106187X10	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106187X15	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106187X20	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106187X25	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106187X30	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106187X35	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106187X40	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106187X45	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106187X50	light grey RAL 7035	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106188X10	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106188X15	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106188X20	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106188X25	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106188X30	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106188X35	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106188X40	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106188X45	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106188X50	window grey RAL 7040	textured matt	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-206181X15	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206181X20	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206181X25	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206181X30	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206181X35	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206181X40	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206181X45	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206181X50	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206181X55	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206181X60	jet black RAL 9005	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206182X15	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206182X20	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206182X25	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206182X30	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206182X35	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206182X40	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206182X45	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206182X50	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206182X55	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206182X60	orange RAL 2004	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206183X15	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206183X20	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206183X25	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206183X30	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206183X35	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206183X40	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206183X45	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206183X50	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206183X55	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206183X60	colza yellow RAL 1021	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206184X15	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206184X20	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206184X25	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206184X30	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206184X35	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206184X40	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206184X45	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206184X50	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206184X55	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206184X60	traffic red RAL 3020	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206185X15	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206185X20	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206185X25	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206185X30	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206185X35	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206185X40	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206185X45	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206185X50	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206185X55	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206185X60	signal green RAL 6032	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206186X15	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206186X20	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206186X25	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206186X30	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206186X35	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206186X40	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206186X45	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206186X50	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206186X55	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206186X60	traffic blue RAL 5017	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206187X15	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206187X20	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206187X25	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206187X30	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206187X35	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206187X40	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206187X45	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206187X50	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206187X55	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206187X60	light grey RAL 7035	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-206188X15	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206188X20	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206188X25	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206188X30	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206188X35	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206188X40	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206188X45	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206188X50	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206188X55	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206188X60	window grey RAL 7040	textured matt	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208181X15	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208181X20	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208181X25	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208181X30	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208181X35	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208181X40	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208181X45	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208181X50	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208181X55	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208181X60	jet black RAL 9005	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208182X15	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208182X20	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208182X25	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208182X30	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208182X35	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208182X40	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208182X45	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208182X50	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208182X55	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208182X60	orange RAL 2004	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208183X15	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208183X20	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208183X25	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208183X30	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208183X35	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208183X40	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208183X45	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208183X50	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208183X55	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208183X60	colza yellow RAL 1021	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208184X15	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208184X20	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208184X25	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208184X30	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208184X35	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208184X40	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208184X45	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208184X50	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208184X55	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208184X60	traffic red RAL 3020	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208185X15	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208185X20	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208185X25	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208185X30	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208185X35	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208185X40	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208185X45	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208185X50	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208185X55	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208185X60	signal green RAL 6032	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208186X15	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208186X20	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208186X25	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208186X30	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208186X35	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208186X40	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208186X45	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208186X50	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208186X55	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208186X60	traffic blue RAL 5017	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208187X15	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208187X20	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208187X25	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208187X30	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208187X35	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208187X40	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208187X45	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208187X50	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208187X55	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208187X60	light grey RAL 7035	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208188X15	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208188X20	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208188X25	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208188X30	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208188X35	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208188X40	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208188X45	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208188X50	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208188X55	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208188X60	window grey RAL 7040	textured matt	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210181X15	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210181X20	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210181X25	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210181X30	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210181X35	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210181X40	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210181X45	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210181X50	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210181X55	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210181X60	jet black RAL 9005	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210182X15	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210182X20	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210182X25	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210182X30	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210182X35	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210182X40	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210182X45	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210182X50	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210182X55	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210182X60	orange RAL 2004	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210183X15	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210183X20	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210183X25	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210183X30	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210183X35	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210183X40	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210183X45	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210183X50	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210183X55	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210183X60	colza yellow RAL 1021	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210184X15	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210184X20	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210184X25	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210184X30	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210184X35	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210184X40	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210184X45	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210184X50	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210184X55	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210184X60	traffic red RAL 3020	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210185X15	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210185X20	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210185X25	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210185X30	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210185X35	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210185X40	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210185X45	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210185X50	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210185X55	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210185X60	signal green RAL 6032	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210186X15	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210186X20	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210186X25	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210186X30	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210186X35	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210186X40	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210186X45	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210186X50	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210186X55	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210186X60	traffic blue RAL 5017	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210187X15	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210187X20	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210187X25	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210187X30	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210187X35	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210187X40	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210187X45	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210187X50	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210187X55	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210187X60	light grey RAL 7035	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210188X15	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210188X20	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210188X25	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210188X30	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210188X35	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210188X40	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210188X45	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210188X50	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210188X55	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210188X60	window grey RAL 7040	textured matt	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-308181X15	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308181X20	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308181X25	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308181X30	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308181X35	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308181X40	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308181X45	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308181X50	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308181X55	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308181X60	jet black RAL 9005	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308182X15	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308182X20	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308182X25	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308182X30	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308182X35	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308182X40	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308182X45	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308182X50	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308182X55	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308182X60	orange RAL 2004	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308183X15	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308183X20	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308183X25	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308183X30	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308183X35	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308183X40	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308183X45	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308183X50	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308183X55	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308183X60	colza yellow RAL 1021	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308184X15	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308184X20	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308184X25	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308184X30	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308184X35	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308184X40	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308184X45	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308184X50	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308184X55	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308184X60	traffic red RAL 3020	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308185X15	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308185X20	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308185X25	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308185X30	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308185X35	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308185X40	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308185X45	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308185X50	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308185X55	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308185X60	signal green RAL 6032	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308186X15	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308186X20	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308186X25	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308186X30	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308186X35	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308186X40	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308186X45	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308186X50	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308186X55	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308186X60	traffic blue RAL 5017	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308187X15	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308187X20	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308187X25	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308187X30	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308187X35	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308187X40	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308187X45	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308187X50	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308187X55	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308187X60	light grey RAL 7035	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-308188X15	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308188X20	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308188X25	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308188X30	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308188X35	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308188X40	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308188X45	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308188X50	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308188X55	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308188X60	window grey RAL 7040	textured matt	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310181X15	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310181X20	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310181X25	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310181X30	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310181X35	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310181X40	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310181X45	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310181X50	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310181X55	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310181X60	jet black RAL 9005	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310182X15	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310182X20	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310182X25	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310182X30	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310182X35	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310182X40	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310182X45	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310182X50	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310182X55	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310182X60	orange RAL 2004	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310183X15	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310183X20	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310183X25	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310183X30	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310183X35	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310183X40	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310183X45	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310183X50	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310183X55	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310183X60	colza yellow RAL 1021	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310184X15	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310184X20	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310184X25	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310184X30	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310184X35	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310184X40	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310184X45	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310184X50	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310184X55	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310184X60	traffic red RAL 3020	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310185X15	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310185X20	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310185X25	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310185X30	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310185X35	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310185X40	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310185X45	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310185X50	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310185X55	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310185X60	signal green RAL 6032	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310186X15	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310186X20	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310186X25	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310186X30	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310186X35	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310186X40	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310186X45	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310186X50	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310186X55	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310186X60	traffic blue RAL 5017	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310187X15	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310187X20	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310187X25	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310187X30	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310187X35	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310187X40	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310187X45	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310187X50	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310187X55	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310187X60	light grey RAL 7035	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310188X15	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310188X20	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310188X25	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310188X30	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310188X35	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310188X40	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310188X45	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310188X50	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310188X55	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310188X60	window grey RAL 7040	textured matt	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-410181X20	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410181X25	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410181X30	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410181X35	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410181X40	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410181X45	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410181X50	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410181X55	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410181X60	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410181X70	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410181X80	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410181X90	jet black RAL 9005	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410182X20	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410182X25	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410182X30	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410182X35	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410182X40	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410182X45	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410182X50	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410182X55	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410182X60	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410182X70	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410182X80	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410182X90	orange RAL 2004	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410183X20	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410183X25	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410183X30	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410183X35	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410183X40	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410183X45	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410183X50	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410183X55	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410183X60	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410183X70	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410183X80	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410183X90	colza yellow RAL 1021	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410184X20	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410184X25	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410184X30	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410184X35	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410184X40	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410184X45	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410184X50	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410184X55	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410184X60	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410184X70	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410184X80	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410184X90	traffic red RAL 3020	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410185X20	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410185X25	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410185X30	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410185X35	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410185X40	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410185X45	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410185X50	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410185X55	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410185X60	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410185X70	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410185X80	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410185X90	signal green RAL 6032	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410186X20	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410186X25	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410186X30	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410186X35	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410186X40	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410186X45	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410186X50	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410186X55	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410186X60	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410186X70	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410186X80	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410186X90	traffic blue RAL 5017	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410187X20	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410187X25	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410187X30	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410187X35	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410187X40	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410187X45	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410187X50	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410187X55	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410187X60	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410187X70	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410187X80	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410187X90	light grey RAL 7035	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-410188X20	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410188X25	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410188X30	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410188X35	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410188X40	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410188X45	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410188X50	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410188X55	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410188X60	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410188X70	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410188X80	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410188X90	window grey RAL 7040	textured matt	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412181X20	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412181X25	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412181X30	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412181X35	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412181X40	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412181X45	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412181X50	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412181X55	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412181X60	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412181X70	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412181X80	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412181X90	jet black RAL 9005	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412182X20	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412182X25	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412182X30	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412182X35	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412182X40	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412182X45	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412182X50	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412182X55	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412182X60	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412182X70	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412182X80	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412182X90	orange RAL 2004	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412183X20	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412183X25	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412183X30	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412183X35	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412183X40	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412183X45	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412183X50	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412183X55	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412183X60	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412183X70	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412183X80	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412183X90	colza yellow RAL 1021	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412184X20	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412184X25	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412184X30	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412184X35	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412184X40	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412184X45	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412184X50	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412184X55	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412184X60	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412184X70	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412184X80	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412184X90	traffic red RAL 3020	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412185X20	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412185X25	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412185X30	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412185X35	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412185X40	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412185X45	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412185X50	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412185X55	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412185X60	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412185X70	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412185X80	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412185X90	signal green RAL 6032	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412186X20	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412186X25	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412186X30	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412186X35	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412186X40	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412186X45	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412186X50	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412186X55	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412186X60	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412186X70	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412186X80	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412186X90	traffic blue RAL 5017	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412187X20	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412187X25	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412187X30	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412187X35	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412187X40	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412187X45	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412187X50	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412187X55	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412187X60	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412187X70	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412187X80	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412187X90	light grey RAL 7035	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412188X20	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412188X25	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412188X30	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412188X35	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412188X40	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-412188X45	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412188X50	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412188X55	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412188X60	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412188X70	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412188X80	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412188X90	window grey RAL 7040	textured matt	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-512181X25	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512181X30	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512181X35	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512181X40	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512181X45	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512181X50	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512181X55	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512181X60	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512181X70	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512181X80	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512181X90	jet black RAL 9005	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512182X25	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512182X30	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512182X35	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512182X40	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512182X45	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512182X50	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512182X55	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512182X60	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512182X70	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512182X80	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512182X90	orange RAL 2004	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512183X25	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512183X30	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512183X35	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512183X40	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512183X45	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512183X50	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512183X55	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512183X60	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512183X70	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512183X80	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512183X90	colza yellow RAL 1021	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512184X25	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512184X30	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512184X35	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512184X40	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512184X45	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512184X50	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512184X55	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512184X60	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512184X70	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512184X80	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512184X90	traffic red RAL 3020	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512185X25	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512185X30	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512185X35	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512185X40	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512185X45	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512185X50	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512185X55	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512185X60	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512185X70	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512185X80	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512185X90	signal green RAL 6032	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512186X25	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512186X30	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512186X35	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512186X40	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512186X45	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512186X50	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512186X55	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512186X60	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512186X70	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512186X80	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512186X90	traffic blue RAL 5017	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512187X25	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512187X30	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512187X35	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512187X40	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512187X45	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512187X50	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512187X55	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512187X60	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512187X70	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512187X80	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512187X90	light grey RAL 7035	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-512188X25	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512188X30	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512188X35	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512188X40	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512188X45	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512188X50	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512188X55	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512188X60	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512188X70	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512188X80	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512188X90	window grey RAL 7040	textured matt	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516181X25	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516181X30	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516181X35	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516181X40	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516181X45	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516181X50	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516181X55	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516181X60	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516181X70	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516181X80	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516181X90	jet black RAL 9005	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516182X25	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516182X30	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516182X35	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516182X40	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516182X45	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516182X50	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516182X55	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516182X60	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516182X70	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516182X80	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516182X90	orange RAL 2004	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516183X25	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516183X30	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516183X35	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516183X40	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516183X45	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516183X50	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516183X55	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516183X60	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516183X70	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516183X80	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516183X90	colza yellow RAL 1021	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516184X25	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516184X30	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516184X35	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516184X40	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516184X45	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516184X50	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516184X55	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516184X60	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516184X70	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516184X80	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516184X90	traffic red RAL 3020	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516185X25	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516185X30	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516185X35	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516185X40	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516185X45	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516185X50	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516185X55	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516185X60	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516185X70	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516185X80	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516185X90	signal green RAL 6032	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516186X25	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516186X30	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516186X35	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516186X40	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516186X45	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516186X50	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516186X55	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516186X60	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516186X70	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516186X80	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516186X90	traffic blue RAL 5017	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516187X25	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516187X30	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516187X35	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516187X40	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516187X45	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516187X50	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516187X55	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516187X60	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516187X70	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516187X80	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516187X90	light grey RAL 7035	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516188X25	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516188X30	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516188X35	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516188X40	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516188X45	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516188X50	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516188X55	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516188X60	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516188X70	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516188X80	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516188X90	window grey RAL 7040	textured matt	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request

Clamping levers with external thread, bright

More information

Drawings

Clamping levers with external thread, bright

Item selection/filter

	bright	9 0 1 2 3 4 5	M3 M4 M5 M6 M8 M10 M12 M16	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	6 10 15 20 25 30 35 40 45 50 55 60 70 80 90				Reset
Order No.	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06460-903008X6	bright	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-903008X10	bright	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-903008X15	bright	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-903008X20	bright	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904008X10	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-904008X15	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-904008X20	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-904008X25	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-904008X30	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-904008X35	bright	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-905008X10	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-905008X15	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-905008X20	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-905008X25	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-905008X30	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-905008X35	bright	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-003008X6	bright	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-003008X10	bright	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-003008X15	bright	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-003008X20	bright	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004008X10	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-004008X15	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-004008X20	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-004008X25	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-004008X30	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-004008X35	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-004008X40	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-004008X45	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-004008X50	bright	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-005008X10	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-005008X15	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-005008X20	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-005008X25	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-005008X30	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-005008X35	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-005008X40	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-005008X45	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-005008X50	bright	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-105008X10	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-105008X15	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-105008X20	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-105008X25	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-105008X30	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-105008X35	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-105008X40	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-105008X45	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-105008X50	bright	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-106008X10	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-106008X15	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-106008X20	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-106008X25	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-106008X30	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-106008X35	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-106008X40	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-106008X45	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-106008X50	bright	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-206008X15	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-206008X20	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-206008X25	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-206008X30	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-206008X35	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-206008X40	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-206008X45	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-206008X50	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-206008X55	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-206008X60	bright	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-208008X15	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-208008X20	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-208008X25	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-208008X30	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-208008X35	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-208008X40	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-208008X45	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-208008X50	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-208008X55	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-208008X60	bright	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-210008X15	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-210008X20	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-210008X25	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-210008X30	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-210008X35	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-210008X40	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-210008X45	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-210008X50	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-210008X55	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-210008X60	bright	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-308008X15	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-308008X20	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-308008X25	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-308008X30	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-308008X35	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-308008X40	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-308008X45	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-308008X50	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-308008X55	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-308008X60	bright	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-310008X15	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-310008X20	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-310008X25	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-310008X30	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-310008X35	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-310008X40	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-310008X45	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-310008X50	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-310008X55	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-310008X60	bright	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-412008X40	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410008X20	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-410008X25	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-410008X30	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-410008X35	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-410008X40	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-410008X45	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-410008X50	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-410008X55	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-410008X60	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-410008X70	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-410008X80	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-410008X90	bright	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-412008X20	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-412008X25	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-412008X30	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-412008X35	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-412008X45	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-412008X50	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-412008X55	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-412008X60	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-412008X70	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-412008X80	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-412008X90	bright	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-512008X25	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-512008X30	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-512008X35	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-512008X40	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-512008X45	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-512008X50	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-512008X55	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-512008X60	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-516008X25	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-516008X30	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-516008X35	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-516008X40	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-516008X45	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-516008X50	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-516008X55	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-516008X60	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-512008X70	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-512008X80	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-512008X90	bright	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-516008X70	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-516008X80	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-516008X90	bright	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request

Clamping levers external thread, high-gloss chromed

More information

Drawings

Clamping levers external thread, high-gloss chromed

Item selection/filter

	silver	high-gloss chromed	9 0 1 2 3 4 5	M3 M4 M5 M6 M8 M10 M12 M16	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	6 10 15 20 25 30 35 40 45 50 55 60 70 80 90				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06460-9036X6	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	6			on request
06460-9036X10	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9036X15	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9036X20	silver	high-gloss chromed	9	M3	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9046X10	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9046X15	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9046X20	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9046X25	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-9046X30	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-9046X35	silver	high-gloss chromed	9	M4	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-9056X10	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	10			on request
06460-9056X15	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06460-9056X20	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06460-9056X25	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06460-9056X30	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06460-9056X35	silver	high-gloss chromed	9	M5	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06460-0036X6	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	6			on request
06460-0036X10	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0036X15	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0036X20	silver	high-gloss chromed	0	M3	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0046X10	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0046X15	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0046X20	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0046X25	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-0046X30	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-0046X35	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-0046X40	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-0046X45	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-0046X50	silver	high-gloss chromed	0	M4	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-0056X10	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06460-0056X15	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06460-0056X20	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06460-0056X25	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06460-0056X30	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06460-0056X35	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	35			on request
06460-0056X40	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06460-0056X45	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	45			on request
06460-0056X50	silver	high-gloss chromed	0	M5	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06460-1056X10	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-1056X15	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-1056X20	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-1056X25	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-1056X30	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-1056X35	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-1056X40	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-1056X45	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-1056X50	silver	high-gloss chromed	1	M5	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-1066X10	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06460-1066X15	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06460-1066X20	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06460-1066X25	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06460-1066X30	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06460-1066X35	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	35			on request
06460-1066X40	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06460-1066X45	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	45			on request
06460-1066X50	silver	high-gloss chromed	1	M6	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06460-2066X15	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2066X20	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2066X25	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2066X30	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2066X35	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2066X40	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2066X45	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2066X50	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2066X55	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2066X60	silver	high-gloss chromed	2	M6	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-2086X15	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2086X20	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2086X25	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2086X30	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2086X35	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2086X40	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2086X45	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2086X50	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2086X55	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2086X60	silver	high-gloss chromed	2	M8	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-2106X15	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06460-2106X20	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06460-2106X25	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06460-2106X30	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06460-2106X35	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	35			on request
06460-2106X40	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06460-2106X45	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	45			on request
06460-2106X50	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06460-2106X55	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	55			on request
06460-2106X60	silver	high-gloss chromed	2	M10	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06460-3086X15	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-3086X20	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-3086X25	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-3086X30	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-3086X35	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-3086X40	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-3086X45	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-3086X50	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-3086X55	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-3086X60	silver	high-gloss chromed	3	M8	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-3106X15	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	15			on request
06460-3106X20	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06460-3106X25	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06460-3106X30	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06460-3106X35	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	35			on request
06460-3106X40	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06460-3106X45	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	45			on request
06460-3106X50	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06460-3106X55	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	55			on request
06460-3106X60	silver	high-gloss chromed	3	M10	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06460-4106X20	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-4106X25	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-4106X30	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-4106X35	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-4106X40	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-4106X45	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-4106X50	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-4106X55	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-4106X60	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-4106X70	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-4106X80	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-4106X90	silver	high-gloss chromed	4	M10	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-4126X20	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	20			on request
06460-4126X25	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06460-4126X30	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06460-4126X35	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	35			on request
06460-4126X40	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06460-4126X45	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	45			on request
06460-4126X50	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06460-4126X55	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	55			on request
06460-4126X60	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06460-4126X70	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	70			on request
06460-4126X80	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	80			on request
06460-4126X90	silver	high-gloss chromed	4	M12	19	27	27,5	43	10	27	63	67,5	95	109	13	24	90			on request
06460-5126X25	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-5126X30	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-5126X35	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-5126X40	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-5126X45	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-5126X50	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-5126X55	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-5126X60	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-5126X70	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-5126X80	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-5126X90	silver	high-gloss chromed	5	M12	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
06460-5166X25	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	25			on request
06460-5166X30	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06460-5166X35	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	35			on request
06460-5166X40	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06460-5166X45	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	45			on request
06460-5166X50	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06460-5166X55	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	55			on request
06460-5166X60	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06460-5166X70	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	70			on request
06460-5166X80	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	80			on request
06460-5166X90	silver	high-gloss chromed	5	M16	23	31	32	49	12	31,5	73	77,5	110	126	15	26	90			on request
