Pull handles, aluminium, slanted both sides

06915

Pull handles, aluminium, slanted both sides

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles, aluminium, slanted both sides

Item description/product images

DescriptionMaterial:EN AW-6060Version:Matt-finished and anodised or powder-coatedAssembly:From the rear.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06915 Pull handles, aluminium, slanted both sides

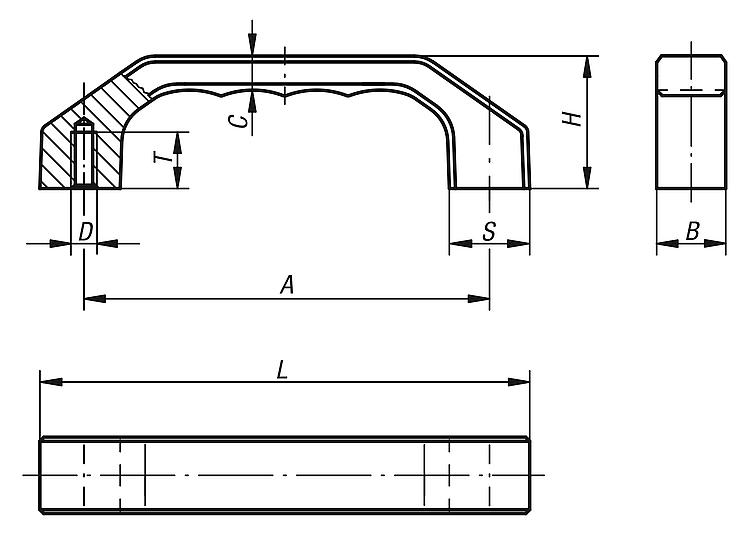

Drawings

Pull handles, aluminium, slanted both sides

Overview of items (compressed)

Item selection/filter

Order No. natural	Order No. black	Order No. titanium	A	B	C	D	H	L	S	T	Load capacity N	Filter
06915-120061	-	06915-120063	120	22	10,5	M6	39	146	24	15	1000
-	06915-120062	-	120	22	10,5	M6	39	146	24	12	1000
06915-140081	06915-140082	06915-140083	140	25	12	M8	45	170	28	16	1000
06915-160081	06915-160082	06915-160083	160	28	13,5	M8	52	194	32	16	1000
