Pull handles, plastic, angled

06975

Pull handles, plastic, angled

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles, plastic, angled

Item description/product images

DescriptionMaterial:Glass-bead reinforced thermoplastic PAVersion:Black.Note:Ergonomic design pull handles with finger shield. For mounting on doors, hatches and aluminium profiles. Ideal for double-leaf doors. Fastening with hexagon or socket head M8 bolts.

Cover caps are not supplied with the handle, please order separately.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06975 Pull handles, plastic, angled

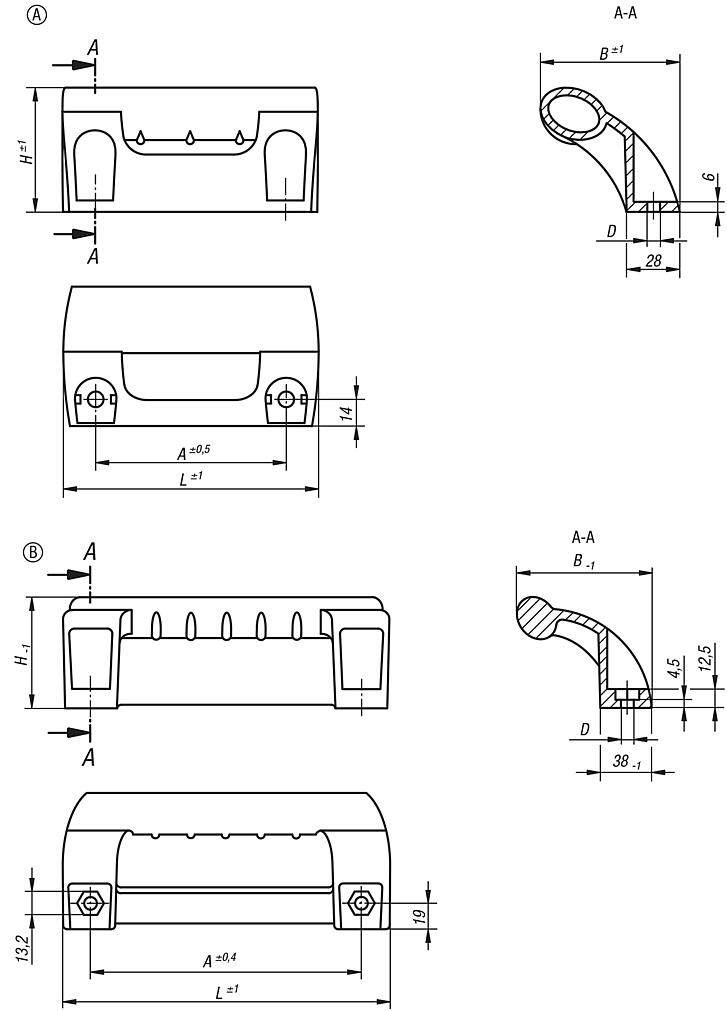

Drawings

Pull handles, plastic, angled

Item selection/filter

Order No.	Form	A	B	D	H	L	Load capacity N	Order No. cover caps	CAD	Acc.	Price	Order
06975-100081	A	100	73	8,5	65	134	1000	06975-1			on request
06975-198081	B	198	100	8,8	80	236	1000	06975-3			on request
