        Knurled torque knobs

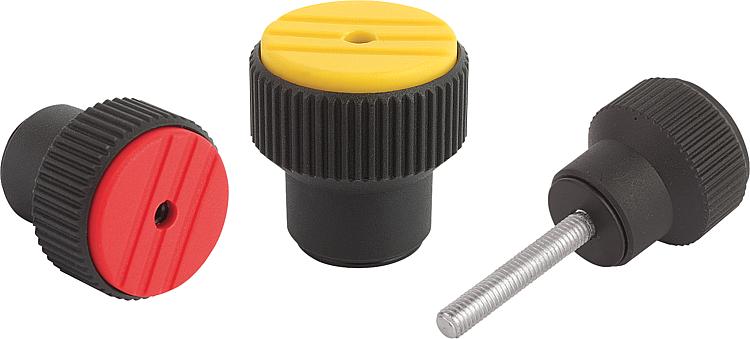

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoplastic, black grey.
Bush and screw steel 5.8.Version:Bush black oxidised.
Screw trivalent blue passivated.Note:The set screw sets the required torque. The knob de-clutches and turns freely when the desired torque is reached.

Δ Add the desired cap colour here. No colour code is required for black grey caps.Drawing reference:

1) adjusting screw for setting the torque

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07125 Knurled torque knobs

237 kB

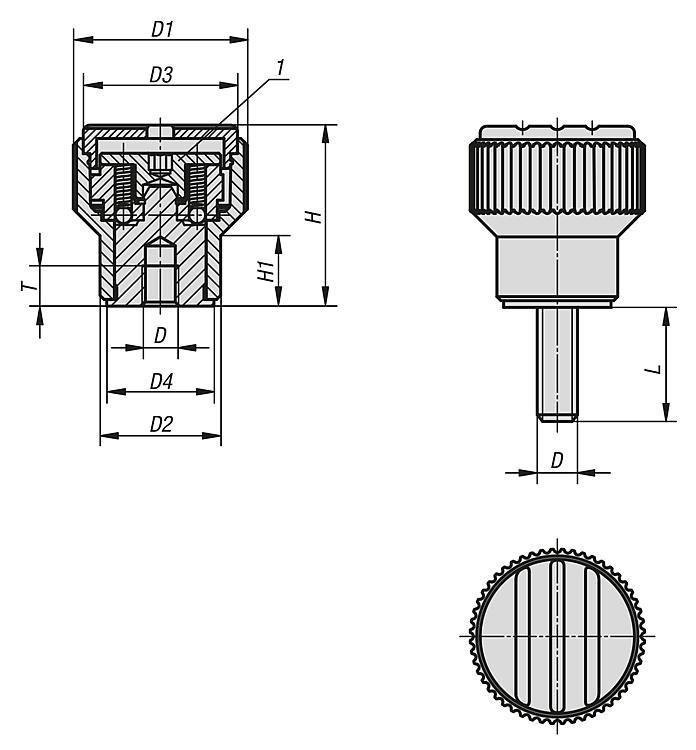

Drawings (total overview)

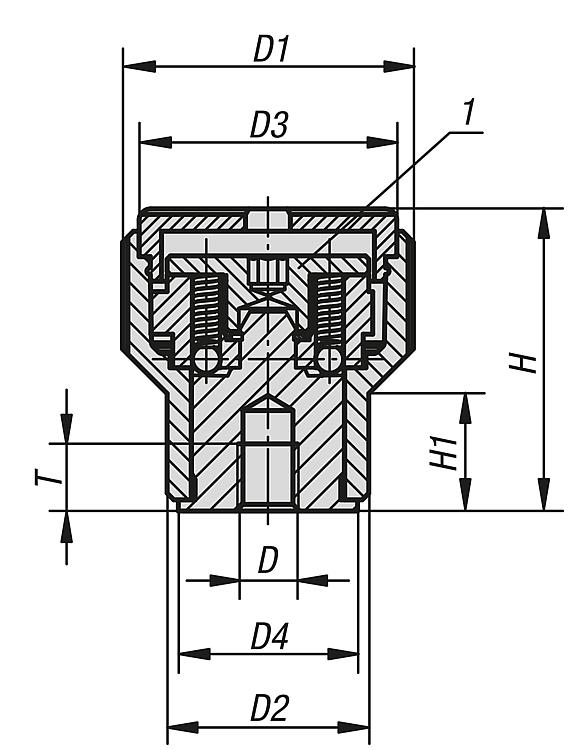

Knurled torque knobs internal thread

More information

Drawings

Item selection/filter

Order No.	Thread type	Component material	Colour Cap	Size	D	D1	D2	D3	D4	H	H1	T	Torque Nm	Price
07125-205	internal thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2051	internal thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2052	internal thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2053	internal thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2055	internal thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2056	internal thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-2057	internal thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	on request
07125-206	internal thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2061	internal thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2062	internal thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2063	internal thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2065	internal thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2066	internal thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-2067	internal thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	on request
07125-306	internal thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3061	internal thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3062	internal thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3063	internal thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3065	internal thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3066	internal thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-3067	internal thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	on request
07125-308	internal thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3081	internal thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3082	internal thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3083	internal thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3085	internal thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3086	internal thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request
07125-3087	internal thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	on request

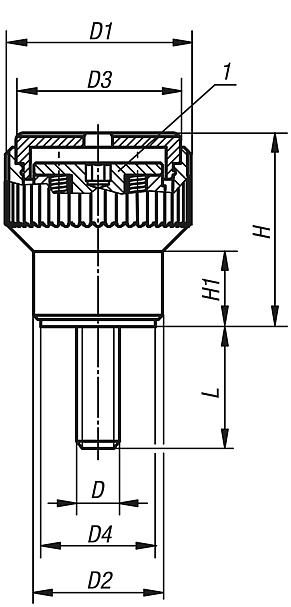

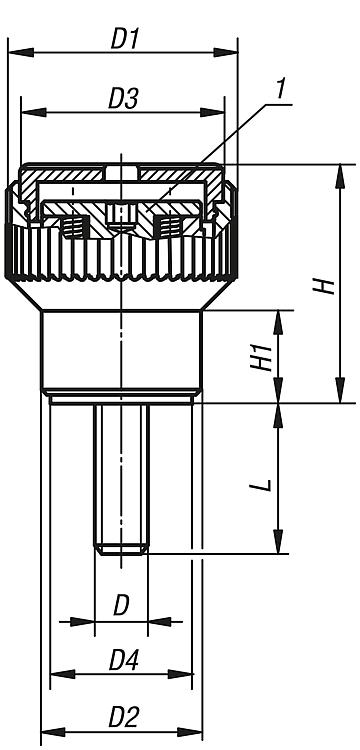

Knurled torque knobs external thread

More information

Drawings

Item selection/filter

Order No.	Thread type	Component material	Colour Cap	Size	D	D1	D2	D3	D4	H	H1	L	Torque Nm	Price
07125-205X30	external thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2051X30	external thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2052X30	external thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2053X30	external thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2055X30	external thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2056X30	external thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2057X30	external thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-205X50	external thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2051X50	external thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2052X50	external thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2053X50	external thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2055X50	external thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2056X50	external thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2057X50	external thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-206X30	external thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2061X30	external thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2062X30	external thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2063X30	external thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2065X30	external thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2066X30	external thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-2067X30	external thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	on request
07125-206X50	external thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2061X50	external thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2062X50	external thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2063X50	external thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2065X50	external thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2066X50	external thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-2067X50	external thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	on request
07125-306X40	external thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3061X40	external thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3062X40	external thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3063X40	external thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3065X40	external thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3066X40	external thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3067X40	external thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-306X60	external thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3061X60	external thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3062X60	external thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3063X60	external thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3065X60	external thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3066X60	external thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3067X60	external thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-308X40	external thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3081X40	external thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3082X40	external thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3083X40	external thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3085X40	external thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3086X40	external thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-3087X40	external thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	on request
07125-308X60	external thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3081X60	external thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3082X60	external thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3083X60	external thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3085X60	external thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3086X60	external thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
07125-3087X60	external thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	on request
