        Torque grips, precision version

Item description/product images

DescriptionMaterial:Grip and set screw aluminium.
Bush and pin steel 5.8.Version:Grip and set screw anodised.
Bushes black oxidised, pins electro zinc-plated.Note:The required torque is set by a set screw and a graduated scale. The set value can be secured using the lateral clamping screw. When the set torque is reached the grip audibly and palpably releases. The loosening torque is higher than the tightening torque so that the torque handle can be released without any problems.

The internal thread version has a hole in the set screw so that the torque handle can also be used on threaded rods.

Set torque accuracy ± 5%.On request:Other thread lengths.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07124 Torque grips precision version

377 kB

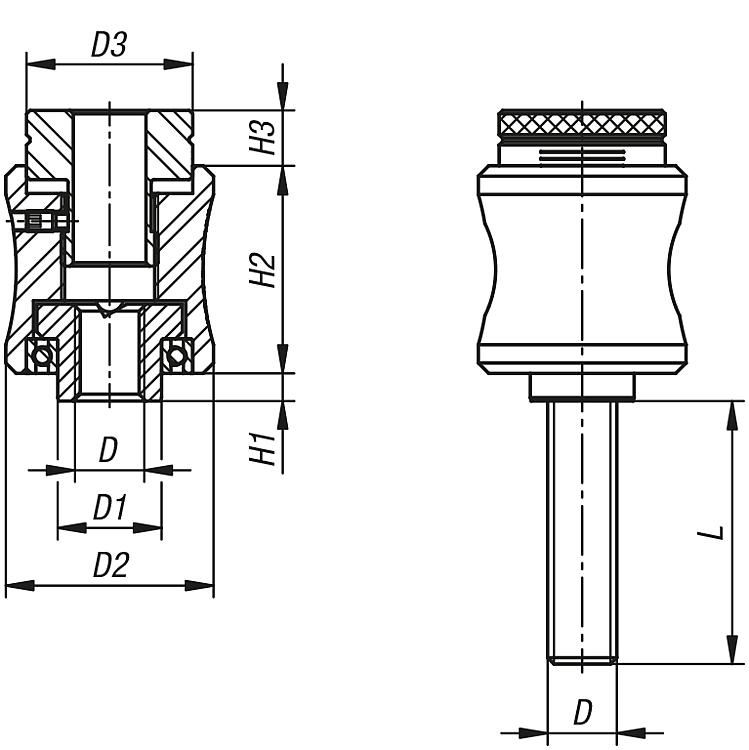

Drawings (total overview)

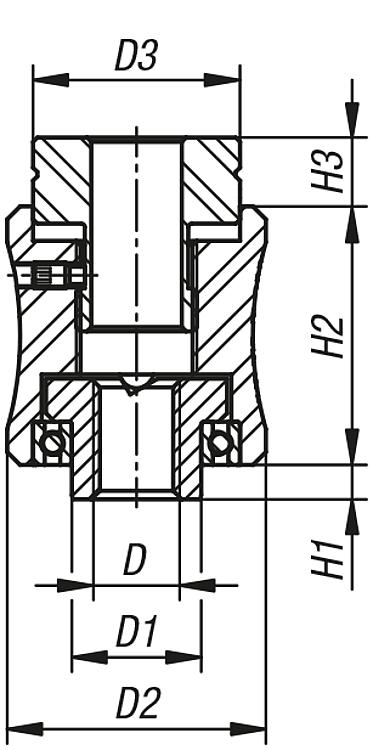

Torque grips
precision version, internal thread

More information

Drawings

Torque grips precision version, internal thread

Item selection/filter

Order No.	D	D1	D2	D3	H1	H2	H3	Torque Nm	Price
07124-105	M5	10	26	20	2	26	8	0,05 - 0,1	on request
07124-106	M6	10	26	20	2	26	8	0,1 - 0,25	on request
07124-208	M8	15	30	24	4	30	8	0,25 - 0,5	on request
07124-210	M10	15	30	24	4	30	8	0,5 - 1	on request

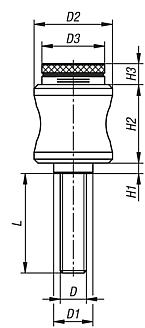

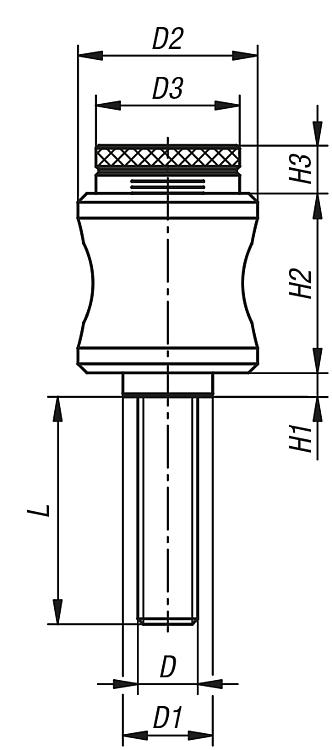

Torque grips
precision version, external thread

More information

Drawings

Torque grips precision version, external thread

Item selection/filter

Order No.	Size	D	D1	D2	D3	H1	H2	H3	L	Torque Nm	Price
07124-105X30	1	M5	10	26	20	2	26	8	30	0,05 - 0,15	on request
07124-105X40	1	M5	10	26	20	2	26	8	40	0,05 - 0,15	on request
07124-106X30	1	M6	10	26	20	2	26	8	30	0,1 - 0,25	on request
07124-106X40	1	M6	10	26	20	2	26	8	40	0,1 - 0,25	on request
07124-208X40	2	M8	15	30	24	4	30	8	40	0,25 - 0,5	on request
07124-208X50	2	M8	15	30	24	4	30	8	50	0,25 - 0,5	on request
07124-210X40	2	M10	15	30	24	4	30	8	40	0,5 - 1	on request
07124-210X50	2	M10	15	30	24	4	30	8	50	0,5 - 1	on request
