Torque screws with ball thrust points

07134

Torque screws with ball thrust points

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Torque bolts and threaded inserts
        Torque screws with ball thrust points

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.Note:The torque required for the knurled screw is generated by two spring-mounted thrust balls.
As soon as the adjustable final pressure is reached, the grip runs free.
The final pressure is set using the set screws located in the head.

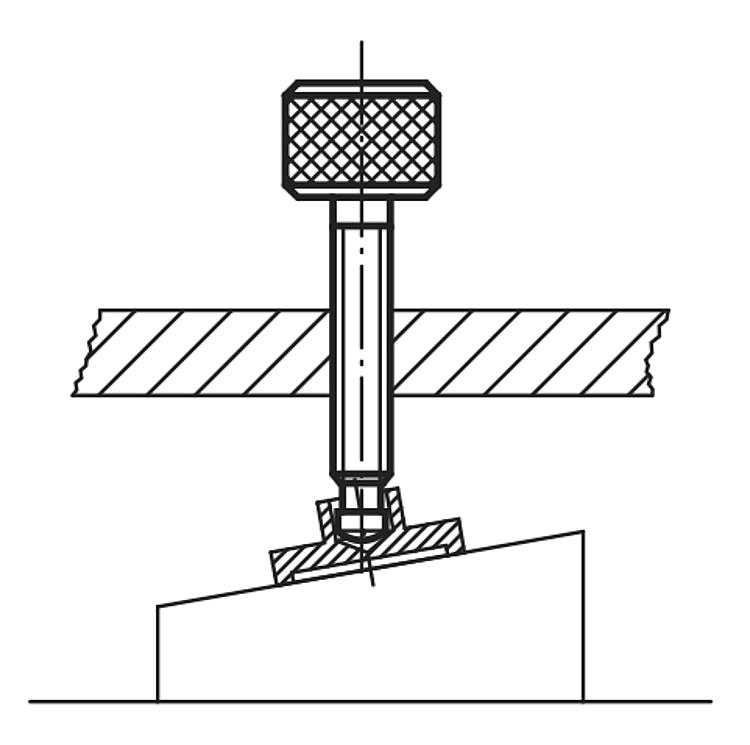

These torque screws are particularly useful when used together with thrust pads (07138, 07140 or 07141) for clamping sloping surfaces.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07134 Torque screws with ball thrust points

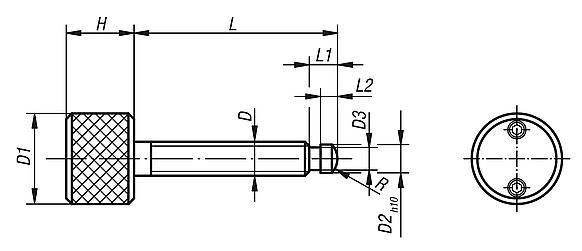

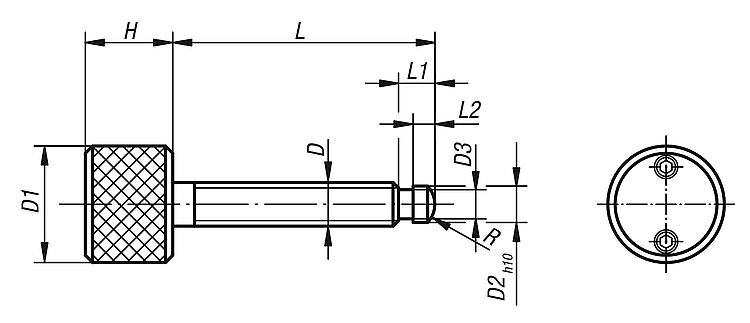

Drawings

Torque screws with ball thrust points

Overview of items (compressed)

Item selection/filter

Order No.	D	D1	D2	D3	H	L	L1	L2	F1 N	F2 N	R	Filter
07134-06X	M6	25	4,5	4,1	20	40/60	6	2,5	40	800	3
07134-08X	M8	25	6	5,3	20	60/80	7,5	3	40	650	5
07134-10X	M10	25	8	7,2	20	60/80	9	4,5	40	550	6
07134-12X	M12	25	8	7,2	20	80/100	10	4,5	40	450	6
