Torque grips

07133

Torque grips

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Torque bolts and threaded inserts
        Torque grips

Item description/product images

DescriptionMaterial:Nut: free cutting steel.
Handle: grey cast GJL 250.Version:Nut black oxidised.
Grip bright.Note:The torque required for the grip is generated by two spring-mounted thrust balls.
As soon as the adjustable final pressure is reached, the grip runs free.
The final pressure is set using the set screws located in the head.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07133 Torque grips

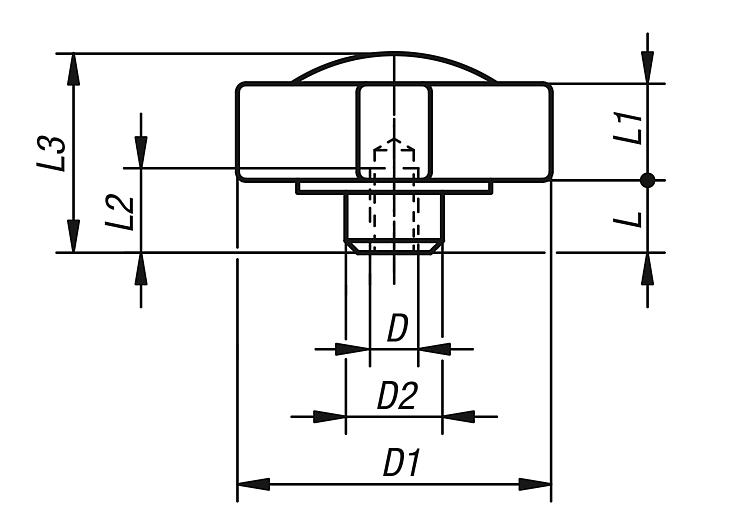

Drawings

Torque grips

Item selection/filter

Order No.	D	D1	D2	L	L1	L2	L3	F1 N	F2 N	CAD	Acc.	Price	Order
07133-08	M8	60	20	12	22	13	40	40	900			on request
07133-10	M10	60	20	12	22	13	40	40	700			on request
07133-12	M12	60	20	12	22	13	40	40	500			on request
