Base plates DIN 6348
 08580

Base plates DIN 6348

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Black oxidised.Drawing reference:
1) these two holes only with size 6
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 08580 Base plates DIN 6348 159 kB

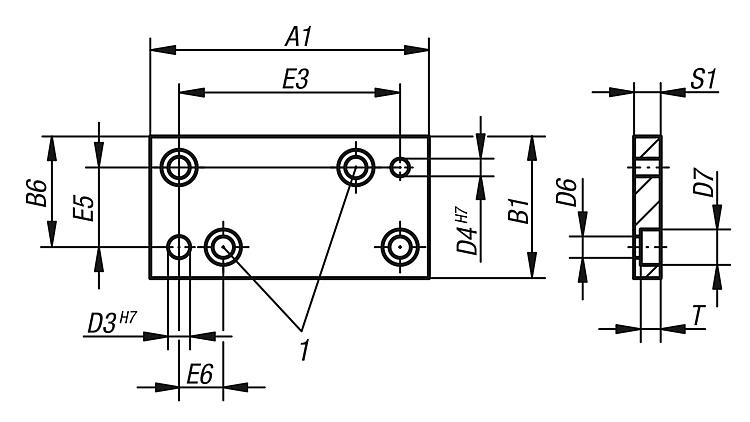

Drawings

Base plates DIN 6348

Item selection/filter
Order No.Suitable for
jig size
Jig
dimensions		A1B1B6D3D4D6D7E3E5E6S1TCADAcc.PriceOrder
08580-00060 x 32633225454,5850 ±0,0118 ±0,01-64,6 on request
08580-01180 x 508050301086,61160 ±0,0120 ±0,01-106,8 on request
08580-022 2S100 x 60 100 x 60 x 11510060501086,61180 ±0,0140 ±0,01-106,8 on request
08580-033 3S100 x 125 125 x 1008512510014106,61160 ±0,01575 ±0,015-106,8 on request
08580-044200 x 1601881601301410915150 ±0,015100 ±0,015-159 on request
08580-055300 x 190278190157,520-915220 ±0,015125 ±0,015-159 on request
08580-066400 x 250400250225201813,520320 ±0,015200 ±0,015401813 on request
