Magnets shallow pot SmCo

go back

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets shallow pot SmCo

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, steel.
Magnetic core, SmCo.Version:Housing, electro zinc-plated.Note:Shallow pot magnets, shielded system. Magnets with an SmCo core have three to five times the attracting force of AlNiCo or hard ferrite magnets.Temperature range:max. 200°C.Drawing reference:

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09066 Magnets shallow pot SmCo

135 kB

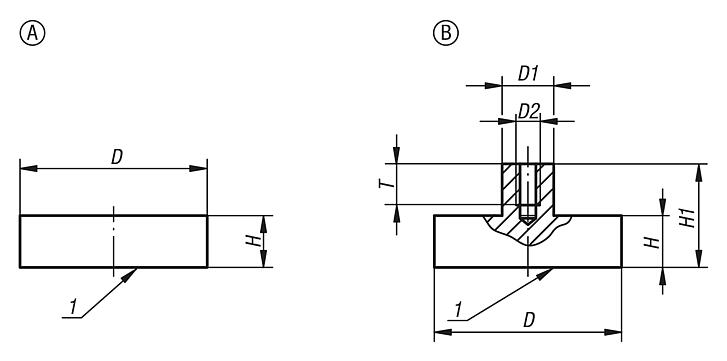

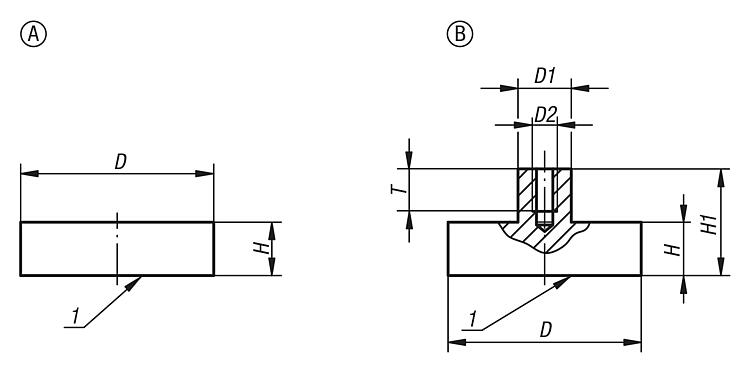

Drawings (total overview)

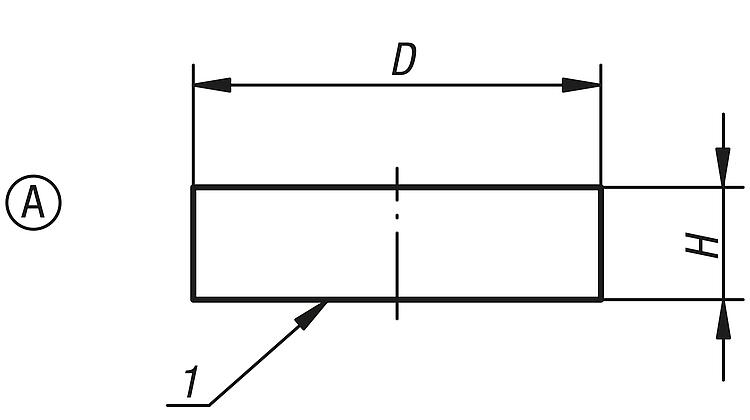

Magnets shallow pot SmCo, Form A

More information

Drawings

Item selection/filter

	A	6 ±0,15 8 ±0,15 10 ±0,15 13 ±0,15 16 ±0,15 20 ±0,15 25 ±0,15 32 ±0,20	4,5 6 7	5 11 20 40 60 90 150 220				Reset
Order No.	Form	D	H	Magnetic force N	CAD	Acc.	Price	Order
09066-01	A	6 ±0,15	4,5	5			on request
09066-02	A	8 ±0,15	4,5	11			on request
09066-03	A	10 ±0,15	4,5	20			on request
09066-04	A	13 ±0,15	4,5	40			on request
09066-05	A	16 ±0,15	4,5	60			on request
09066-06	A	20 ±0,15	6	90			on request
09066-07	A	25 ±0,15	7	150			on request
09066-08	A	32 ±0,20	7	220			on request

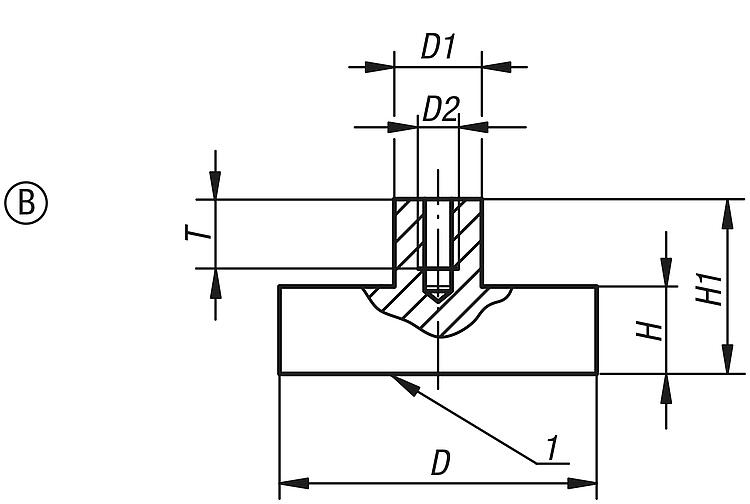

Magnets shallow pot SmCo, Form B

More information

Drawings

Item selection/filter

	B	6 ±0,15 8 ±0,15 10 ±0,15 13 ±0,15 16 ±0,15 20 ±0,15 25 ±0,15 32 ±0,20	6 8 10	M3 M4 M5	4,5 6 7	11,5 13 14 15,5	6 7,5 8,5	5 11 20 40 60 90 150 220				Reset
Order No.	Form	D	D1	D2	H	H1	T	Magnetic force N	CAD	Acc.	Price	Order
09066-11	B	6 ±0,15	6	M3	4,5	11,5	6	5			on request
09066-12	B	8 ±0,15	6	M3	4,5	11,5	6	11			on request
09066-13	B	10 ±0,15	6	M3	4,5	11,5	6	20			on request
09066-14	B	13 ±0,15	6	M3	4,5	11,5	6	40			on request
09066-15	B	16 ±0,15	6	M4	4,5	11,5	6	60			on request
09066-16	B	20 ±0,15	8	M4	6	13	7,5	90			on request
09066-17	B	25 ±0,15	8	M4	7	14	7,5	150			on request
09066-18	B	32 ±0,20	10	M5	7	15,5	8,5	220			on request
