Probe knife pointoffset, for fixed stop

33035

Probe knife point offset, for fixed stop

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Probe knife point offset, for fixed stop

Item description/product images

DescriptionMaterial:Tool steel.
Contact face carbideVersion:Black oxidised.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33035 Probe knife pointoffset, for fixed stop

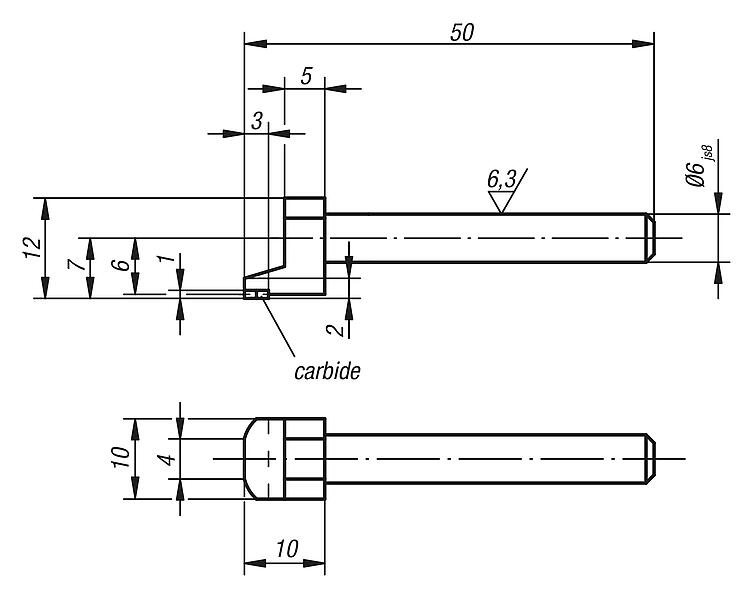

Drawings

Probe knife pointoffset, for fixed stop

Item selection/filter

Order No.	Dimensions	CAD	Acc.	Price	Order
33035-06050	see drawing			on request
