Probe inserts with ball point

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Probe inserts with ball point

Item description/product images

DescriptionMaterial:Tool steel.Version:Hardened, black oxidised.Note:Dial gauges see 32540 and 32542.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33042 Probe inserts with ball point

119 kB

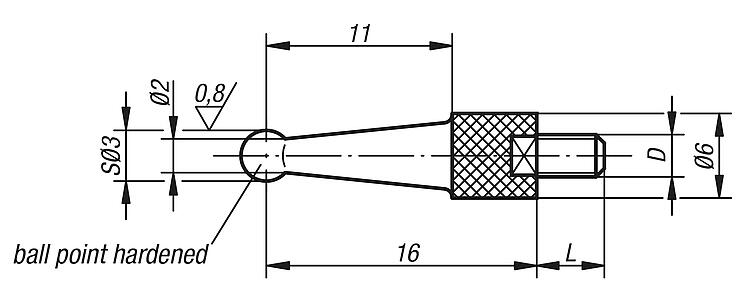

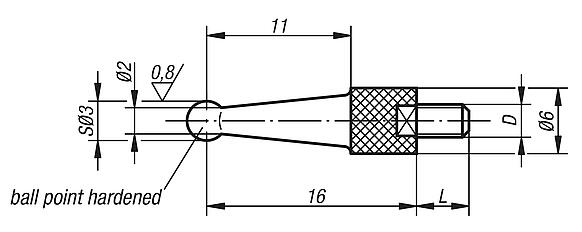

Drawings

Item selection/filter

	M2,5 M4	5				Reset
Order No.	D	L	CAD	Acc.	Price	Order
33042-025016	M2,5	5			on request
33042-040016	M4	5			on request
