Measuring arms

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Measuring arms

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.Note:The measuring arms are suitable for pivoting columns 33110 and pivoting systems 33115.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33150 Measuring arms

105 kB

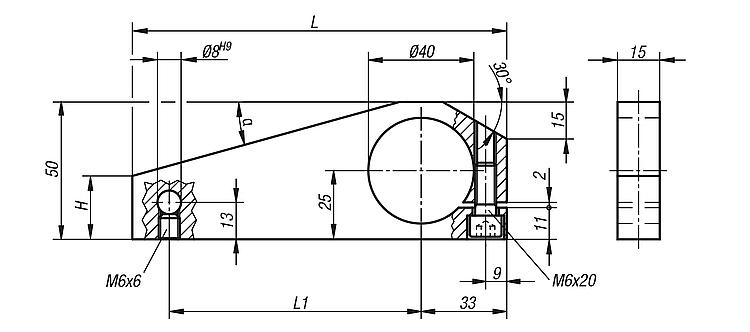

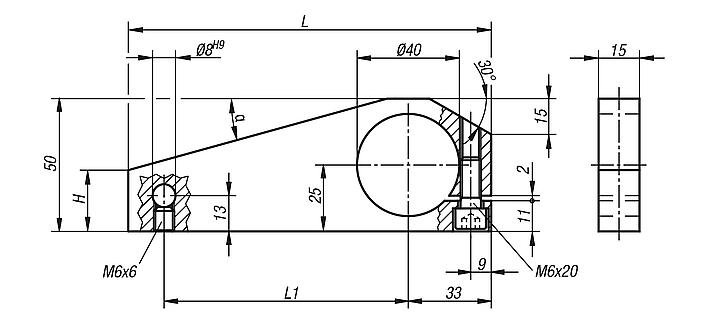

Drawings

Item selection/filter

Order No.	L	L1	H	α	CAD	Acc.	Price	Order
33150-095	95	50	18	30°			on request
33150-140	140	95	23	15°			on request
