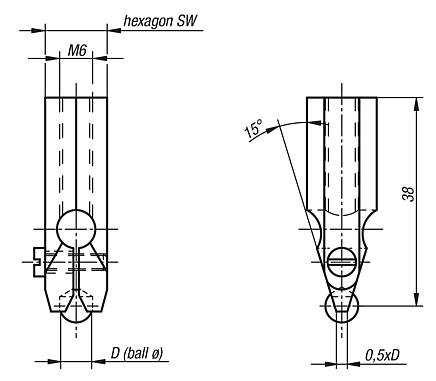

Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Black oxidised.Note:Carbide balls available on request.
The ball holders fit in the measuring element for gear wheels 33202.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | -
- 2
- 2,38
- 2,5
- 3
- 3,5
- 3,96
- 4
- 4,5
- 4,76
- 5
- 5,56
- 6
- 6,5
- 7
- 7,54
- 7,938
- 8,5
- 9,52
- 10
| | | | | Reset |
|---|
Order No.
| D | SW | CAD | Acc. | Price | Order |
|---|
| 33205-02000 | 2 | 10 |  | | on request | | | 33205-02380 | 2,38 | 10 | | | on request | | | 33205-02500 | 2,5 | 10 | | | on request | | | 33205-03000 | 3 | 10 | | | on request | | | 33205-03500 | 3,5 | 10 | | | on request | | | 33205-03960 | 3,96 | 10 | | | on request | | | 33205-04000 | 4 | 10 | | | on request | | | 33205-04500 | 4,5 | 10 | | | on request | | | 33205-04760 | 4,76 | 10 | | | on request | | | 33205-05000 | 5 | 10 | | | on request | | | 33205-05560 | 5,56 | 10 | | | on request | | | 33205-06000 | 6 | 10 | | | on request | | | 33205-06500 | 6,5 | 13 | | | on request | | | 33205-07000 | 7 | 13 | | | on request | | | 33205-07540 | 7,54 | 13 | | | on request | | | 33205-07938 | 7,938 | 13 | | | on request | | | 33205-08500 | 8,5 | 13 | | | on request | | | 33205-09520 | 9,52 | 13 | | | on request | | | 33205-10000 | 10 | 13 | | | on request | |
