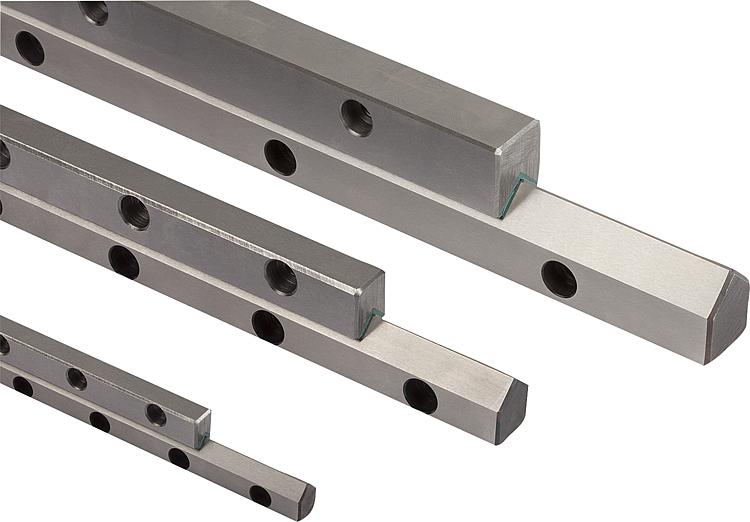

        Guide rails Teflon-coated

Item description/product images

DescriptionMaterial:Form A:
tool steel, material hardness 58–62 HRC.
The surfaces are fine ground.
Form B:
free-cutting steel with PTFE coating.
The glide coating is self-lubricating.Note for ordering:A guide length of 300 mm and a travel of 100 mm is required for a complete guide with rail size 6:

2 x 21054-1060300
2 x 21054-2060200

(include length L e.g. 300 for L=300 mm)Note:When lubricated and under normal conditions, speeds of up to 15 m/min. can be achieved.
Depending on the lubricant, the coefficient of friction can be calculated as 0.04–0.08.
Standard slideway lubricants are applied.

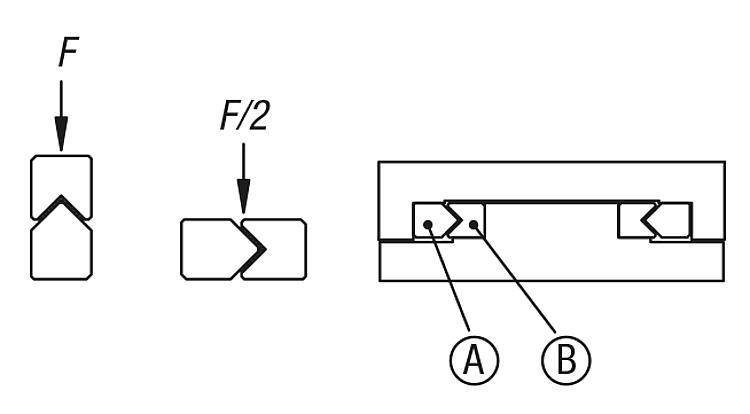

The longitudinal guides are used for moving, machining and positioning tasks.Application:- Industry automation
- Machine tools
- Special machinery
- Tool fixtures
- Metrology equipmentTemperature range:-40 °C to +80 °C.Advantages:- Stick-slip free movement
- Very good dry-running properties
- Highly wear-resistant
- Very good vibration damping
- Resistant to dirt, shock and impactSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21054 Guide rails Teflon-coated

179 kB

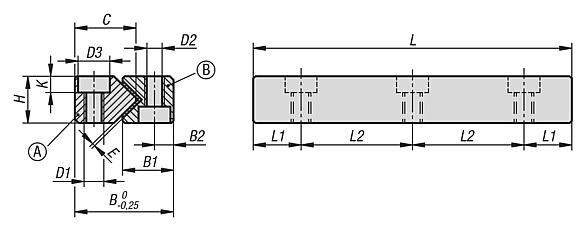

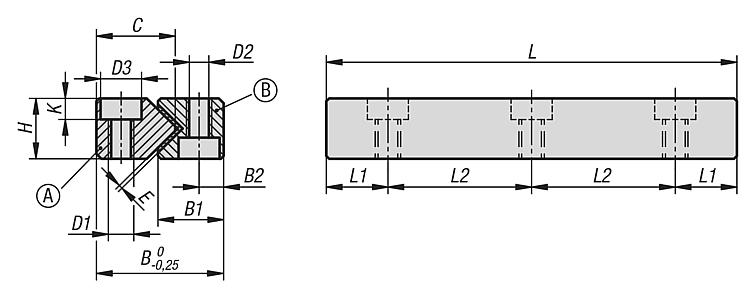

Drawings

Item selection/filter

Order No.	Form	B	B1	B2	C	D1	D2	D3	E	H	K	L	L1	L2	F N	Price
21054-1020030	A	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	30	7,5	1x15	120	on request
21054-2020030	B	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	30	7,5	1x15	120	on request
21054-1020045	A	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	45	7,5	2x15	180	on request
21054-2020045	B	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	45	7,5	2x15	180	on request
21054-1020060	A	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	60	7,5	3x15	240	on request
21054-2020060	B	12	7	2,5	7,5	M3	2,55	4,4	0,5	6	2,1	60	7,5	3x15	240	on request
21054-1030050	A	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	50	12,5	1x25	142	on request
21054-2030050	B	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	50	12,5	1x25	142	on request
21054-1030075	A	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	75	12,5	2x25	213	on request
21054-2030075	B	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	75	12,5	2x25	213	on request
21054-1030100	A	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	100	12,5	3x25	285	on request
21054-2030100	B	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	100	12,5	3x25	285	on request
21054-1030125	A	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	125	12,5	4x25	356	on request
21054-2030125	B	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	125	12,5	4x25	356	on request
21054-1030150	A	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	150	12,5	5x25	427	on request
21054-2030150	B	18	9	3,5	10,8	M4	3,3	6	0,6	8	3,1	150	12,5	5x25	427	on request
21054-1060100	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	100	25	1x50	684	on request
21054-2060100	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	100	25	1x50	684	on request
21054-1060150	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	150	25	2x50	1026	on request
21054-2060150	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	150	25	2x50	1026	on request
21054-1060200	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	200	25	3x50	1368	on request
21054-2060200	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	200	25	3x50	1368	on request
21054-1060250	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	250	25	4x50	1710	on request
21054-2060250	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	250	25	4x50	1710	on request
21054-1060300	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	300	25	5x50	2052	on request
21054-2060300	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	300	25	5x50	2052	on request
21054-1060350	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	350	25	6x50	2394	on request
21054-2060350	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	350	25	6x50	2394	on request
21054-1060400	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	400	25	7X50	2736	on request
21054-2060400	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	400	25	7X50	2736	on request
21054-1060500	A	31	16	6	19,3	M6	5,3	10	1	15	5,2	500	25	9x50	3420	on request
21054-2060500	B	31	16	6	19,3	M6	5,3	10	1	15	5,2	500	25	9x50	3420	on request
21054-1090200	A	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	200	50	1x100	2390	on request
21054-2090200	B	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	200	50	1x100	2390	on request
21054-1090300	A	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	300	50	2x100	3586	on request
21054-2090300	B	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	300	50	2x100	3586	on request
21054-1090400	A	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	400	50	3x100	4781	on request
21054-2090400	B	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	400	50	3x100	4781	on request
21054-1090500	A	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	500	50	4x100	5976	on request
21054-2090500	B	44	23,5	9	28	M8	6,8	11	1,2	22	6,2	500	50	4x100	5976	on request
