        Carriage, steel, standard, with recirculating ball guide for profile guide rails

Item description/product images

DescriptionMaterial:Body carbon steel.
Balls roller bearing steel.
Diverters plastic.Version:Bright.Note:Standard guide carriage with recirculating ball guidance precision N not preloaded (Z0). With double-sided end seal. 4-row versions with round arch profile. The profile guide rail tracks are arranged at 45° and can accept loads from all directions.

High dynamic values: v = 5 m/s.

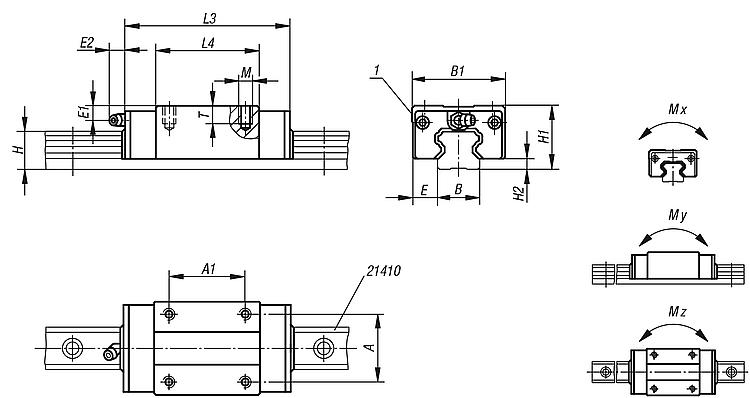

Applicable temperature in continuous use max. 80 °C.On request:Various precision and preload classes.Drawing reference:

1) ground ref. edge

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21400 Carriages

161 kB

Technical Information for Profile Guide Rails

105 kB

Drawings

Item selection/filter

	standard long	15 20 25 30	70 220 360 600 504 785	50 180 320 500 448 650	50 180 310 490 434 650	6850 14500 21400 29800 29960 39000	12700 25600 40000 54900 56000 71900	Ø3 M6x1	26 32 35 40	26 36 35 40 50 60	15 20 23 28	34 44 48 60	9,5 12 12,5 16	8,3 7 11 10	5 13,5 13	14 18 22 26	28 30 40 45	4,6 5 7 9	66 77,8 88 109 110,1 131,3	40 48,8 57 72 79,1 94,3	M4 M5 M6 M8	6,4 8 9,6 12,8				Reset
Order No.	Version	Size	Mx Nm	My Nm	Mz Nm	Dynamic load rating N	Static load rating N	Lubrication hole	A	A1	B	B1	E	E1	E2	H	H1	H2	L3	L4	M	T	CAD	Acc.	Price	Order
21400-15106601	standard	15	70	50	50	6850	12700	Ø3	26	26	15	34	9,5	8,3	5	14	28	4,6	66	40	M4	6,4			on request
21400-20107801	standard	20	220	180	180	14500	25600	M6x1	32	36	20	44	12	7	13,5	18	30	5	77,8	48,8	M5	8			on request
21400-25108801	standard	25	360	320	310	21400	40000	M6x1	35	35	23	48	12,5	11	13,5	22	40	7	88	57	M6	9,6			on request
21400-30110901	standard	30	600	500	490	29800	54900	M6x1	40	40	28	60	16	10	13	26	45	9	109	72	M8	12,8			on request
21400-25211001	long	25	504	448	434	29960	56000	M6x1	35	50	23	48	12,5	11	13,5	22	40	7	110,1	79,1	M6	9,6			on request
21400-30213101	long	30	785	650	650	39000	71900	M6x1	40	60	28	60	16	10	13	26	45	9	131,3	94,3	M8	12,8			on request
