21425Miniature profile guide rails stainless steel |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4034. Version:Bright.
Hardened 52 HRC.Note:Profile guide rails can be screwed on from above. The profile rails, on which one or more carriages can be mounted, are available in four miniature sizes.
4-point ball bearing system with identical load angles and 2 ball bearings per carriage. Thus loads can be uniformly absorbed from all sides.
Max. acceleration: 80 m/s².
Maximum traversing speed 3 m/s.
Application temperature -20 °C to +80 °C.
Combination of the rails is possible.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

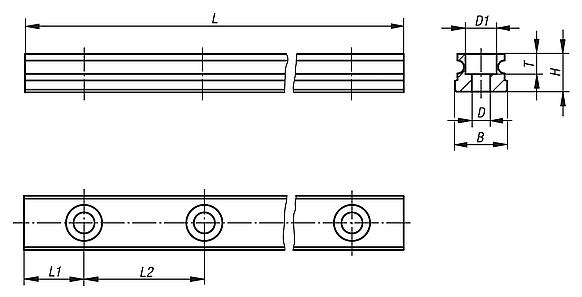

| Size | D
| D1 | H | L
max. | L1 | L2 | B | T | CAD | Acc. | Price | Order |
|---|
| 21425-0705X0240 | 7 | 2,4 | 4,2 | 4,7 | 240 | 7,5 | 15 | 7 | 2,3 |  | | on request | | | 21425-0907X0495 | 9 | 3,5 | 6 | 5,5 | 495 | 7,5 | 20 | 9 | 3,3 | | | on request | | | 21425-1210X0570 | 12 | 3,5 | 6 | 7,5 | 570 | 10 | 25 | 12 | 4,5 | | | on request | | | 21425-1515X0790 | 15 | 3,5 | 6 | 9,5 | 790 | 15 | 40 | 15 | 4,5 | | | on request | |
