        Carriages compact, short

Item description/product images

DescriptionMaterial:Body carbon steel.
Balls roller bearing steel.
Diverters plastic.Version:Bright.Note:Compact guide carriage with recirculating ball guide precision N not preloaded (Z0). With double-sided end seal. 4-row versions with round arch profile. The profile guide rail tracks are arranged at 45° and can accept loads from all directions.

High dynamic values: v = 5 m/s.

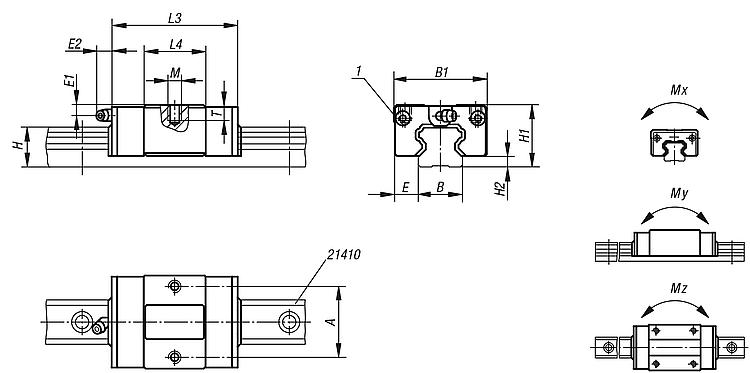

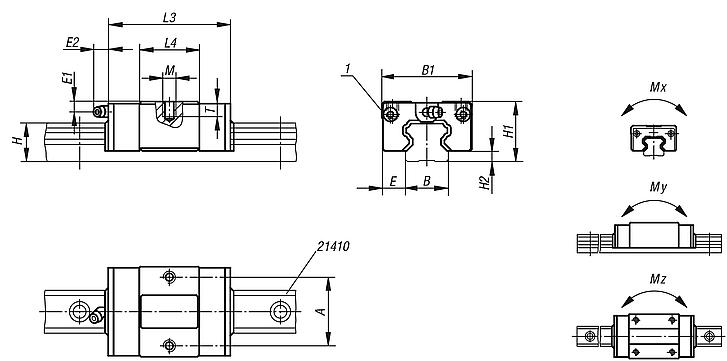

Applicable temperature in continuous use max. 80 °C.On request:Various precision and preload classes.Drawing reference:

1) ground ref. edge

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21406 Carriages compact, short

156 kB

Technical Information for Profile Guide Rails

105 kB

Drawings

Item selection/filter

Order No.	Size	Mx Nm	My Nm	Mz Nm	Dynamic load rating N	Static load rating N	Lubrication hole	A	B	B1	E	E1	E2	H	H1	H2	L3	L4	M	T	Price
21406-15004801	15	40	28	28	3900	7250	Ø3	26	15	34	9,5	4,3	5	14	24	4,6	47,6	21,6	M4	5,6	on request
21406-20005801	20	126	103	103	8300	14700	M6x1	32	20	42	11	5	13,5	18	28	5	58	28	M5	7	on request
21406-25006301	25	200	175	172	11900	22300	M6x1	35	23	48	12,5	4,8	13,5	22	33	7	62,5	31,5	M6	8,4	on request
21406-30007601	30	320	270	270	15950	29400	M6x1	40	28	60	16	7	13	26	42	9	75,6	38,6	M8	11,2	on request
