24055Ball screw linear actuators rolled, with flange nut DIN 69051... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Spindle, steel 1.1213.
Nut steel 1.3505.
Wiper plastic.Version:Spindle rolled, induction hardened to 62 ±2 HRC and polished.
Nut ground, flank induction hardened to 62 ±2 HRC and polished.Note:Ball screw linear actuators with Gothic arch profile and 5 mm or 10 mm pitch. Single-start, right-hand. Ball screw flange nut acc. to DIN 69051 Part 5 with flange.
Manufactured acc. to precision class C7 (tolerance ±50 µ / 300 mm). Without preloading with axial backlash P0 (max. 0.08 mm)On request:We can produce ball screw spindles to your design from a detailed drawing.
Max. production lengths 5600 mm.

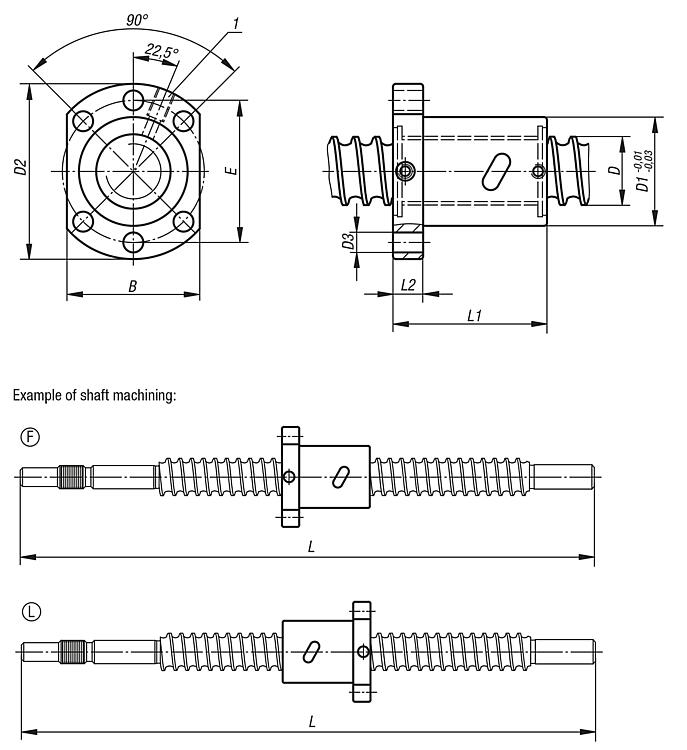

Other precision classes and preloading are available (see technical information).Attention:The flange nut must not be removed from the spindle without a mounting aid as the balls will fall out.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
