        Fixed bearing units, steel block version, type BK

Item description/product images

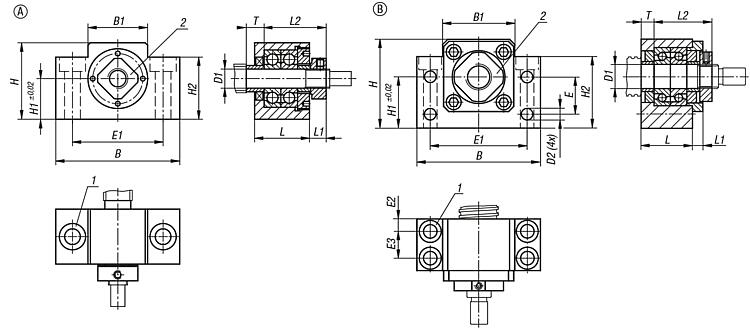

DescriptionMaterial:Housing steel.Version:Housing black oxidised.Note:The axis height of the spindle bearings is matched to the floating bearing unit 24078. The fixed bearing units are composed of a housing with 2 angular contact thrust ball bearings with seals. Preloaded by a an initial flange. With backstops and a locknut.Drawing reference:

1) C for socket head screw ISO 4762
2) M slotted nut

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24076 Fixed bearing units block version

162 kB

Drawings

Overview of items (compressed)

Item selection/filter

	A B	6 8 10 12 15 17 20	52 60 70 86 88	25 34 35 40 50 52	M6 M8	6 8 10 12 15 17 20	- 5,5 6,6	- 15 18 28 22	38 46 54 68 70	- 6 8	- 13 15 19	32 39 43 48 64 60	17 22 25 28 39 34	26 32,5 35 38 55 50	23 25 27 35	5 7 9 8	24 26 29 32 44 43	M6x0,75 M8x1 M10x1 M12x1 M15x1 M17x1 M20x1	5 7,5 6 7 8				Reset
Order No.	Form	Size	B	B1	C	D1	D2	E	E1	E2	E3	H	H1	H2	L	L1	L2	M	T	CAD	Acc.	Price	Order
24076-006	A	6	52	25	M6	6	-	-	38	-	-	32	17	26	23	5	24	M6x0,75	5			on request
24076-008	A	8	52	25	M6	8	-	-	38	-	-	32	17	26	23	7	26	M8x1	7,5			on request
24076-010	B	10	60	34	M6	10	5,5	15	46	6	13	39	22	32,5	25	5	29	M10x1	5			on request
24076-012	B	12	60	35	M6	12	5,5	18	46	6	13	43	25	35	25	5	29	M12x1	5			on request
24076-015	B	15	70	40	M6	15	5,5	18	54	6	15	48	28	38	27	9	32	M15x1	6			on request
24076-017	B	17	86	50	M8	17	6,6	28	68	8	19	64	39	55	35	8	44	M17x1	7			on request
24076-020	B	20	88	52	M8	20	6,6	22	70	8	19	60	34	50	35	8	43	M20x1	8			on request

	- 6500 7000 7500 13000 16100	- 2800 3100 3500 5900 8400	- 95 102 114 120 145				Reset
Order No.	Dynamic load rating N	Static load rating N	Stiffness K (N/µm)	CAD	Acc.	Price	Order
24076-006	-	-	-			on request
24076-008	-	-	-			on request
24076-010	6500	2800	95			on request
24076-012	7000	3100	102			on request
24076-015	7500	3500	114			on request
24076-017	13000	5900	120			on request
24076-020	16100	8400	145			on request
