        Ball screw linear actuators rolled, with screw-in cylinder nut

Item description/product images

DescriptionMaterial:Spindle steel 1.1213.
Nut steel 1.3505.
Wiper plastic.Version:Spindle rolled, induction hardened to 62 ±2 HRC and polished.
Nut ground, flank induction hardened to 62 ±2 HRC and polished.Note:Ball screw linear actuators with 5 mm or 10 mm pitch gothic arch profile threads. Single-start, right-hand. Ball thread cylinder nuts with ISO 3408 (DIN 69051) screw-in thread.
Manufactured to tolerance class C7 (tolerance ±50 µ / 300 mm). Without pre-load, with axial backlash P0 (max. 0.08 mm).

The screw-in cylinder nut size D=16 has no wiper.On request:We can make ball screw spindles to your design from a detailed drawing.
Max. production lengths 5600 mm.

Other precision classes and preloading are available (see technical information).Attention:The nut must not be removed from the spindle without a mounting aid as the balls will fall out.Drawing reference:

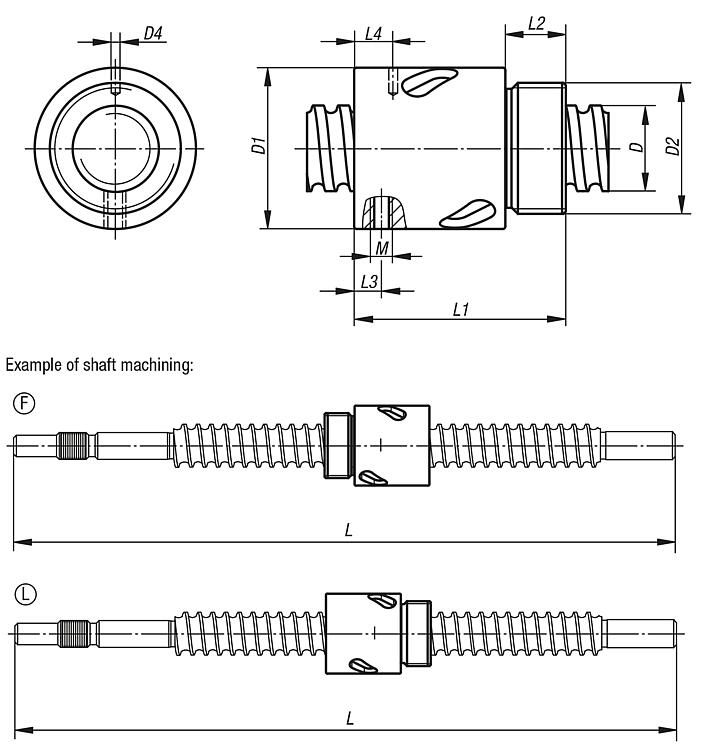

M) lubrication hole

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24060 Ball screw linear actuators rolled, with screw-in cylinder nut

192 kB

Technical information for ball screw linear actuators

119 kB

Drawings

Item selection/filter

Order No.	D	Pitch	D1	D2	D4	L1	L2	L3	L4	M	Ball Ø	No. of support circulations	Dynamic load rating N	Static load rating N	Stiffness K (N/µm)	Price
24060-16052X	16	5	32,5	M26x1,5	3	42	12	-	19,2	-	3,175	4	8880	15250	200	on request
24060-20052X	20	5	38	M35x1,5	3	45	15	-	20,3	-	3,175	4	9990	19950	250	on request
24060-25052X	25	5	43	M40x1,5	3	69	19	8	32	M6	3,175	4	11190	25810	350	on request
