        Fixed bearing units flange version

Item description/product images

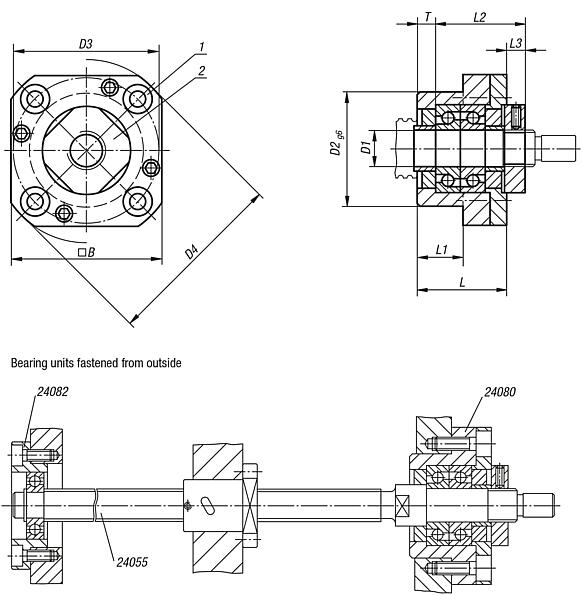

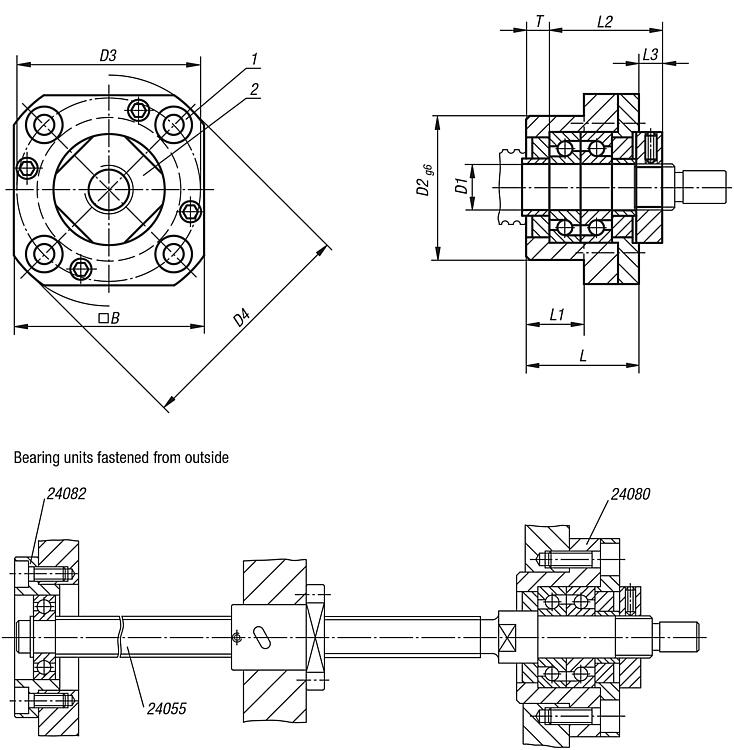

DescriptionMaterial:Housing steel.Version:Housing black oxidised.Note:The fixed bearing unit is matched to the floating bearing unit 24082. The fixed bearing units are composed of a housing with 2 angular contact thrust ball bearings and seals. Preloaded with an initial flange. With backstops and a locknut.Drawing reference:

1) C for socket head screw ISO 4762
2) M slotted nut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 24080 Fixed bearing units flange version

211 kB

Drawings

Overview of items (compressed)

Item selection/filter

	10 12 15 20	42 44 52 68	M4 M5 M6	10 12 15 20	34 36 40 57	42 44 50 70	52 54 63 85	27 32 52	17 30	29,5 36 50	7,5 8 10	M10x1 M12x1 M15x1 M20x1	5 6 10				Reset
Order No.	Size	B	C	D1	D2	D3	D4	L	L1	L2	L3	M	T	CAD	Acc.	Price	Order
24080-010	10	42	M4	10	34	42	52	27	17	29,5	7,5	M10x1	5			on request
24080-012	12	44	M4	12	36	44	54	27	17	29,5	7,5	M12x1	5			on request
24080-015	15	52	M5	15	40	50	63	32	17	36	8	M15x1	6			on request
24080-020	20	68	M6	20	57	70	85	52	30	50	10	M20x1	10			on request

	6500 7000 7500 17500	2800 3100 3500 8400	95 102 114 145				Reset
Order No.	Dynamic load rating N	Static load rating N	Stiffness K (N/µm)	CAD	Acc.	Price	Order
24080-010	6500	2800	95			on request
24080-012	7000	3100	102			on request
24080-015	7500	3500	114			on request
24080-020	17500	8400	145			on request
