Oil level sight glasses domed

28008

Oil level sight glasses domed

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Oil level sight glasses domed

Item description/product images

DescriptionMaterial:Housing in thermoplastic polyamide.Version:Housing, transparent, high mechanical stability, non-ageing,
temperature resistant with oil up to 100 °C,
with water up to 70 °C.
Resistant to solvents but not alcohol.
Flat seal, asbestos-free.On request:Rubber gasket (NBR).Drawing reference:

1) flat seal

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28008 Oil level sight glasses domed

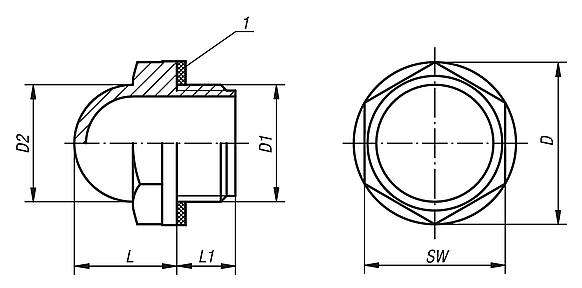

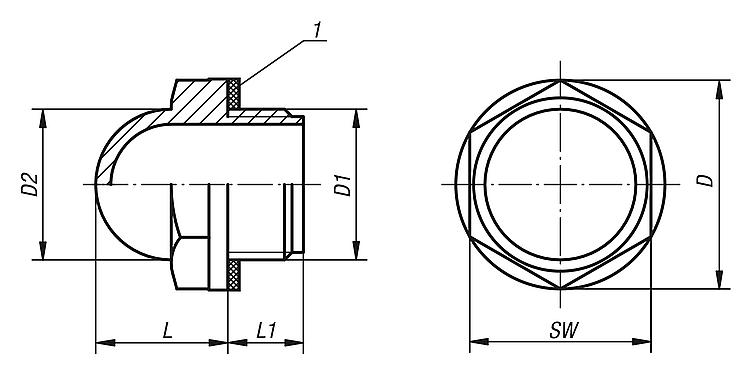

Drawings

Oil level sight glasses domed

Item selection/filter

Order No.	D	D1	D2	L	L1	SW	Tightening torque max. Nm	CAD	Acc.	Price	Order
28008-22038	22	G3/8	15	14	10	19	8			on request
28008-28012	28	G1/2	20	17	10	24	12			on request
28008-35034	35	G3/4	25	20	10	30	16			on request
28008-42100	42	G1	31	24	10,5	36	20			on request
