Oil level sight glasses, aluminium

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Oil level sight glasses, aluminium

Item description/product images

DescriptionMaterial:Housing in aluminium.
Reflector in aluminium or white plastic.
Polyamide viewing lens.Version:Transparent viewing lens,
temperature-resistant with oil up to 100 °C,
with water up to 70 °C.

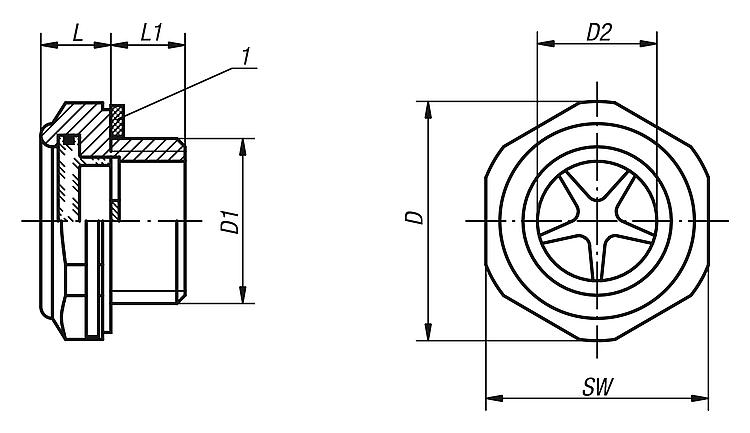

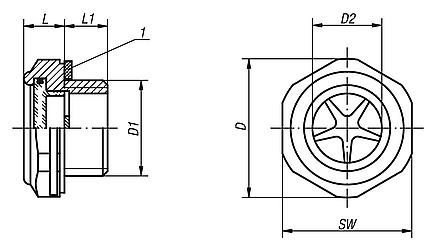

Flat seal, asbestos-free.Note:The G3/8" and M18x1.5 versions have a white plastic reflector.Drawing reference:

1) flat seal

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28010 Oil level sight glasses aluminium

188 kB

Drawings

Item selection/filter

	20 24,1 29,7 35,2 44,1 55 24,5 29,5	G1/4 G3/8 G1/2 G3/4 G1 G1 1/4 M18X1,5 M22X1,5	11 12,7 15 21,9 25,1 34 13 16	8 9,5 10 11 13,5	8 9 11 12	17 22 27 32 40 50	4 10 15 22 - 12	10				Reset
Order No.	D	D1	D2	L	L1	SW	Tightening torque max. Nm	Pressure load max. bar	CAD	Acc.	Price	Order
28010-20014	20	G1/4	11	8	8	17	4	10			on request
28010-24038	24,1	G3/8	12,7	9,5	9	22	10	10			on request
28010-29012	29,7	G1/2	15	10	9	27	15	10			on request
28010-36034	35,2	G3/4	21,9	10	11	32	22	10			on request
28010-42100	44,1	G1	25,1	11	11	40	-	10			on request
28010-52114	55	G1 1/4	34	13,5	12	50	-	10			on request
28010-241815	24,5	M18X1,5	13	10	9	22	12	10			on request
28010-292215	29,5	M22X1,5	16	10	9	27	15	10			on request
