Press-in plugs

28022

Press-in plugs

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Press-in plugs

Item description/product images

Show/filter all items

DescriptionMaterial:Housing and cap thermoplastic polyamide 66.
Air filter polyurethane (PU foam).
O-ring rubber (NBR).Version:Housing black.
Cap red.

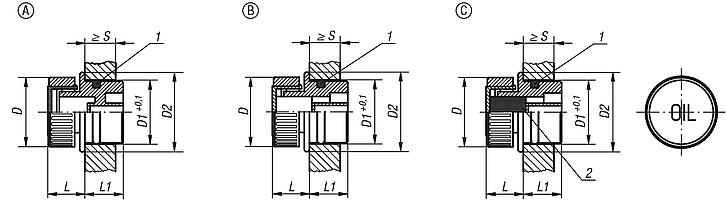

Filter mesh 50 µm.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:

Form A: without vent
Form B: with vent

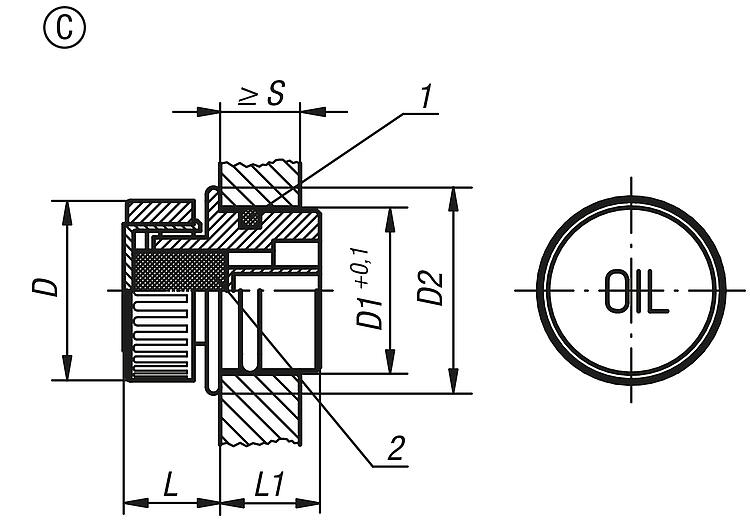

Form C: with vent and air filter

1) O-ring
2) air filter Form C only

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28022 Press-in plugs

Drawings (total overview)

Press-in plugs

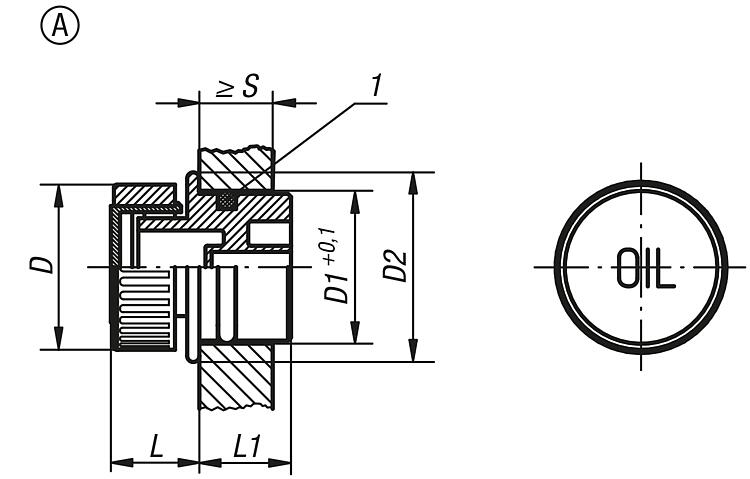

Press-in plugs Form A, without vent

More information

Drawings

Press-in plugs Form A, without vent

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28022-13018	A	30	18	23	14	14	8			on request
28022-13020	A	30	20	24	14	15,5	8			on request
28022-13026	A	30	26	30	14	16,5	9,5			on request
28022-13030	A	30	30	34	14	17	9,5			on request

Press-in plugs Form B, with vent

More information

Drawings

Press-in plugs Form B, with vent

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28022-23018	B	30	18	23	14	14	8			on request
28022-23020	B	30	20	24	14	15,5	8			on request
28022-23026	B	30	26	30	14	16,5	9,5			on request
28022-23030	B	30	30	34	14	17	9,5			on request

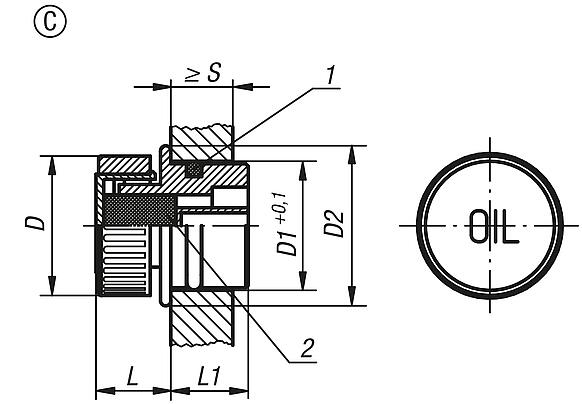

Press-in plugs Form C, with vent and air filter

More information

Drawings

Press-in plugs Form C, with vent and air filter

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28022-33018	C	30	18	23	14	14	8			on request
28022-33020	C	30	20	24	14	15,5	8			on request
28022-33026	C	30	26	30	14	16,5	9,5			on request
28022-33030	C	30	30	34	14	17	9,5			on request
