Screw plugs aluminium

28027

Screw plugs aluminium

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Screw plugs aluminium

Item description/product images

DescriptionMaterial:Aluminium.Version:Bright. Flat seal asbestos-free.On request:Cap marked OIL.Drawing reference:

1) flat seal

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28027 Screw plugs aluminium

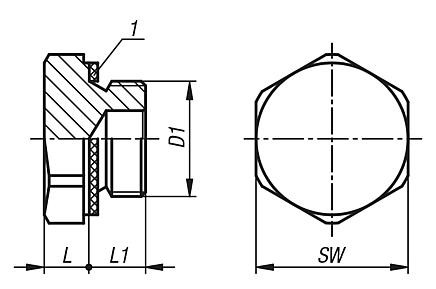

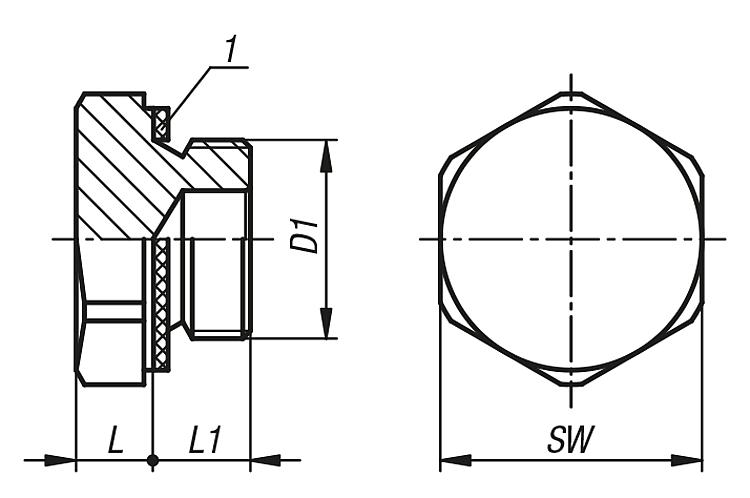

Drawings

Screw plugs aluminium

Item selection/filter

	M10X1 M12X1,5 M14X1,5 M16X1,5 M18X1,5 M20X1,5 G1/4 G3/8 G1/2 G3/4 G1	5 6 7 8	8 10 14	14 17 22 24 19 27 34 40				Reset
Order No.	D1	L	L1	SW	CAD	Acc.	Price	Order
28027-141010	M10X1	5	8	14			on request
28027-171215	M12X1,5	6	8	17			on request
28027-171415	M14X1,5	6	8	17			on request
28027-221615	M16X1,5	7	10	22			on request
28027-221815	M18X1,5	7	10	22			on request
28027-242015	M20X1,5	7	10	24			on request
28027-19014	G1/4	7	10	19			on request
28027-22038	G3/8	7	10	22			on request
28027-27012	G1/2	8	10	27			on request
28027-34034	G3/4	8	10	34			on request
28027-40100	G1	8	14	40			on request
