Item description/product images

DescriptionMaterial:Thermoplast, polyamide 66.

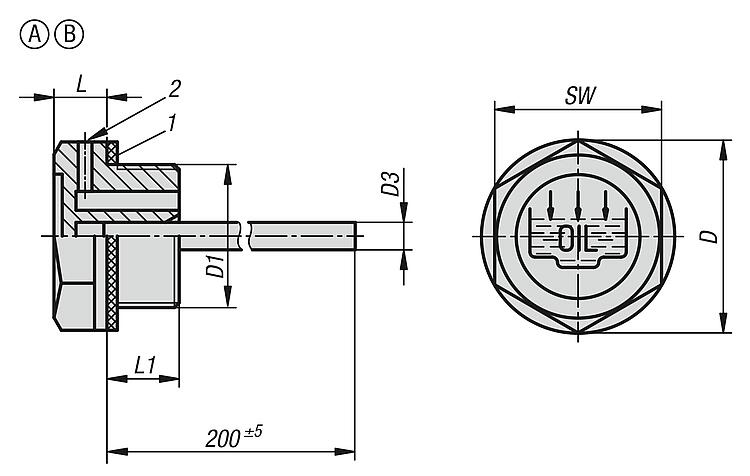

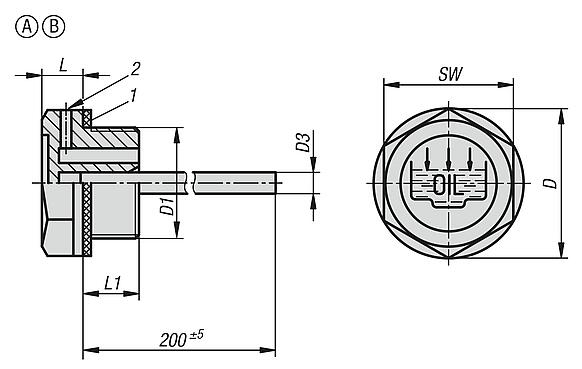

Dipstick steel, zinc phosphated.Version:Flat seal asbestos-free.Note:Form B has a vent hole on the side of the hexagon head with a diameter of between 2 and 3.5 mm, depending on the size of the screw plug.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:

1) flat seal
2) vent hole Form B only

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28029 Screw plugs with dipstick

164 kB

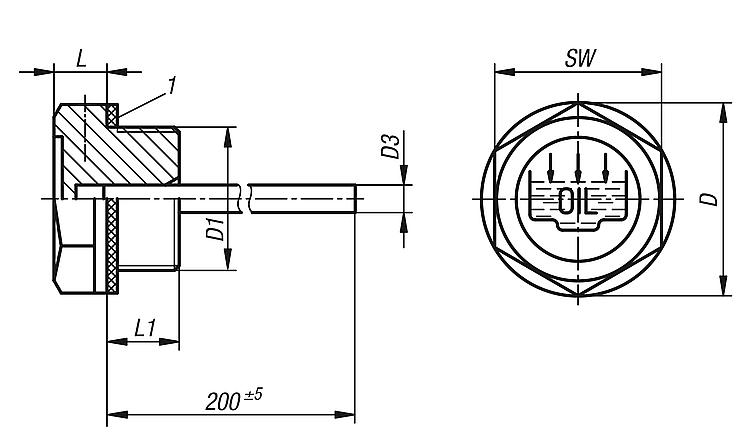

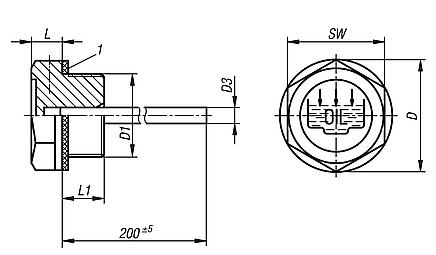

Screw plugs with dipstick, Form A

More information

Drawings

Item selection/filter

	A	19 22 28 34 42 51 21 26	G1/4 G3/8 G1/2 G3/4 G1 G1 1/4 M14X1,5 M16X1,5 M18X1,5 M20X1,5 M22X1,5	4 5	7 7,5 9 10,5 12 8	9 10 11 12 13,5	17 18 24 30 36 42 21				Reset
Order No.	Form	D	D1	D3	L	L1	SW	CAD	Acc.	Price	Order
28029-119014	A	19	G1/4	4	7	9	17			on request
28029-122038	A	22	G3/8	4	7,5	10	18			on request
28029-128012	A	28	G1/2	4	7,5	11	24			on request
28029-134034	A	34	G3/4	5	9	11	30			on request
28029-142100	A	42	G1	5	10,5	12	36			on request
28029-151114	A	51	G1 1/4	5	12	13,5	42			on request
28029-1191415	A	19	M14X1,5	4	7	9	17			on request
28029-1211615	A	21	M16X1,5	4	7,5	10	18			on request
28029-1261815	A	26	M18X1,5	4	7,5	10	21			on request
28029-1282015	A	28	M20X1,5	4	8	10	24			on request
28029-1282215	A	28	M22X1,5	4	8	11	24			on request

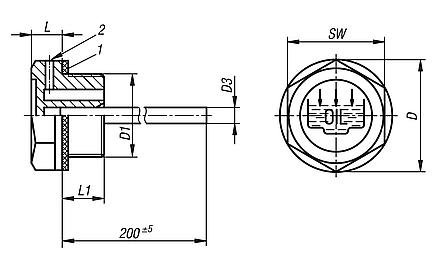

Screw plugs with dipstick, Form B

More information

Drawings

Item selection/filter

	B	19 22 28 34 42 51 21 26	G1/4 G3/8 G1/2 G3/4 G1 G1 1/4 M14X1,5 M16X1,5 M18X1,5 M20X1,5	4 5	7 7,5 9 10,5 12 8	9 10 11 12 13,5	17 18 24 30 36 42 21				Reset
Order No.	Form	D	D1	D3	L	L1	SW	CAD	Acc.	Price	Order
28029-219014	B	19	G1/4	4	7	9	17			on request
28029-222038	B	22	G3/8	4	7,5	10	18			on request
28029-228012	B	28	G1/2	4	7,5	11	24			on request
28029-234034	B	34	G3/4	5	9	11	30			on request
28029-242100	B	42	G1	5	10,5	12	36			on request
28029-251114	B	51	G1 1/4	5	12	13,5	42			on request
28029-2191415	B	19	M14X1,5	4	7	9	17			on request
28029-2211615	B	21	M16X1,5	4	7,5	10	18			on request
28029-2261815	B	26	M18X1,5	4	7,5	10	21			on request
28029-2282015	B	28	M20X1,5	4	8	10	24			on request
