      - Plugs fill only knurled cap

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoplastic polyamide 66;
O-ring in rubber (NBR)Version:Black.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:

Form A: with fill symbol

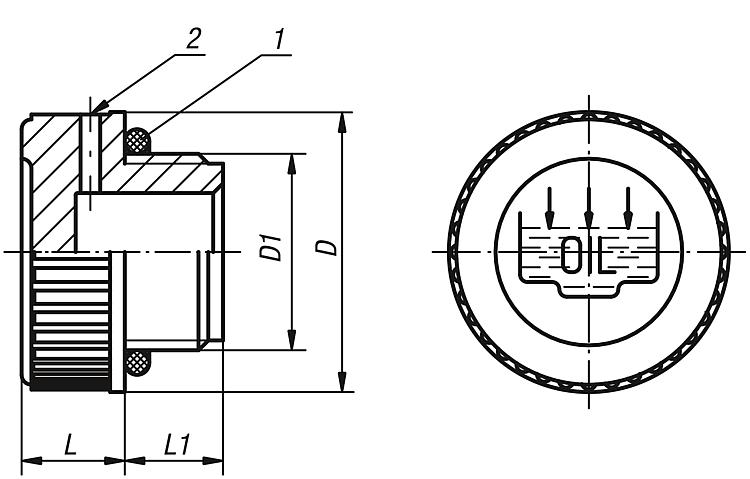

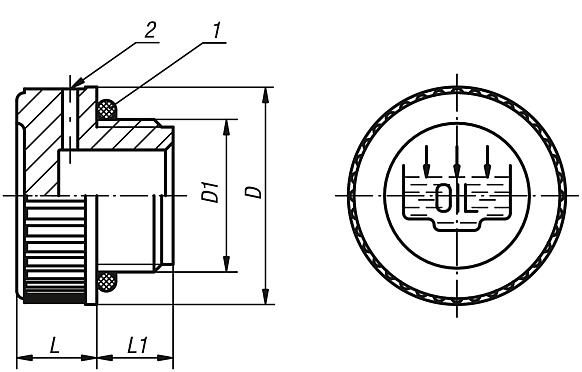

Form B: with fill symbol and vent hole

1) O-ring
2) vent hole only Form B

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28030 Plugs fill only knurled cap

223 kB

Drawings (total overview)

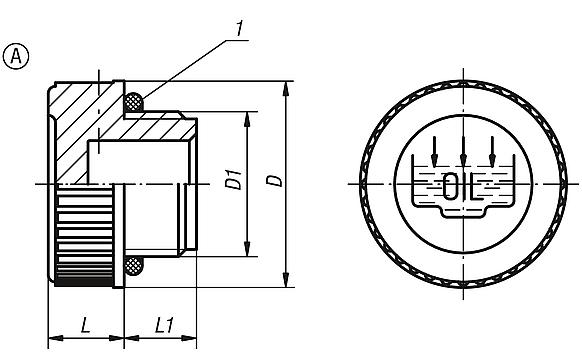

Screw plugs Form A, with fill symbol

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	L	L1	Price
28030-120014	A	20	G1/4	9	9	on request
28030-120038	A	20,5	G3/8	9	10	on request
28030-128012	A	28	G1/2	10,5	10,5	on request
28030-131034	A	31	G3/4	12	11	on request
28030-139100	A	39	G1	12	12	on request
28030-149114	A	49	G1 1/4	13	13,5	on request
28030-155112	A	55	G1 1/2	14,7	14,5	on request
28030-168200	A	68,5	G2	15	16	on request
28030-1201415	A	20	M14X1,5	9	9	on request
28030-1201615	A	20	M16X1,5	9	10	on request
28030-1281815	A	28	M18X1,5	10,5	10	on request
28030-1282015	A	28	M20X1,5	10,5	10	on request
28030-1282215	A	28	M22X1,5	10,5	10	on request

Screw plugs Form B, with fill symbol and vent hole

More information

Drawings

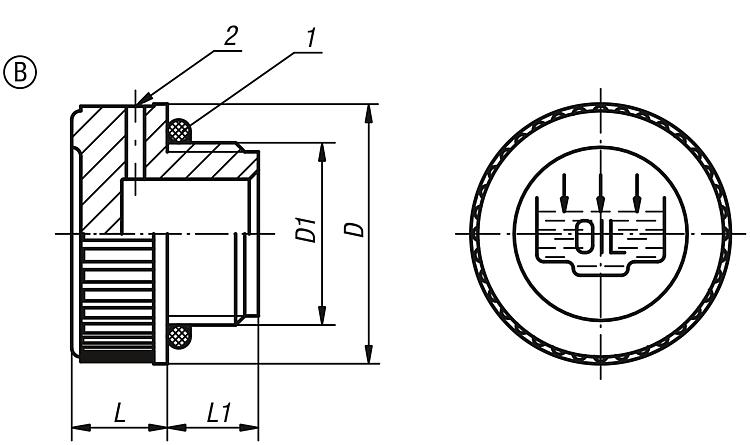

Screw plugs Form B, with fill symbol and vent hole
