Vent screwswith splash guard

28036

Vent screws with splash guard

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Vent screws with splash guard

Item description/product images

DescriptionMaterial:Housing and cap thermoplastic polyamide 66.
Air filter polyurethane (PU foam).
Flat seal NBR, Shore 70.Version:Black housing.
Red cap.

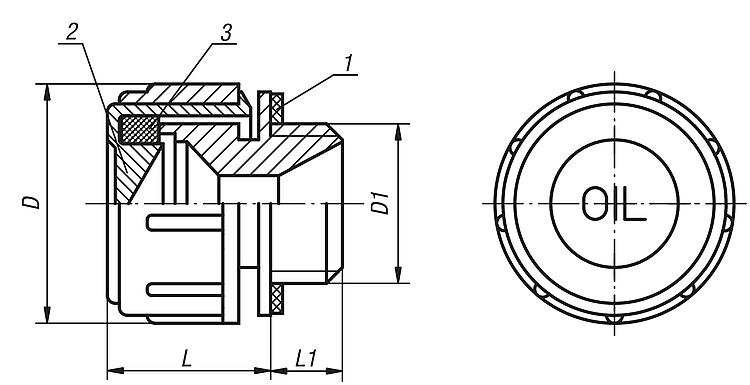

Filter mesh 40 µm.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:

1) flat seal
2) cap
3) air filter

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28036 Vent screwswith splash guard

Drawings

Vent screwswith splash guard

Vent screwswith splash guard

Item selection/filter

Order No.	D	D1	L	L1	CAD	Acc.	Price	Order
28036-30014	30	G1/4	21	10			on request
28036-30038	30	G3/8	21	10			on request
28036-30012	30	G1/2	21	10			on request
