Vent screws with check valve

28038

Vent screws with check valve

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Vent screws with check valve

Item description/product images

DescriptionMaterial:Housing and cap thermoplastic polyamide 66.
Spring stainless steel.
Lift disc and flat seal rubber (NBR).Version:Housing black.

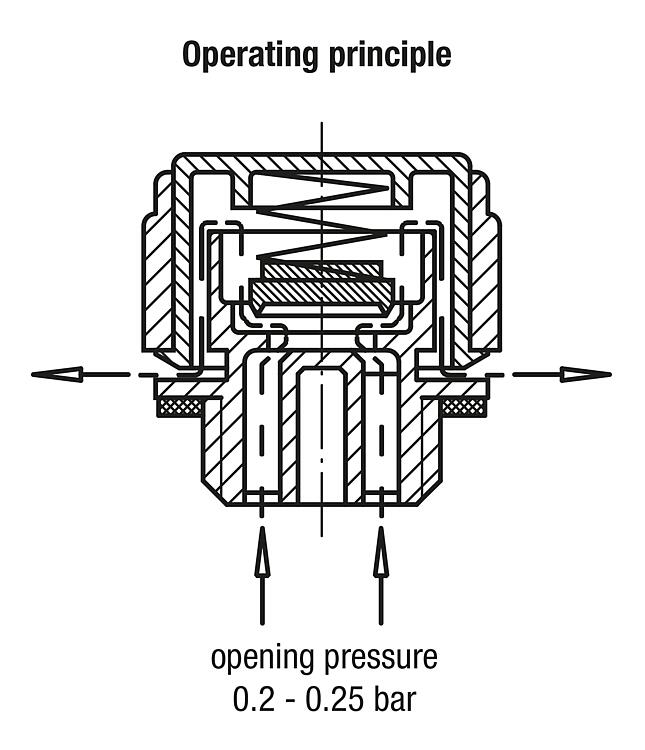

Cap red.Note:Opening pressure 0.20 – 0.25 bar.Temperature range:Temperature resistant with oil up to 100°C.Drawing reference:

1) flat seal
2) lift disc
3) cap

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28038 Vent screws with check valve

Drawings

Vent screws with check valve

Item selection/filter

Order No.	D	D1	L	L1	CAD	Acc.	Price	Order
28038-30014	30	G1/4	21	10			on request
28038-30038	30	G3/8	21	10			on request
28038-30012	30	G1/2	21	10			on request
