Press-in plugs with dipstick

28048

Press-in plugs with dipstick

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Press-in plugs with dipstick

Item description/product images

Show/filter all items

DescriptionMaterial:Housing and cap thermoplastic polyamide 66.
Air filter polyurethane (PU foam).
Dipstick zinc.
O-ring NBR, Shore 70.Version:Housing black.
Cap red.
Filter mesh 50 µm.
Dipstick phosphated.Temperature range:Temperature resistant with oil up to 100°C.On request:Min-Max markings.Drawing reference:

Form A: without vent
Form B: with vent
Form C: with vent and air filter

1) O-ring
2) air filter Form C only

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28048 Press-in plugs with dipstick

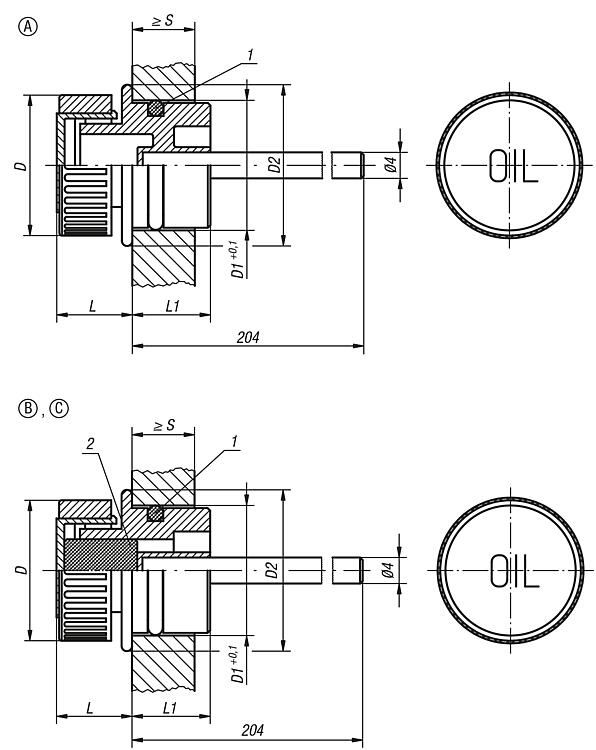

Drawings (total overview)

Press-in plugs with dipstick

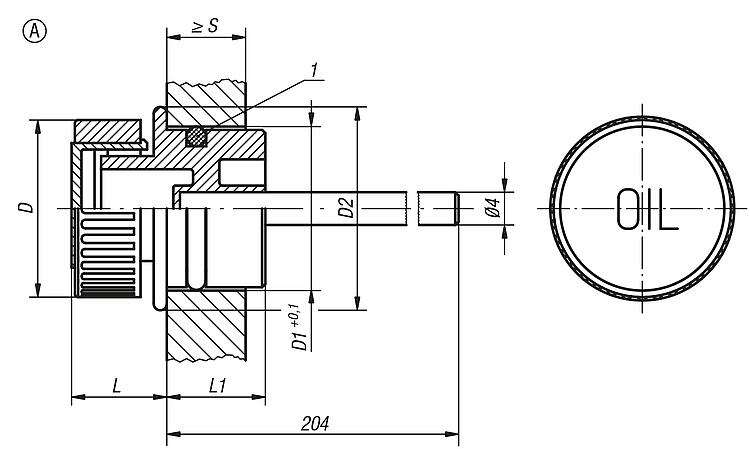

Press-in plugs with dipstick, Form A, without vent

More information

Drawings

Press-in plugs with dipstick, Form A, without vent

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28048-13018	A	30	18	23	14	14	8			on request

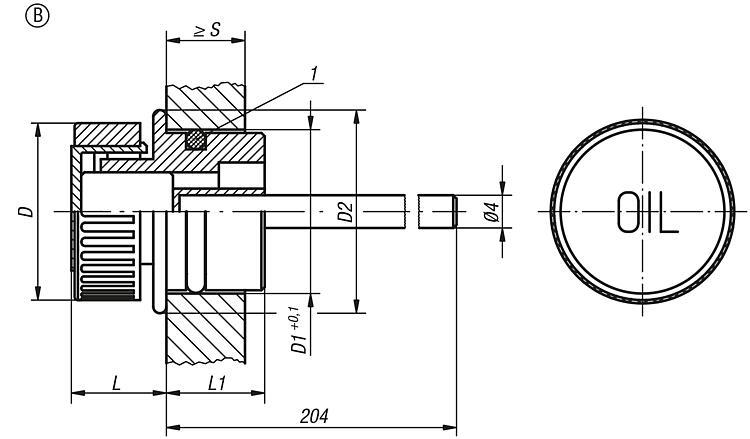

Press-in plugs with dipstick, Form B, with vent

More information

Drawings

Press-in plugs with dipstick, Form B, with vent

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28048-23018	B	30	18	23	14	14	8			on request

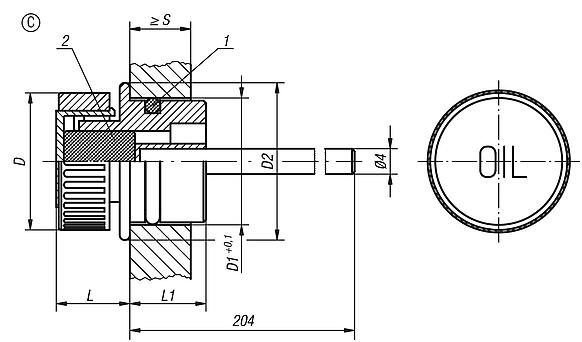

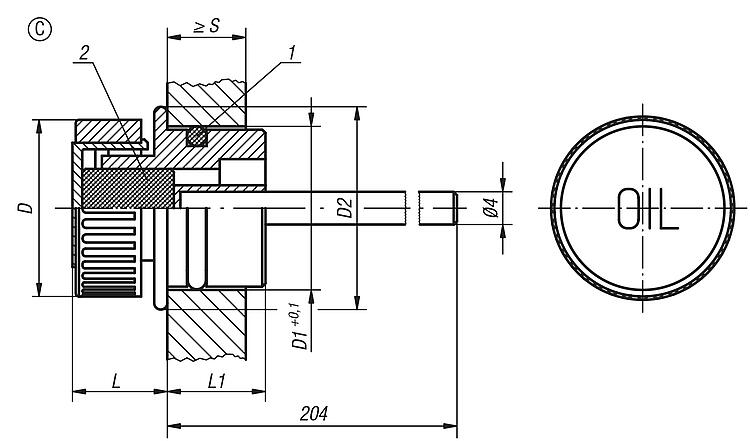

Press-in plugs with dipstick Form C, with vent and air filter

More information

Drawings

Press-in plugs with dipstick Form C, with vent and air filter

Item selection/filter

Order No.	Form	D	D1	D2	L	L1	S min.	CAD	Acc.	Price	Order
28048-33018	C	30	18	23	14	14	8			on request
