DescriptionMaterial:PVC.Version:Black.Note:The edge protection profiles are used to cover and decorate the sharp edges of cut plate so that no additional processing is required. Assembly:Easy, quick and smooth assembly. The edge protection profile is easy to push on by hand, and remains in place even on radii or bends. No adhesive or fastening material required.On request:Other lengths.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

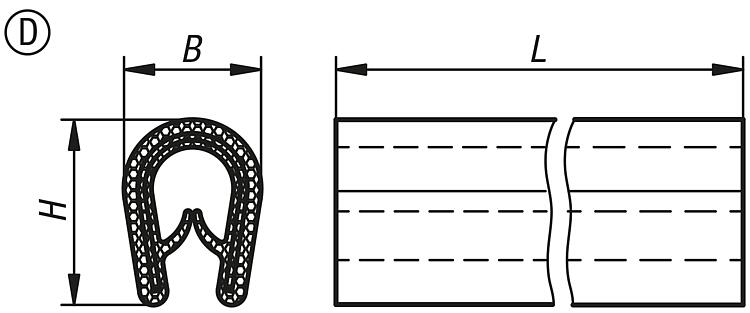

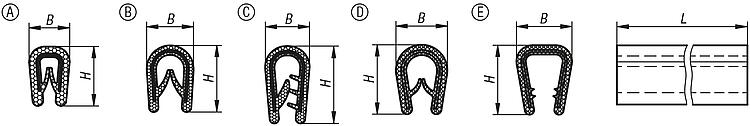

Drawings (total overview) |
| Order No. | Form | L | Clamping range

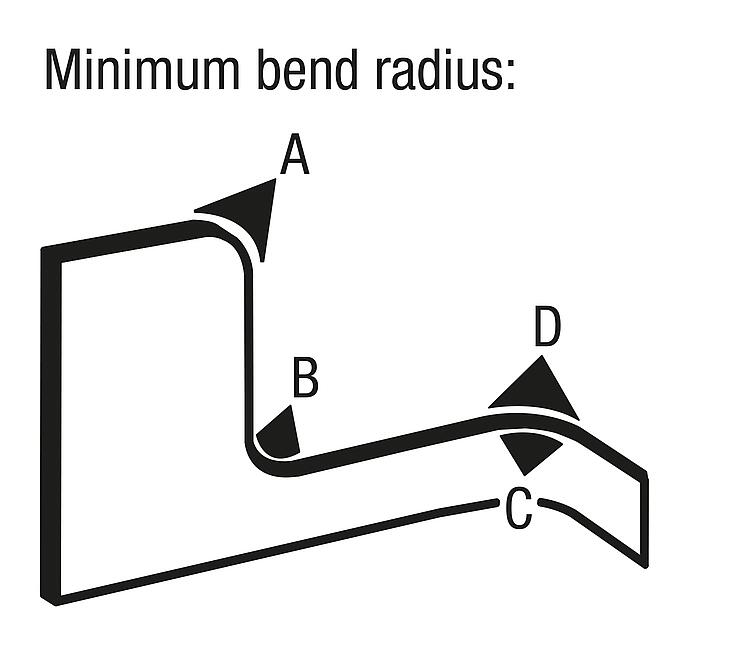

mm | Minimum bend radius
mm | B
| H | CAD | Acc. | Price | Order |
|---|
| 96520-010X2000 | A | 2000 | 1,0-2,0 | A=15 B=15 C=10 D=10 | 6,5 | 10 |  | | on request | | | 96520-010X5000 | A | 5000 | 1,0-2,0 | A=15 B=15 C=10 D=10 | 6,5 | 10 | | | on request | | | 96520-010X10000 | A | 10000 | 1,0-2,0 | A=15 B=15 C=10 D=10 | 6,5 | 10 | | | on request | | | 96520-010X20000 | A | 20000 | 1,0-2,0 | A=15 B=15 C=10 D=10 | 6,5 | 10 | | | on request | | | 96520-010X50000 | A | 50000 | 1,0-2,0 | A=15 B=15 C=10 D=10 | 6,5 | 10 | | | on request | |
|
| Order No. | Form | L | Clamping range
mm | Minimum bend radius
mm | B
| H | CAD | Acc. | Price | Order |
|---|
| 96520-114X2000 | B | 2000 | 1,0-4,0 | A=30 B=20 C=20 D=20 | 10 | 14,5 | | | on request | | | 96520-114X5000 | B | 5000 | 1,0-4,0 | A=30 B=20 C=20 D=20 | 10 | 14,5 | | | on request | | | 96520-114X10000 | B | 10000 | 1,0-4,0 | A=30 B=20 C=20 D=20 | 10 | 14,5 | | | on request | | | 96520-114X20000 | B | 20000 | 1,0-4,0 | A=30 B=20 C=20 D=20 | 10 | 14,5 | | | on request | | | 96520-114X50000 | B | 50000 | 1,0-4,0 | A=30 B=20 C=20 D=20 | 10 | 14,5 | | | on request | |
|
| Order No. | Form | L | Clamping range
mm | Minimum bend radius
mm | B
| H | CAD | Acc. | Price | Order |
|---|
| 96520-217X2000 | C | 2000 | 4,0-6,0 | A=50 B=40 C=30 D=30 | 11 | 15,8 | | | on request | | | 96520-217X5000 | C | 5000 | 4,0-6,0 | A=50 B=40 C=30 D=30 | 11 | 15,8 | | | on request | | | 96520-217X10000 | C | 10000 | 4,0-6,0 | A=50 B=40 C=30 D=30 | 11 | 15,8 | | | on request | | | 96520-217X20000 | C | 20000 | 4,0-6,0 | A=50 B=40 C=30 D=30 | 11 | 15,8 | | | on request | | | 96520-217X50000 | C | 50000 | 4,0-6,0 | A=50 B=40 C=30 D=30 | 11 | 15,8 | | | on request | |
|
| Order No. | Form | L | Clamping range
mm | Minimum bend radius
mm | B
| H | CAD | Acc. | Price | Order |
|---|
| 96520-308X2000 | D | 2000 | 0,8-1,5 | A=10 B=10 C=10 D=10 | 6 | 8 | | | on request | | | 96520-308X5000 | D | 5000 | 0,8-1,5 | A=10 B=10 C=10 D=10 | 6 | 8 | | | on request | | | 96520-308X10000 | D | 10000 | 0,8-1,5 | A=10 B=10 C=10 D=10 | 6 | 8 | | | on request | | | 96520-308X20000 | D | 20000 | 0,8-1,5 | A=10 B=10 C=10 D=10 | 6 | 8 | | | on request | | | 96520-308X50000 | D | 50000 | 0,8-1,5 | A=10 B=10 C=10 D=10 | 6 | 8 | | | on request | |
|
| Order No. | Form | L | Clamping range
mm | Minimum bend radius
mm | B
| H | CAD | Acc. | Price | Order |
|---|
| 96520-415X2000 | E | 2000 | 6,0-8,0 | A=50 B=50 C=50 D=50 | 12 | 15 | | | on request | | | 96520-415X5000 | E | 5000 | 6,0-8,0 | A=50 B=50 C=50 D=50 | 12 | 15 | | | on request | | | 96520-415X10000 | E | 10000 | 6,0-8,0 | A=50 B=50 C=50 D=50 | 12 | 15 | | | on request | | | 96520-415X20000 | E | 20000 | 6,0-8,0 | A=50 B=50 C=50 D=50 | 12 | 15 | | | on request | | | 96520-415X50000 | E | 50000 | 6,0-8,0 | A=50 B=50 C=50 D=50 | 12 | 15 | | | on request | |
|
