Extension pieces

Item description/product images

DescriptionMaterial:Steel.Version:Trivalent blue passivated.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

	M5 M6 M8 M10 M12	9,2 11,5 15 18,5 20,8	25 30 35 40 50 60 90 45 55 65 95 115	8 10 13 16 18	8 9 12 15 18				Reset

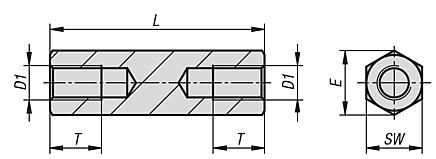

Order No.	D1	E	L	SW	T	CAD	Acc.	Price	Order
02035-10-205025	M5	9,2	25	8	8			on request
02035-10-205030	M5	9,2	30	8	8			on request
02035-10-205035	M5	9,2	35	8	8			on request
02035-10-206030	M6	11,5	30	10	9			on request
02035-10-206035	M6	11,5	35	10	9			on request
02035-10-206040	M6	11,5	40	10	9			on request
02035-10-206050	M6	11,5	50	10	9			on request
02035-10-206060	M6	11,5	60	10	9			on request
02035-10-208030	M8	15	30	13	12			on request
02035-10-208035	M8	15	35	13	12			on request
02035-10-208040	M8	15	40	13	12			on request
02035-10-208050	M8	15	50	13	12			on request
02035-10-208060	M8	15	60	13	12			on request
02035-10-208090	M8	15	90	13	12			on request
02035-10-210040	M10	18,5	40	16	15			on request
02035-10-210045	M10	18,5	45	16	15			on request
02035-10-210055	M10	18,5	55	16	15			on request
02035-10-210065	M10	18,5	65	16	15			on request
02035-10-210095	M10	18,5	95	16	15			on request
02035-10-210115	M10	18,5	115	16	15			on request
02035-10-212040	M12	20,8	40	18	18			on request
02035-10-212045	M12	20,8	45	18	18			on request
02035-10-212055	M12	20,8	55	18	18			on request
02035-10-212065	M12	20,8	65	18	18			on request
02035-10-212095	M12	20,8	95	18	18			on request
02035-10-212115	M12	20,8	115	18	18			on request
